12

Genie Superlift Advantage

Part No. 97550

Operator's Manual

Third Edition • Third Printing

FUNCTION TESTS

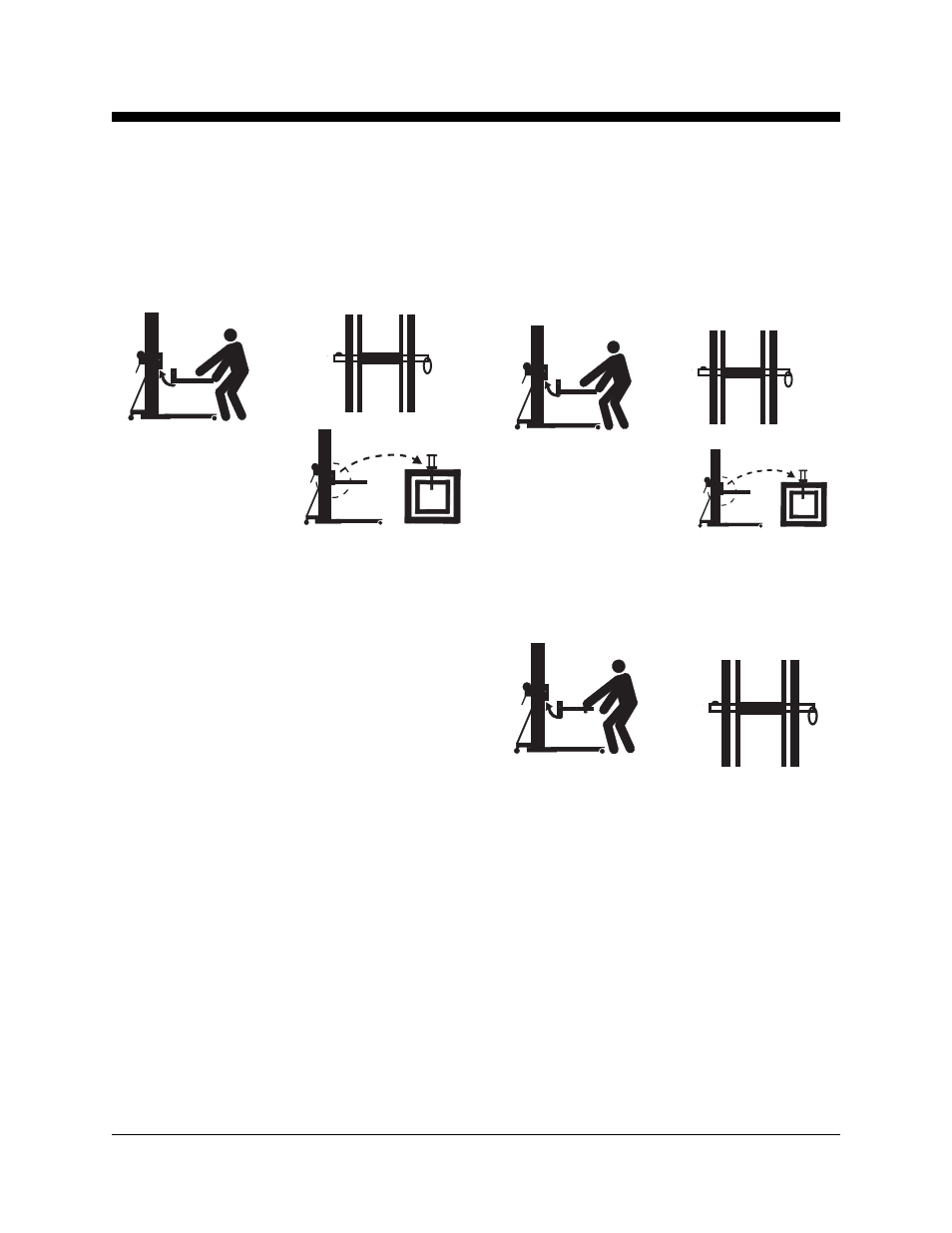

Flat Forks

1 Place the fork mounting bracket inside the

carriage.

2 Insert the retaining pin.

3 Adjust the forks to the

desired width and be
sure the snap pin is
properly inserted in
each fork.

Standard Boom

1 Place the boom inside the carriage.

2 Insert the retaining pin.

3 Attach the lifting shackle to the desired hole on

the boom.

Adjustable Forks and Adjustable Fork Options

1 Place the forks inside the carriage.

2 Insert the retaining pin.

3 Adjust the forks to

the desired width and
be sure the snap pin
is properly inserted in
each fork.

Load Platform with Adjustable Forks

1 Adjust the forks to a width of 23 inches /

58.4 cm.

2 Place the load platform on the adjustable forks.

Pipe Cradle

1 Attach the pipe cradles to the forks. Be sure the

fasteners are tightened.

Fork Extensions

1 Slide each extension tube onto the forks.

2 Adjust to the desired position and insert the

retaining pins.
