Part No. 97550 Genie Superlift Advantage 11
Operator's Manual Third Edition • Third Printing
Function Tests
1 Select a test area that is firm, level and free of
obstructions.
Setup
Machines Without Stabilizers

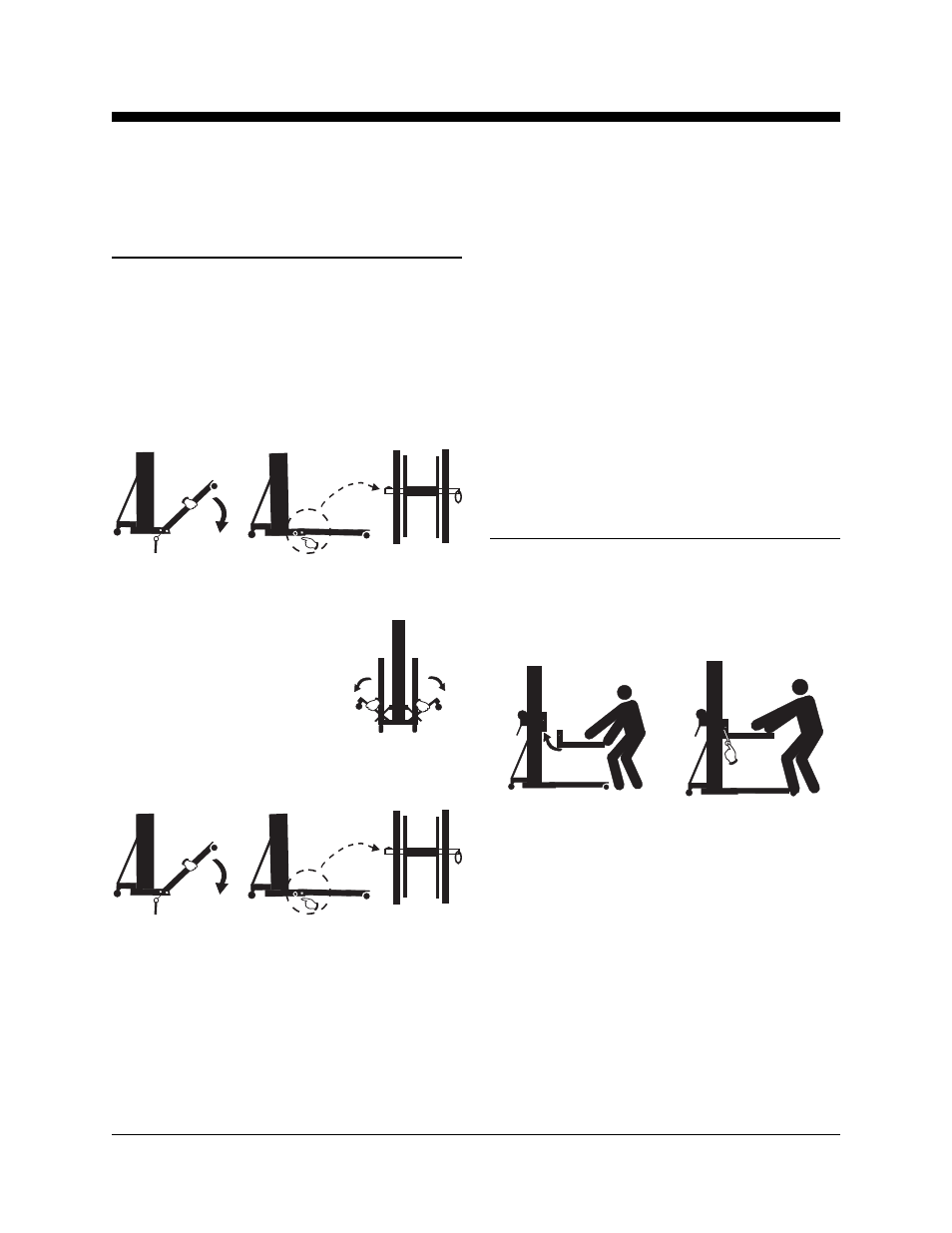

1 Remove the leg retainer pin and lower the leg to
the down position. Insert the pin through the leg
and base.
Machines With Stabilizers
1 Push down to release the
stabilizer lock plates and
lower the stabilizers until the
casters are in full contact
with the ground. Be sure the
stabilizers are locked in the
down position.
2 Remove the leg retainer pin
and lower the leg to the down position. Insert
the pin through the leg and base.
FUNCTION TESTS
Straddle Base
1 Place a 2 inch / 5.1 cm block under one leg
swivel caster.
2 Loosen the arm lock knob on the opposite
adjustable arm. Push down on the lock knob.
3 Position the adjustable arm to the desired width.
4 Tighten the arm lock knob while supporting the
leg assembly.
5 Repeat steps 1-4 for the other arm.
Load Handling Attachments
Standard Forks and Standard Fork Options
1 Place the forks inside the carriage.
2 Insert the retaining pin.
Load Platform with Standard Forks
1 Place the load platform on the standard forks.
Pipe Cradle
1 Attach the pipe cradles to the forks. Be sure the
fasteners are tightened.
Fork Extensions
1 Slide each extension tube onto the fork.
2 Adjust to the desired position and insert the
retaining pins.
