Replacing the SCSI backplane
www.gateway.com
10

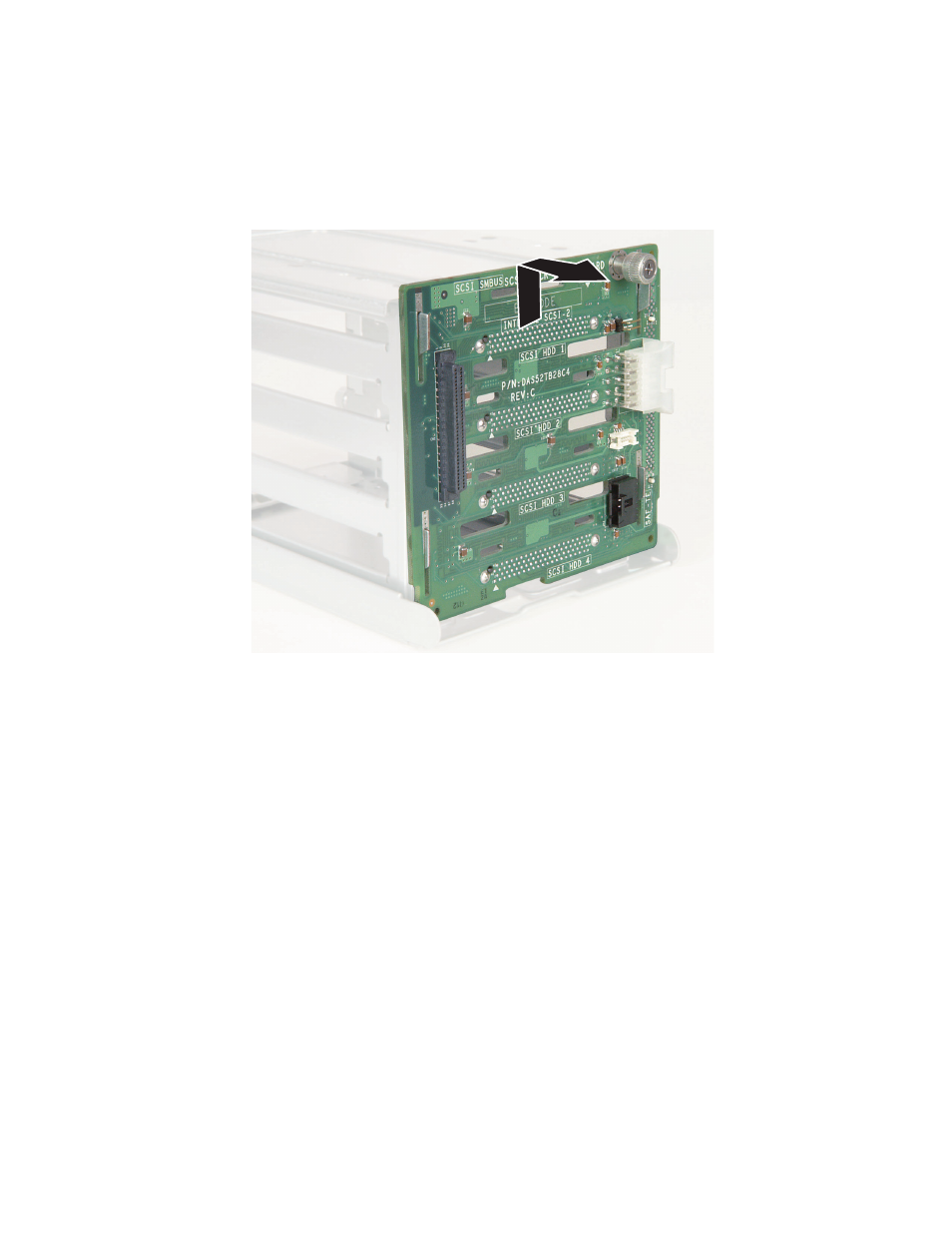

Slide the backplane up slightly, then lift it away from the hot-swap cage.
11
Place the new backplane onto the hot-swap cage, then tighten the
thumbscrew.
12
Slide the hot-swap cage part-way into the hot-swap bay. Make sure that
the side of the cage marked “Top” is oriented toward the top of the server
case.
13
Reconnect the power, SCSI, and manageability cables to the backplane.
14
Slide the hot-swap cage all the way into the hot-swap bay, then tighten
the four thumbscrews.
