19
Connecting a TV
www.gateway.com
Using component video

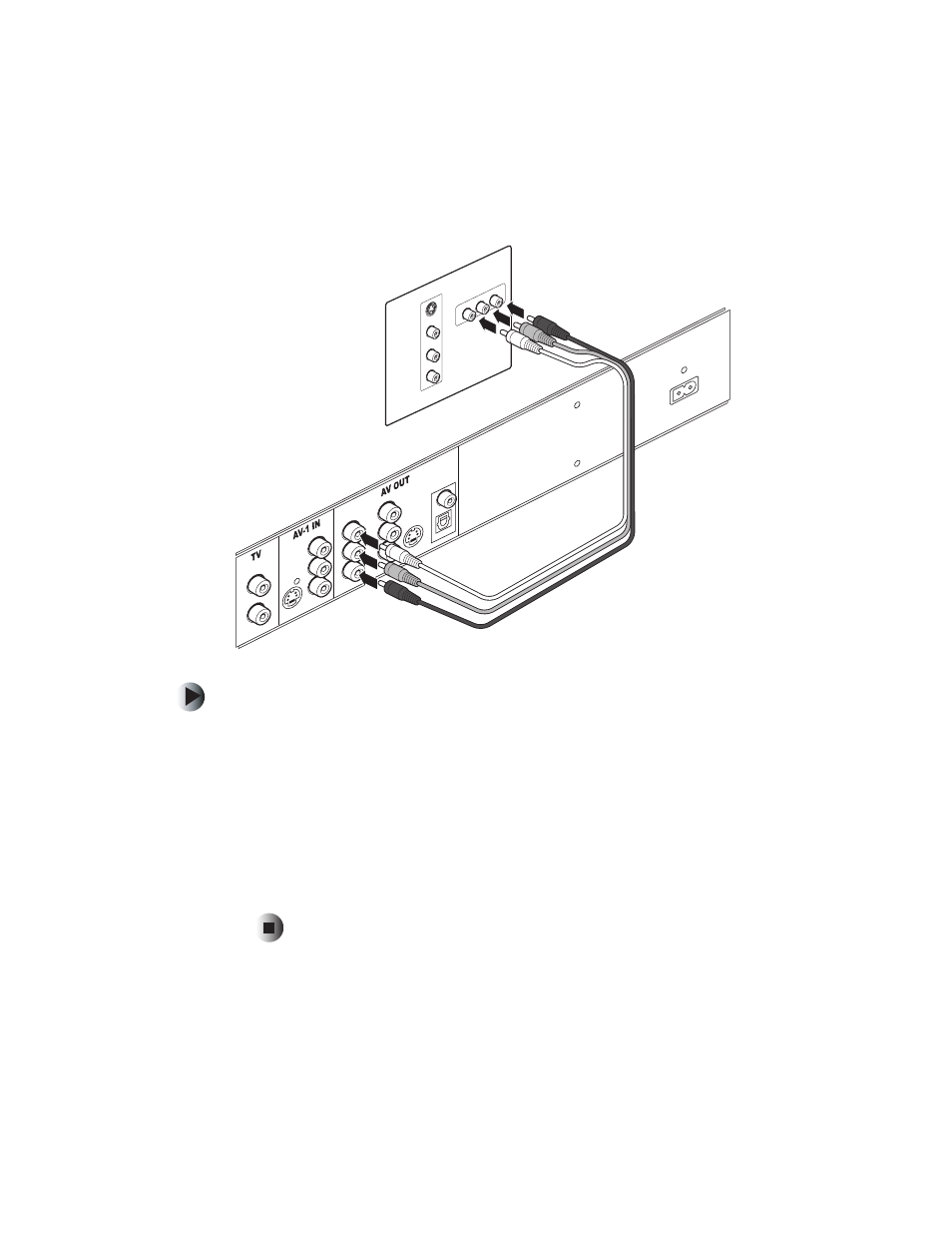

To connect a TV using component video:
1
Connect the green component Y jack on the back of your DVD recorder
to the green component Y1 jack on the back of your TV.
2
Connect the red component C
R
jack on the back of your DVD recorder to
the red P
R
1/C
R
1 jack on the back of your TV.
3
Connect the blue component C
B
jack on the back of your DVD recorder
to the blue component P
B
1/C
B
1 jack on the back of your TV.
4
Connect the audio. For more information, see “Connecting audio
components” on page 20.
OPTICAL
OUT
IN
Pb
Y
Pr
S-V ID EO
VID EO O UT
R
L
S-V ID EO
VID EO IN
R
L
RIGHT
LEFT
AU D
IO
VIDEO
S-VIDEO
IN
Y
P B
P R
COMPONENT IN
AV
COAXIAL
