TESTING & TROUBLESHOOTING

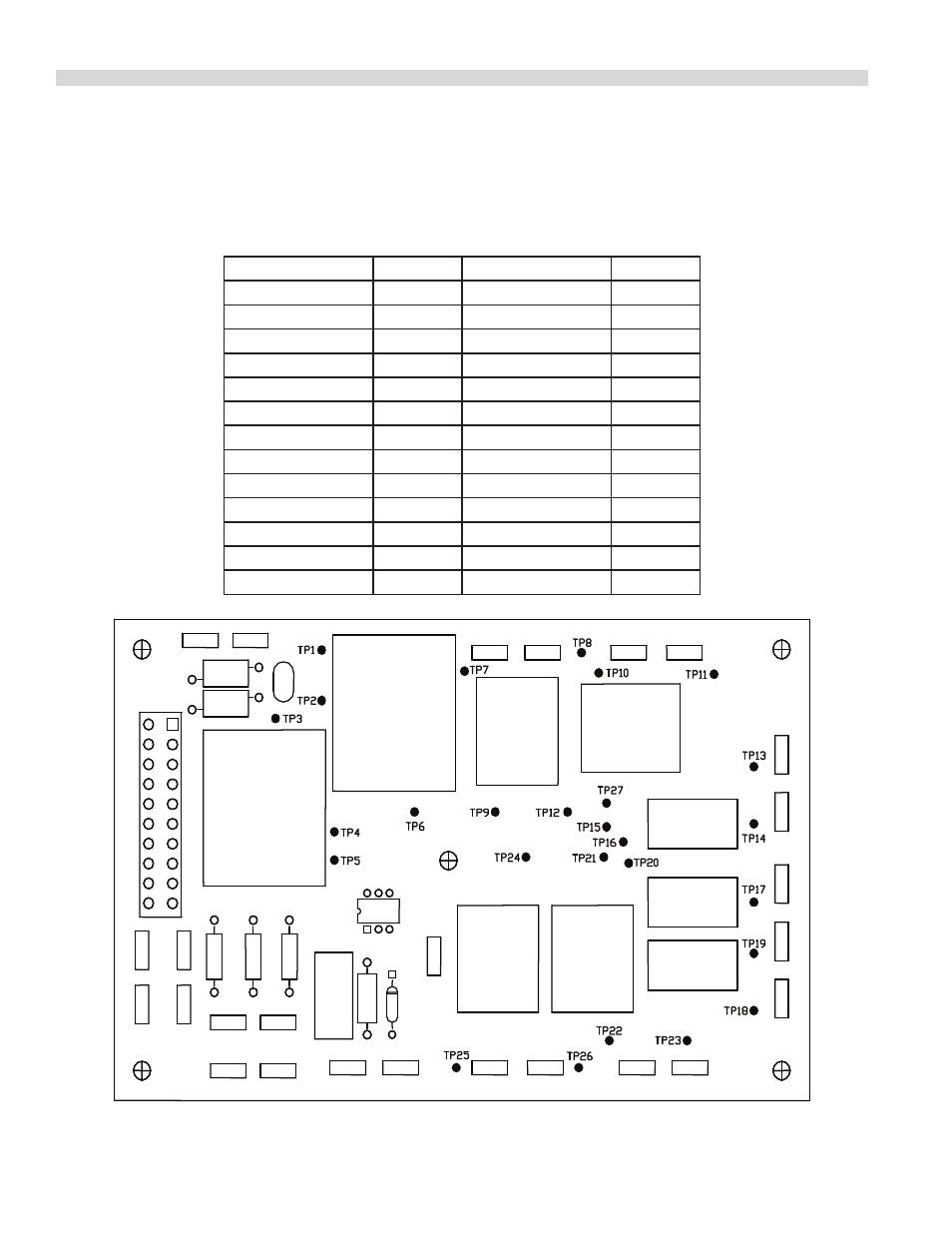

Test Points
To aid in the troubleshooting of the control system there will be test points available for all relay board circuits . Used in
conjunction with step by step instructions in the service manual, a technician will be able to quickly and easily trace a circuit
to find a failure . Each circuit on the relay board will provide a solder filled plated through hole accessible to a DVOM probe tip .
This will allow the technician to probe a circuit without disassembly .
Function
Test Point
Function
Test Point
High Fan Out
TP1
Fan
TP14
High Fan In
TP2
Fan
TP15
Low Fan In
TP3
Door Lock
TP16
Low Fan
TP4
Door Lock
TP17
Low Fan
TP5
Door Lock
TP18
High Fan
TP6
Door Lock
TP19
Light
TP7
Door Lock
TP20
Light
TP8
Hood Interlock
TP21
Light
TP9
Hood Interlock
TP22
Heat
TP10
Hood Interlock
TP23
Heat
TP11
Moisture
TP24
Heat
TP12
Moisture
TP25
Fan
TP13
Moisture
TP26
