TESTING & TROUBLESHOOTING

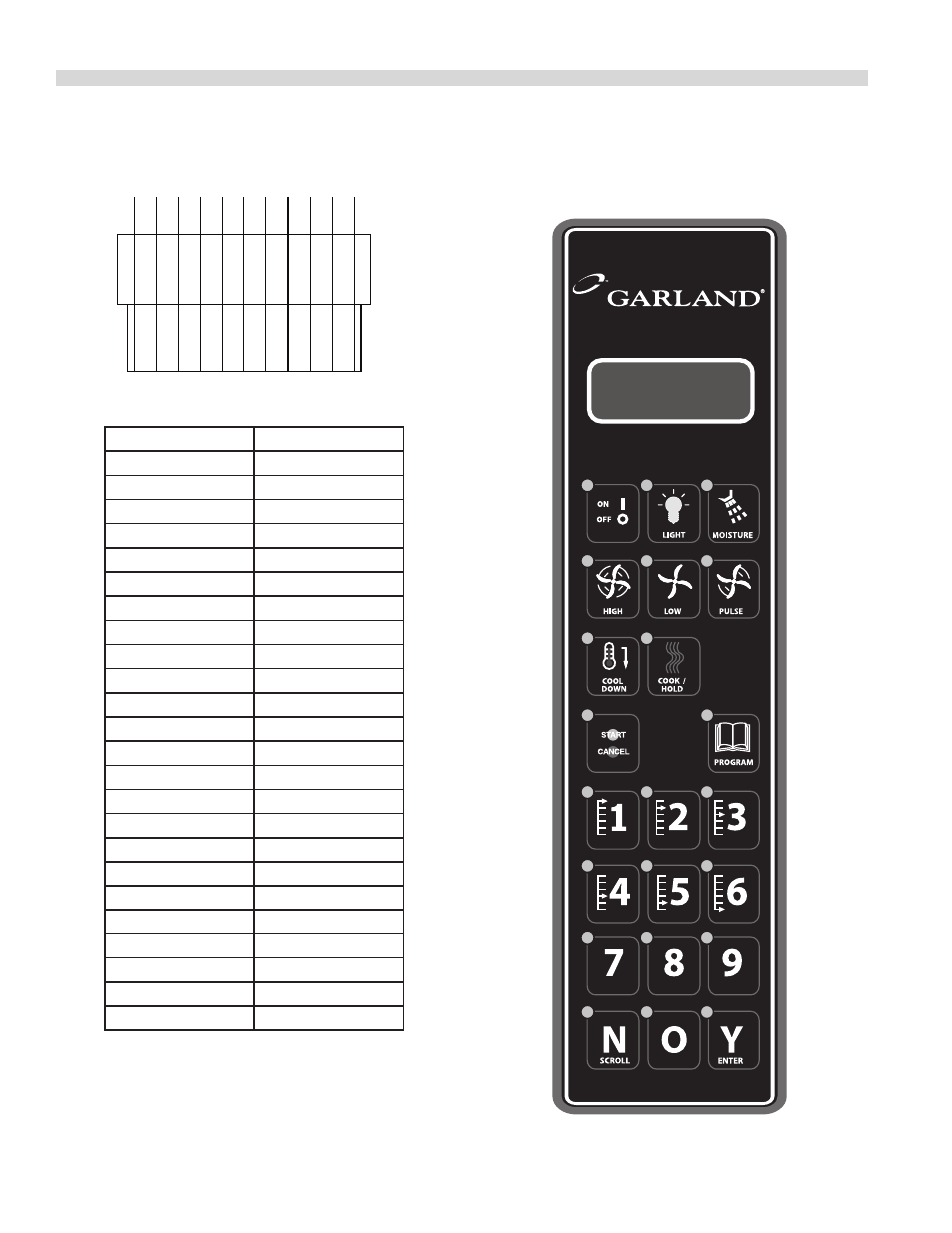

Key Pad / Ribbon Connector Test Points
11 10 9 8 7 6 5 4 3 2 1
Key Ribbon Test Points
Moisture 1 & 4
Light 2 & 4
On/Off 3 & 4
High Fan 3 & 5
Low Fan 2 & 5
Pulse Fan 1 & 5
Cool Down 3 & 6
Cook & Hold 2 & 6
Hidden 1 & 6
Start - Cancel 3 & 7
Blank 2 & 7
Program 1 & 7
1 3 & 8
2 2 & 8
3 1 & 8
4 3 & 9
5 2 & 9
6 1 & 9
7 3 & 10
8 2 & 10
9 1 & 10
N 3 & 11
0 2 & 11
Y 1 & 11
