4 Gateway ALR 9000 User’s Guide
Connecting Peripherals
Refer to the illustrations and procedures below when connecting
peripherals to your system.
1. Connect the keyboard to the keyboard port.
2. Connect the monitor video cable to the video port. The location of the
port may vary depending on the type of video card installed in your
system.
3. Connect the monitor power cable to an AC outlet or preferably, a surge
control outlet station.
4. Verify that the Voltage Selection Switch on each power supply is set
for the proper voltage in your area (115V or 230V).
Using the power cable(s) supplied with your system, connect the the power
supply to an AC outlet. If your system is equipped with more than one
power supply, connect each of the power supplies to a separate AC outlet.

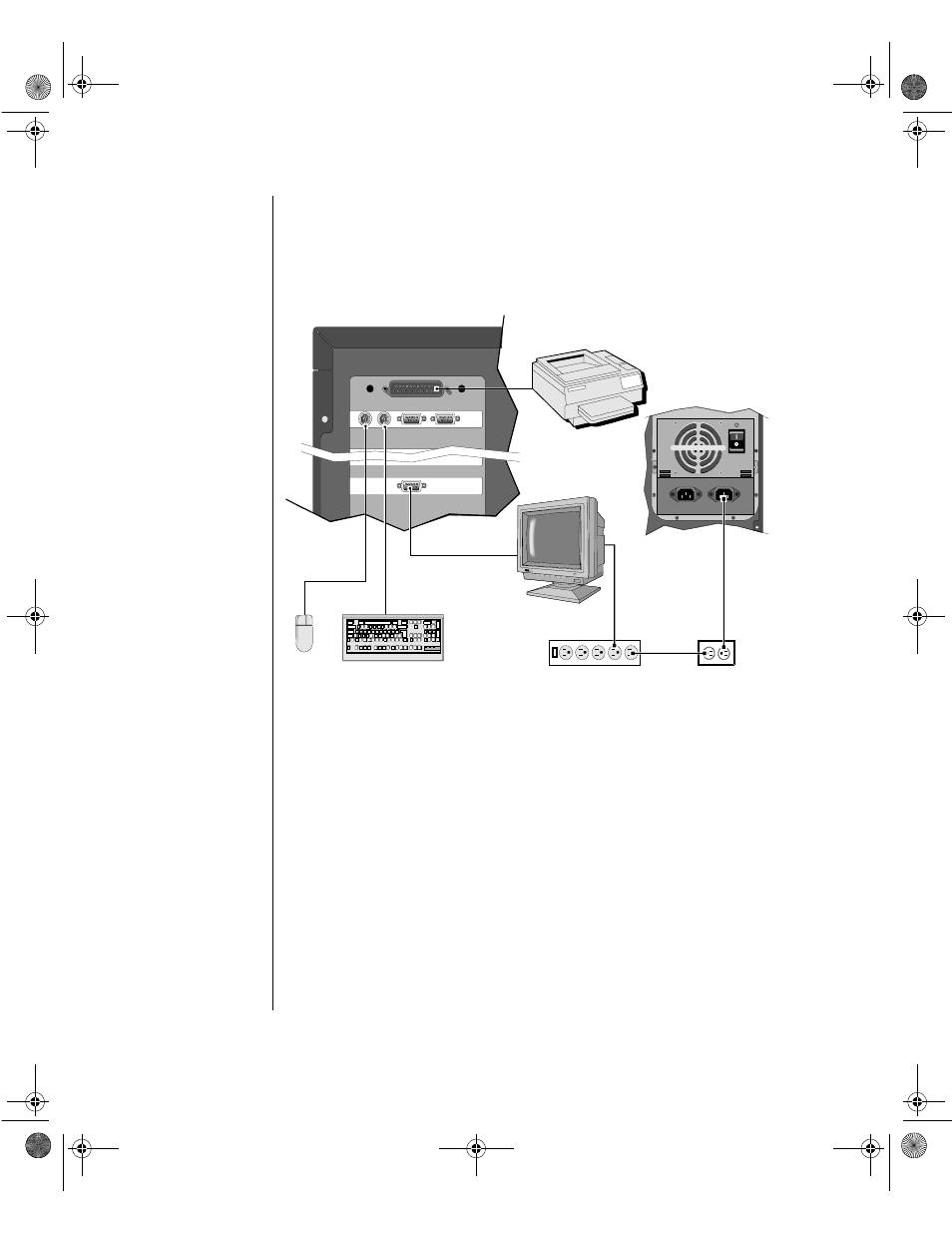

Figure 1: Connecting Peripherals
