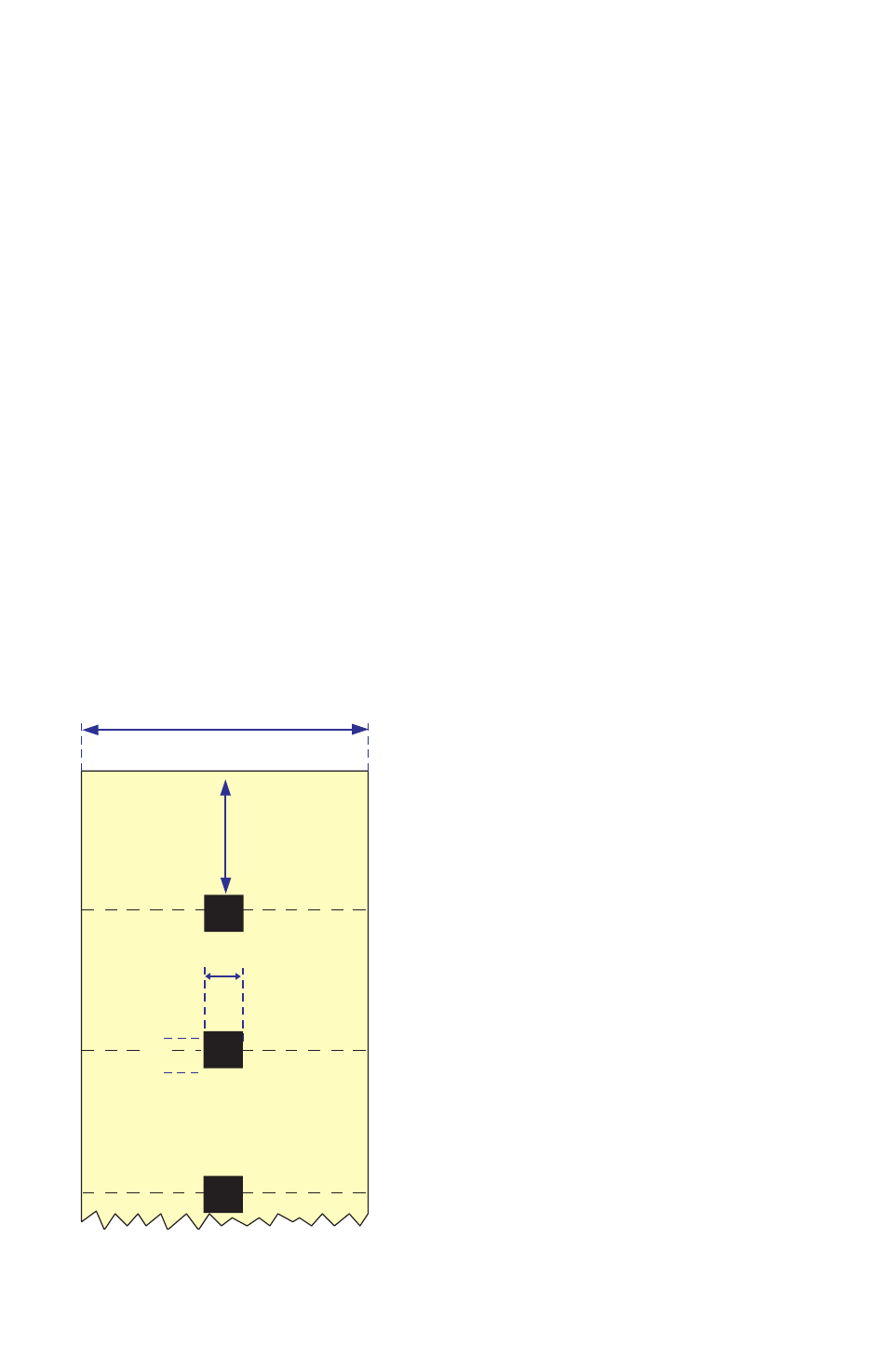

Tags and Strip with Black Marks
← a → Tag or strip width:
Maximum:
116.0 mm
(4.57 inches)
Minimum:
25.0 mm
(1.00 inches)
← b → Tag length:
Minimum:
6.35 mm
(0.25 inches)
← c → Detection slot width:
← c → Black mark width:
Minimum:
28 mm
(1.10 inches)
← d → Black mark height:
Maximum:
10 mm
(0.39 inches)
Minimum:
3 mm
0.12 inches)
The black mark sensor is offset 10 mm (0.394 inches) to the right of the center of the
media path.
Max. reflectance 5% at 940 nanometer. Carbon black.
