EasyCoder PC4 User’s Guide
23
Chapter 3 — Operation
Cut-Off Operation
Note:
The cutter cannot be used to cut through labels—only
through the liner between labels—or the adhesive will stick to
the cutting parts and prevent the cutter from operating prop-
erly. Media rolls must be wound with the printable side facing
outward to prevent jamming the cutter.
1

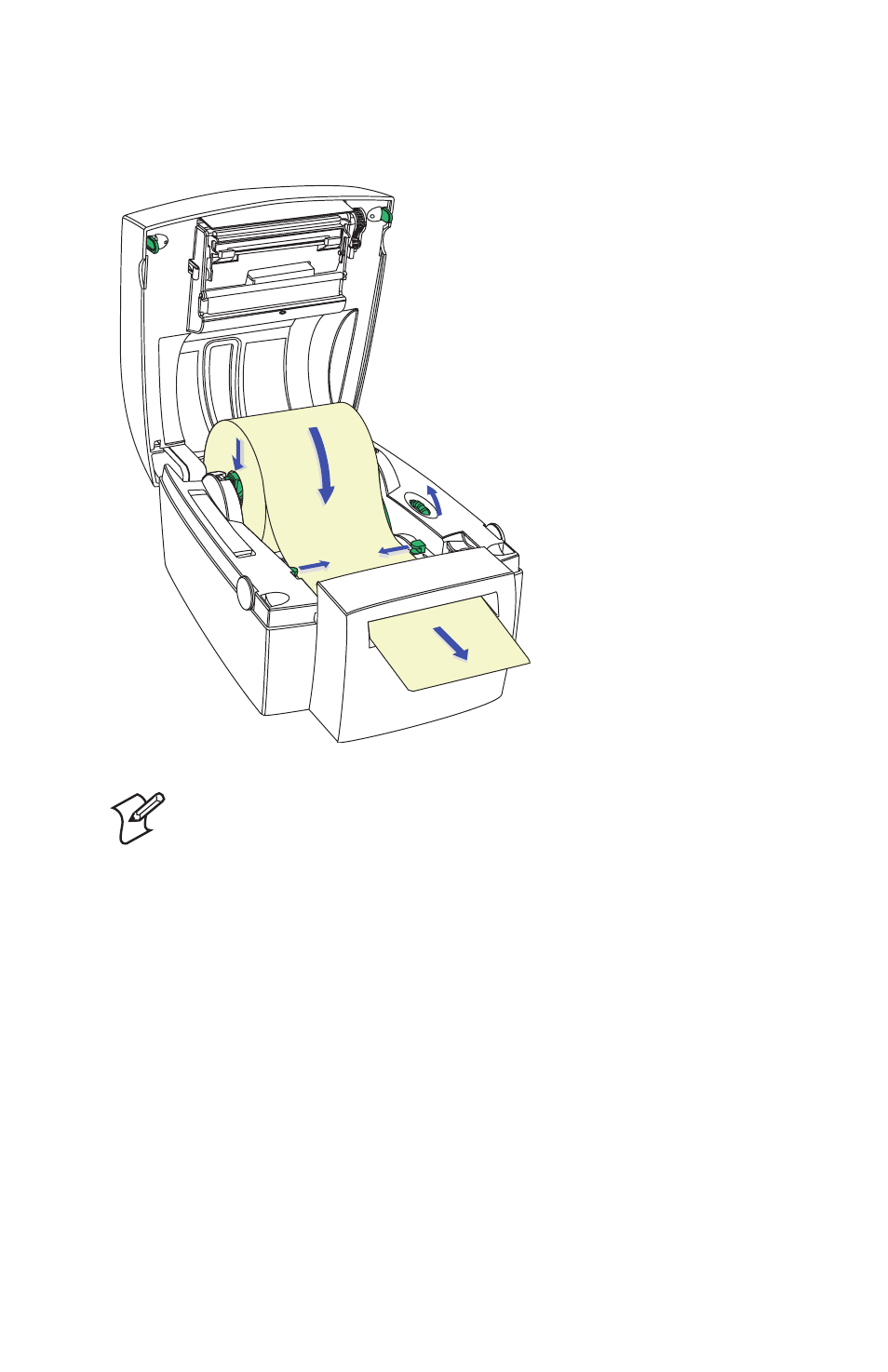

Open the printer's top cover by pressing the release buttons on both
sides and folding the cover upwards/rearwards.
2
Pull up the spindle and remove possible remaining media or empty
media roll core.
3
Place the spindle into the core of a fresh media roll. Rotate the spindle
according to the inner diameter of the media roll core (see markings
on the spindle).
4
Wind the green edge guide wheel towards the front of the printer so
you can fit the roll between the guides.
