EasyCoder PC4 User’s Guide 19
Chapter 3 — Operation
Tear-Off Operation
1 Open the printer's top cover by pressing the release buttons on both
sides and folding the cover upwards/rearwards.
2 Pull up the spindle and remove possible remaining media or empty
label roll core.
3 Place the spindle into the core of a fresh media roll. Rotate the spindle
according to the inner diameter of the media roll core (see markings
on the spindle).
4 Wind the green edge guide wheel towards the front of the printer so
you can fit the media roll between the guides.

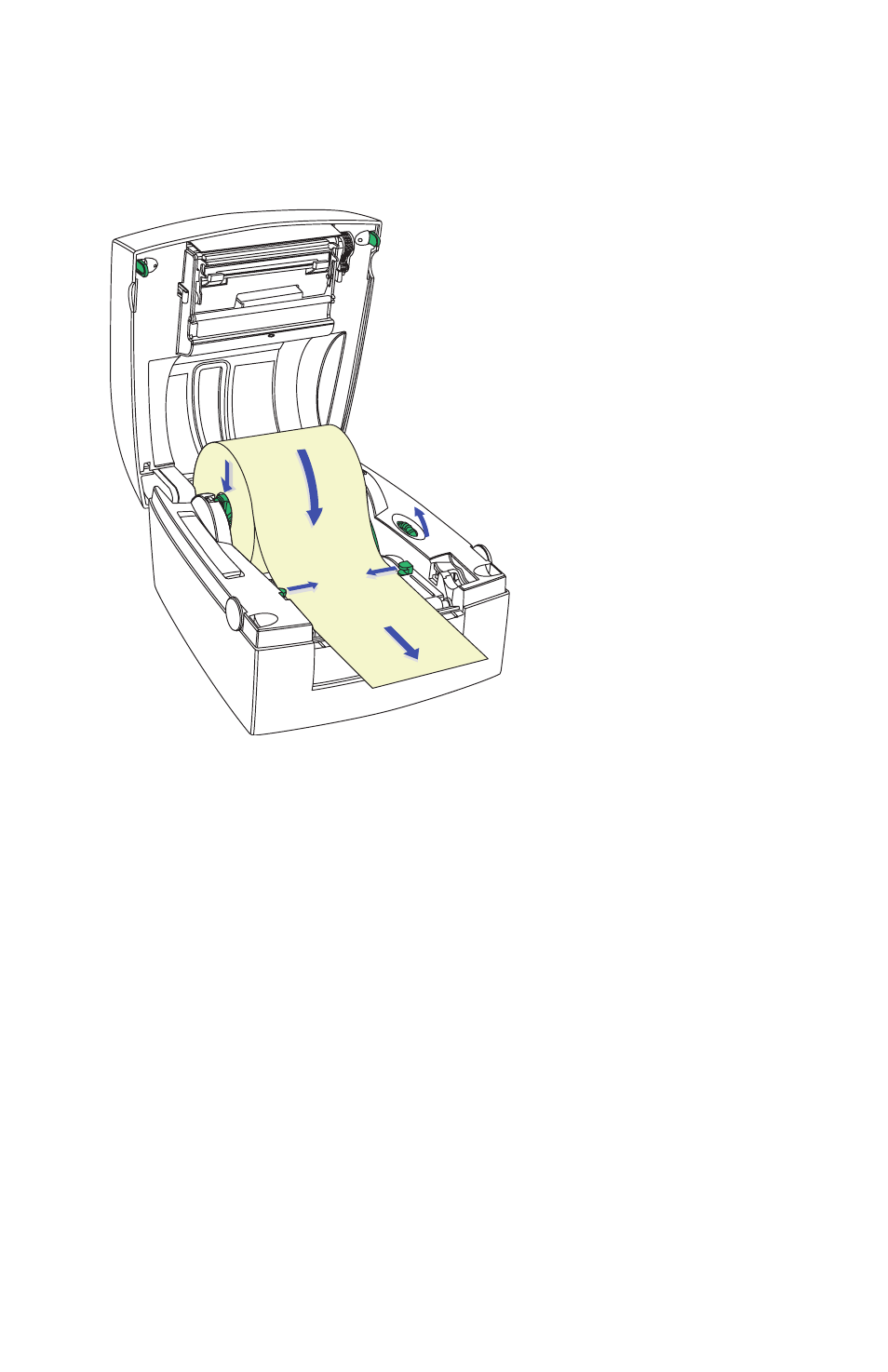

5 Place the media roll and spindle in the media compartment and snap
the spindle into the slots on either side.
6 Wind the green edge guide wheel towards the rear of the printer so
the rear edge guides just touch the roll without actually breaking its
rotation.
