22 EasyCoder PC4 User’s Guide
Chapter 3 — Operation

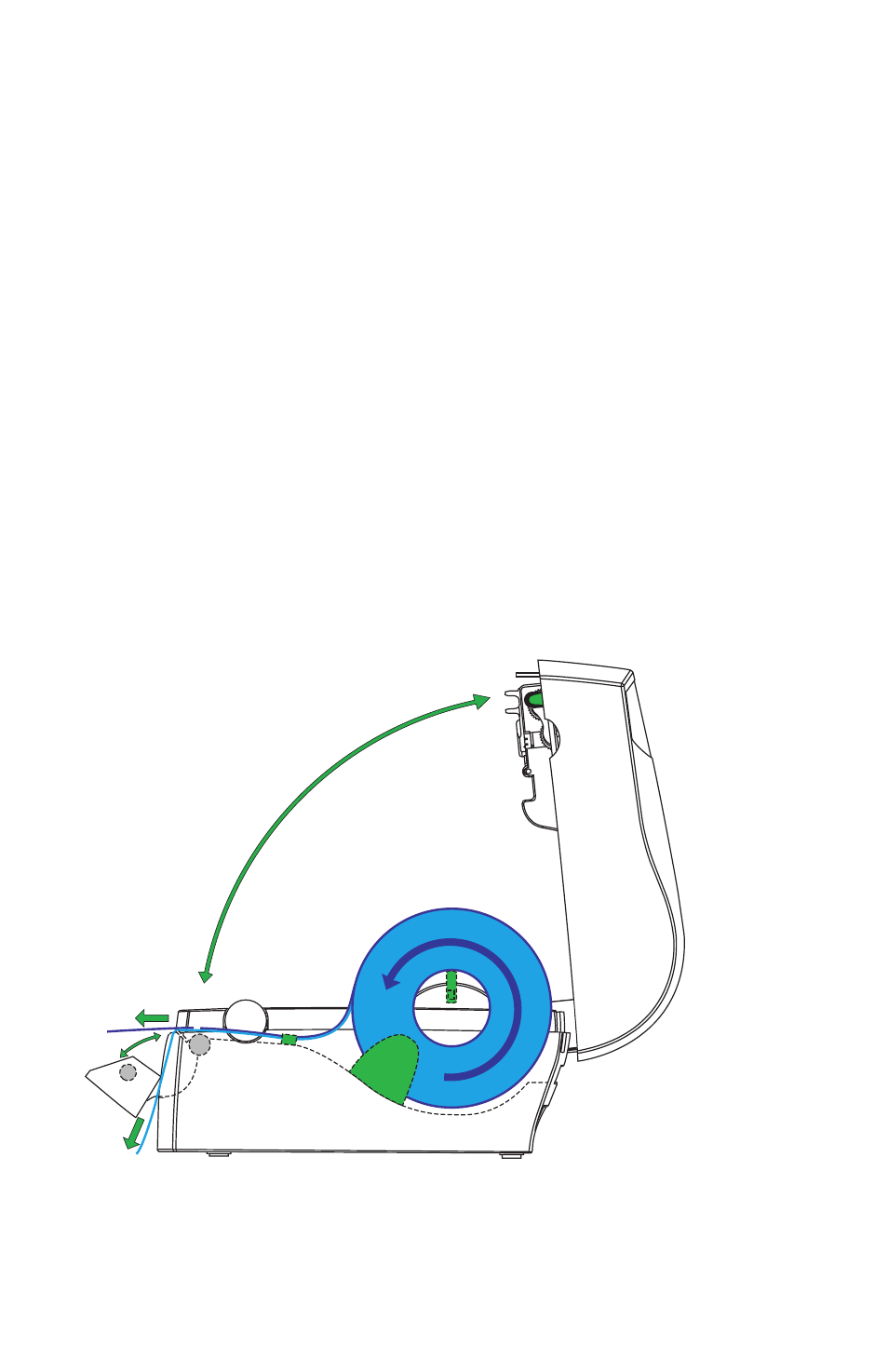

7 Wind the green edge guide wheel towards the rear of the printer so
the rear edge guides just touch the label roll without actually breaking
its rotation.
8 Thread the labels through the slits in the front edge guides.
9 Peel away the labels from the first 10 cm (4 inches) or so of the liner.
10 Thread the liner around the peel-off bar and insert it inside the peel-
off mechanism so it protrudes from the slot below the mechanism.
11 Hold the labels while pulling at the liner so it becomes tight, then
close the peel-off mechanism.
12 Firmly close the top cover.
13 If loading labels for the first time or if changing from another type or
size of media, perform a Label Gap Sensor Adjustment as described
on page 28. Else, tap the Feed key either 4 times or until the indicator
lamp glows green.
14 If the printer did run out of labels while printing, the printing will
automatically be resumed.
