-18-
g0561 7" x 12" Metal-Cutting Bandsaw
vertical Assembly

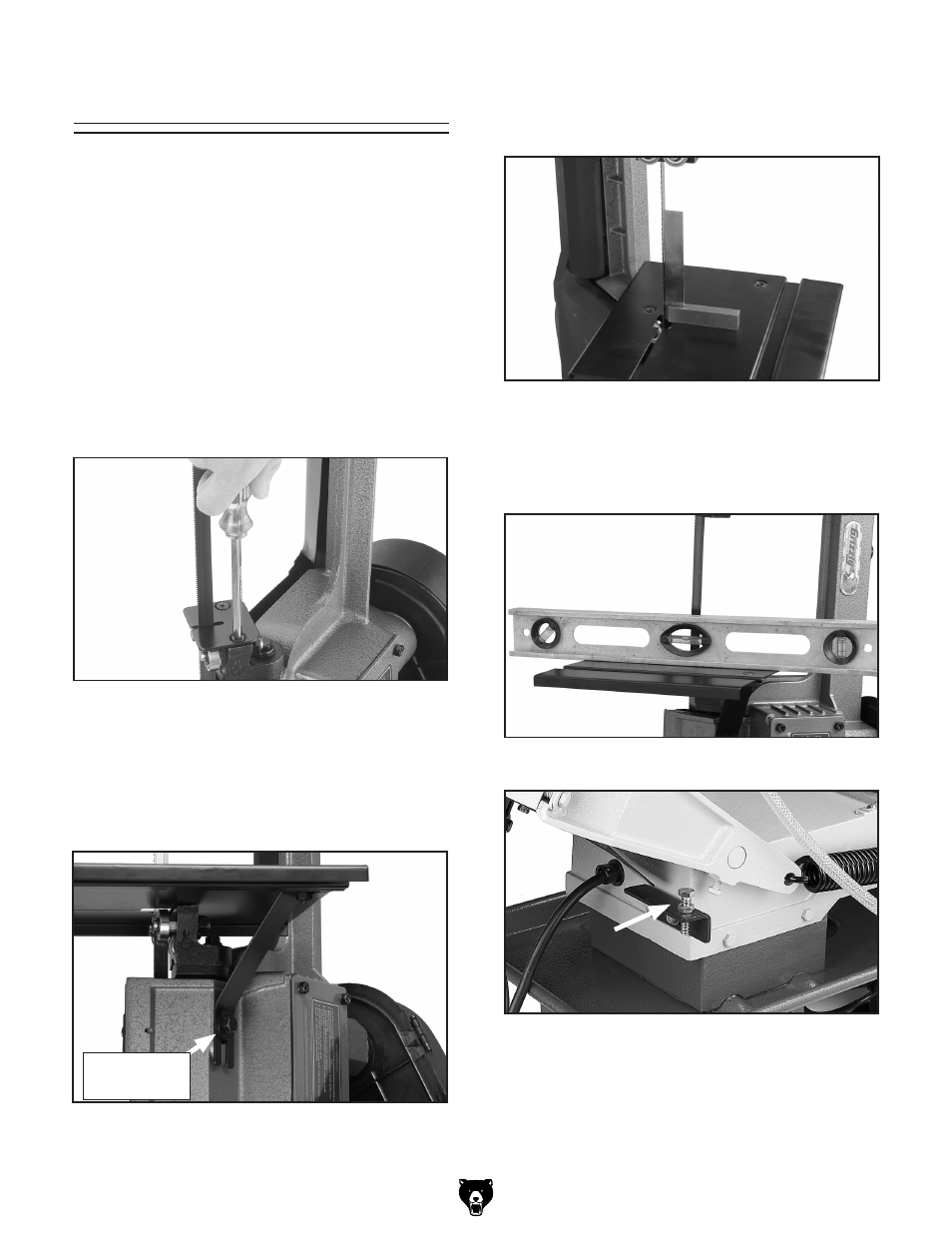

figure 16. removing blade guide cover.
figure 17. table and bracket installed.
figure 18. squaring table to blade.
2. install the vertical work table and replace the
two screws removed in Step 1.
3. install the table bracket shown in figure 17
with the bolt already in the casting.
4. set a square to the side of the blade, as
shown in figure 18, and adjust the table
bracket to square the table to the blade.
the Model g0561 can easily be set up for vertical
cutting operations.
Components and hardware Needed: Qty
vertical Work table ............................................1
table Bracket .....................................................1
Flat head screw
1 ⁄
4
"-20 x 3 ⁄
8
" ............................. 1
hex nut 1 ⁄
4
"-20 ................................................... 1
To assemble the bandsaw for vertical cut-
ting:
1. remove the two screws and blade guide
cover as shown in figure 16.
Bolt Already
in Casting
figure 20. Adjustment bolt.
figure 19. Adjusting table level.
5. place a level on the table, as shown in figure
19, and turn the adjustment bolt shown in
figure 20 until the table is level.
6. Close the feed on/oFF valve to lock the bow
in position (see figure 21).
