g0561 7" x 12" Metal-Cutting Bandsaw
pulley Cover
Components and hardware Needed: Qty
pulley Cover ......................................................1
Collar ..................................................................1
phillips head screws
1 ⁄
4
"-20 x 5 ⁄
8
" .......................2
Flat Washers 1 ⁄
4
" .................................................2
Knob 1 ⁄
4
"-20 x 5 ⁄
8
" ................................................1
To install the pulley cover:
1. slide the collar onto the bottom side of the
pulley cover and snap in place as shown in
figure 11.

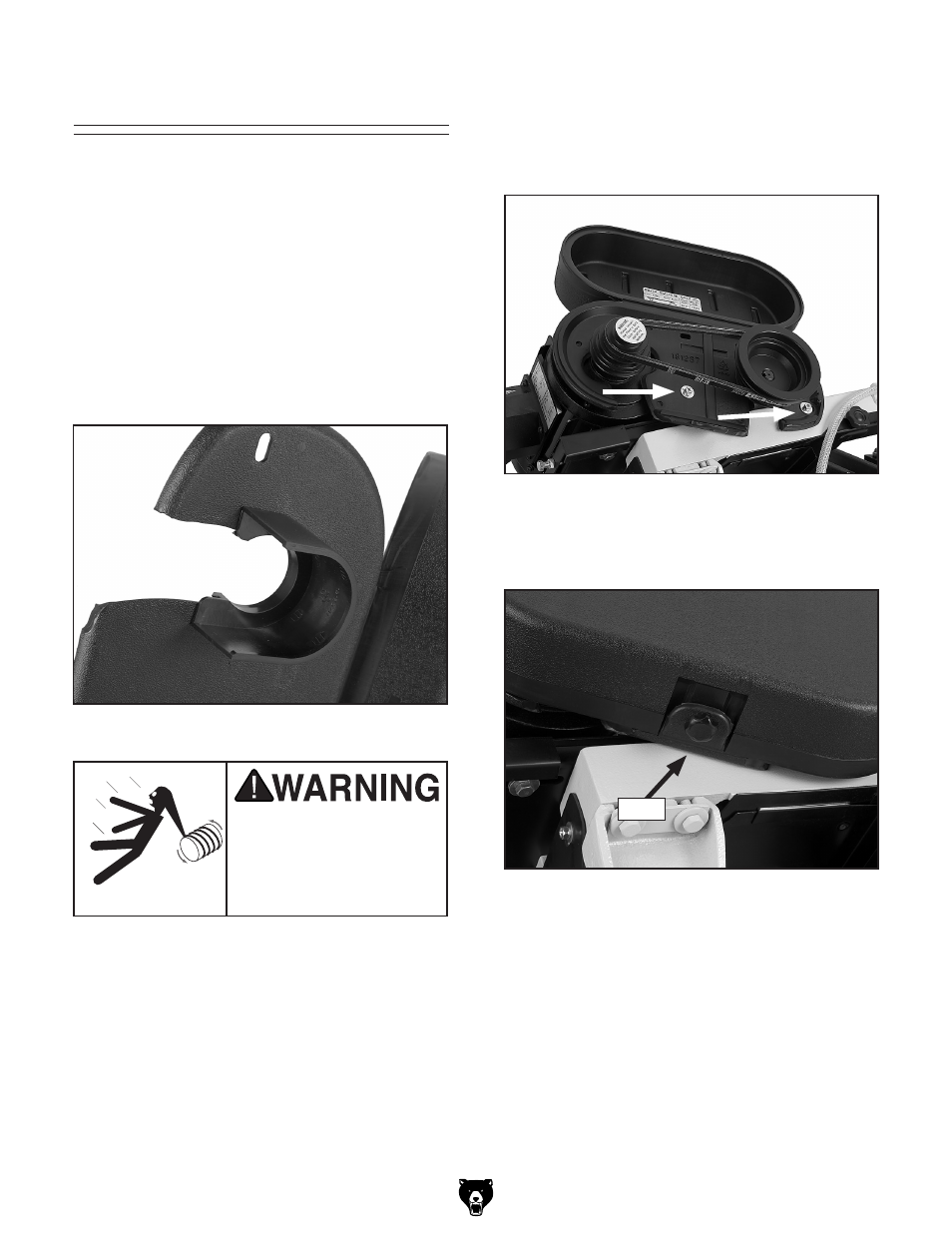

figure 11. Collar installed.
figure 12. installing pulley cover.
2. slide the pulley cover over the pulleys.
3. Align the holes and secure with the two 1 ⁄
4
"-
20 x 5 ⁄
8
" phillips head screws and four flat
washers (see figure 12).
4. Close the pulley cover lid and secure with the
knob (see figure 13).
figure 13 secured pulley cover lid.
Knob
Entanglement hazard!
you MUST install the pul-
ley cover before operat-
ing or severe injury may
occur.
