FS-8700-127 Hanning & Kahl HCS-R Manual

Page 4 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.FieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: [email protected]

3

HARDWARE CONNECTIONS

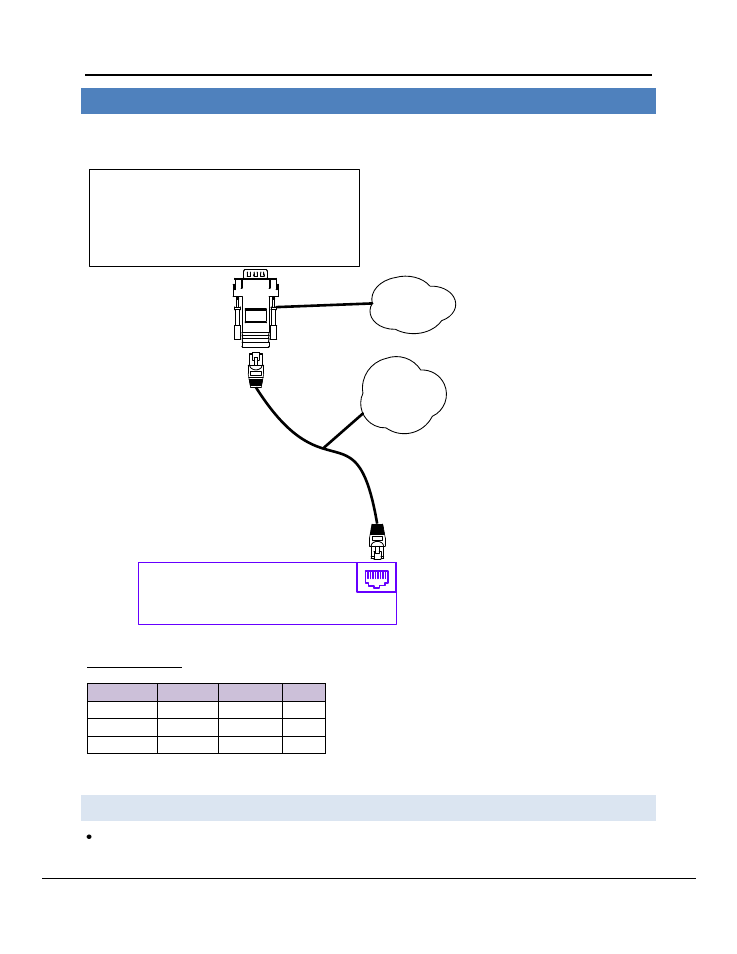

The FieldServer is connected to the Hanning & Kahl HCS-R as shown in connection drawing.
Configure the HCS-R according to manufacturer’s instructions

HCS-R

(Hanning Communication System)

FS-8917-02

COM 2

RJ45 CAT 5

Cable

FieldServer

P1

1

8

FS-8917-02

FS-8917-02 Pinouts

FS Function RJ45 Pin# DB9F Pin# Color
RX

1

3

White

GND

4

5

Green

TX

8

2

Blue

3.1

Hardware Connection Tips / Hints

Loop back RTS CTS if it is required by the other device

.
