Gps100 antenna, Pin connector, Heat shrink tubing – Faria Instruments SMARTCRAFT MG2000 User Manual
Page 59

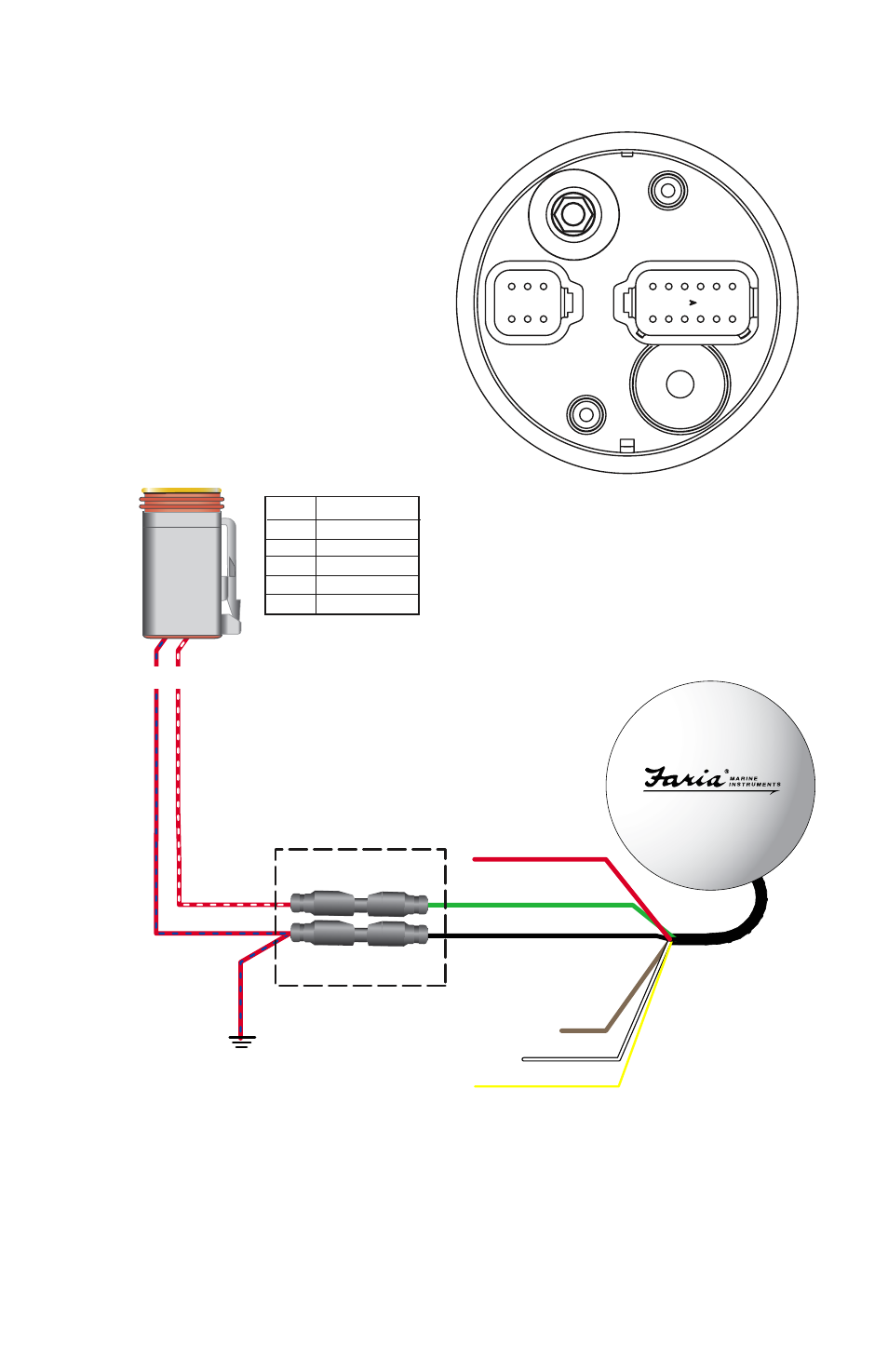

RED - IGNITION
MG2000 Tachometer
Harness HN0401
NMEA 0183 Cable
6- pin connector
Pin 1 Not Used
Pin 2 Not Used
Pin 3 Red/ White
Pin 4 Red/ Blue
Pin 5 Not Used
Pin 6 Not Used
4 3
NMEA 0183-A
NMEA 0183-B
Red/ White
Brown*
Red (Ignition)
White*
Yellow*
Green (0183-A)
Shield (Ground)
Red/ Blue
GREEN - 0183A
SHIELD - GROUND
GPS100 Antenna
Ground
Not Used
Not Used
Not Used
*Note:
1) Cut off the connector at the end of the antenna cable
2) Cut off the following wires because they are not used: White, Yellow, Brown
3) Cut wires so that they are different lengths. This ensures they do not touch each other.
Heat
Shrink
Tubing
HN0401 r.A1 ecr. 5556 7/2005
6
5
4
3
2
1
7
8
9
10
11
12
1
2
3
6
5
4
Page 53
