Default Screen “7”
RPM
3500 RPM
Oil Pressure
20.1 PSI
RPM
Displays engine RPM as received from
the SmartCraft bus.
Oil Level or Oil Pressure or Water
Pressure or Intake Manifold Temp.
Displays “Oil Level” on two cycle
outboards, and jet drives.
“Oil Pressure” is displayed boats with
inboard, inboard/outboard, and Verado
out-board engines.
Displays “Water Pressure” on 4 cycle
outboards.
Displays “Intake Manifold Temperature”
on diesels engines.
Default Screen “8”
Engine Hours
325 Hrs
Steer Angle
22 Deg Stbd
Engine Hours or RPM Sync
Displays “Engine Hours” on single engine
installations.
Displays a graphic display showing
engine sync in dual engine installations.
Center mark appears if engines are
synchronized.
Steering Angle or Speed
Displays “Steer Angle” on inboard/
outboards, inboards and diesel engines.
Displays “Speed” for 2 cycle and 4
cycle outboards, Jet drives, and Verado
outboards.
Default Screen “9”
RPM
2500 RPM
Fuel Level
RPM or Trim Sync
Displays RPM for all single engine
installations and Trim Sync for all dual
engine installations.

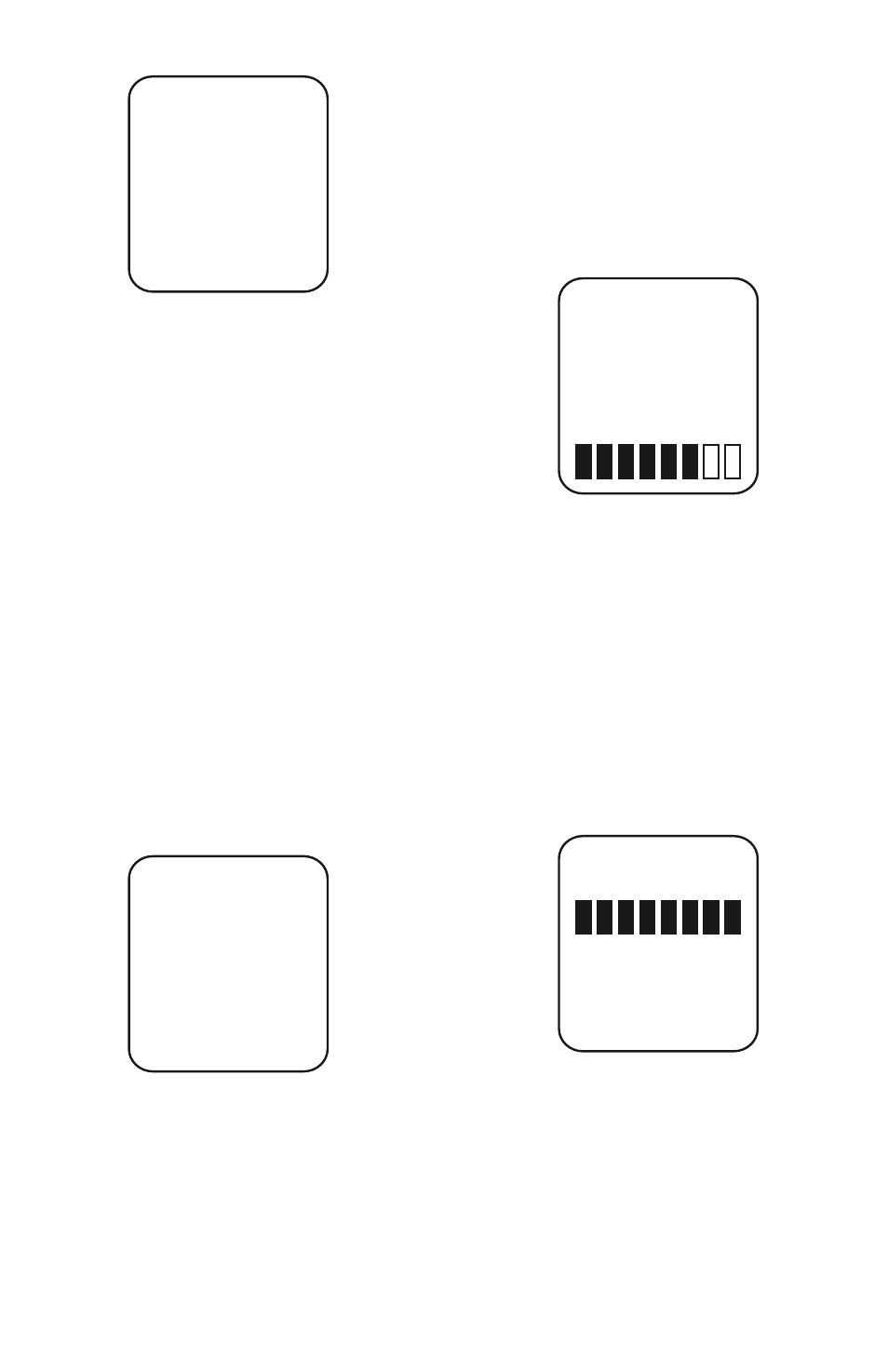

Fuel Level
Displays a graphic display of 8 boxes
for all engine types. All boxes filled in
indicates a full level.
Default Screen “10”
Tank2 Level
Water Press
9.5 PSI
Tank2 Level
Displays a graphic display of 8 boxes
represent the volume of liquid in an
auxiliary tank. The tank name can be
changed. (Refer to the “Edit” mode, page
33.)
