Page 53: Pin connector 12- pin connector, Pin connector, Smartcraft cable, Air temp sender
Page 47
MG2000 Tachometer
6
5
4
3
2
1
7
8
9
10
11
12
1
2
3
6
5
4
SmartCraft

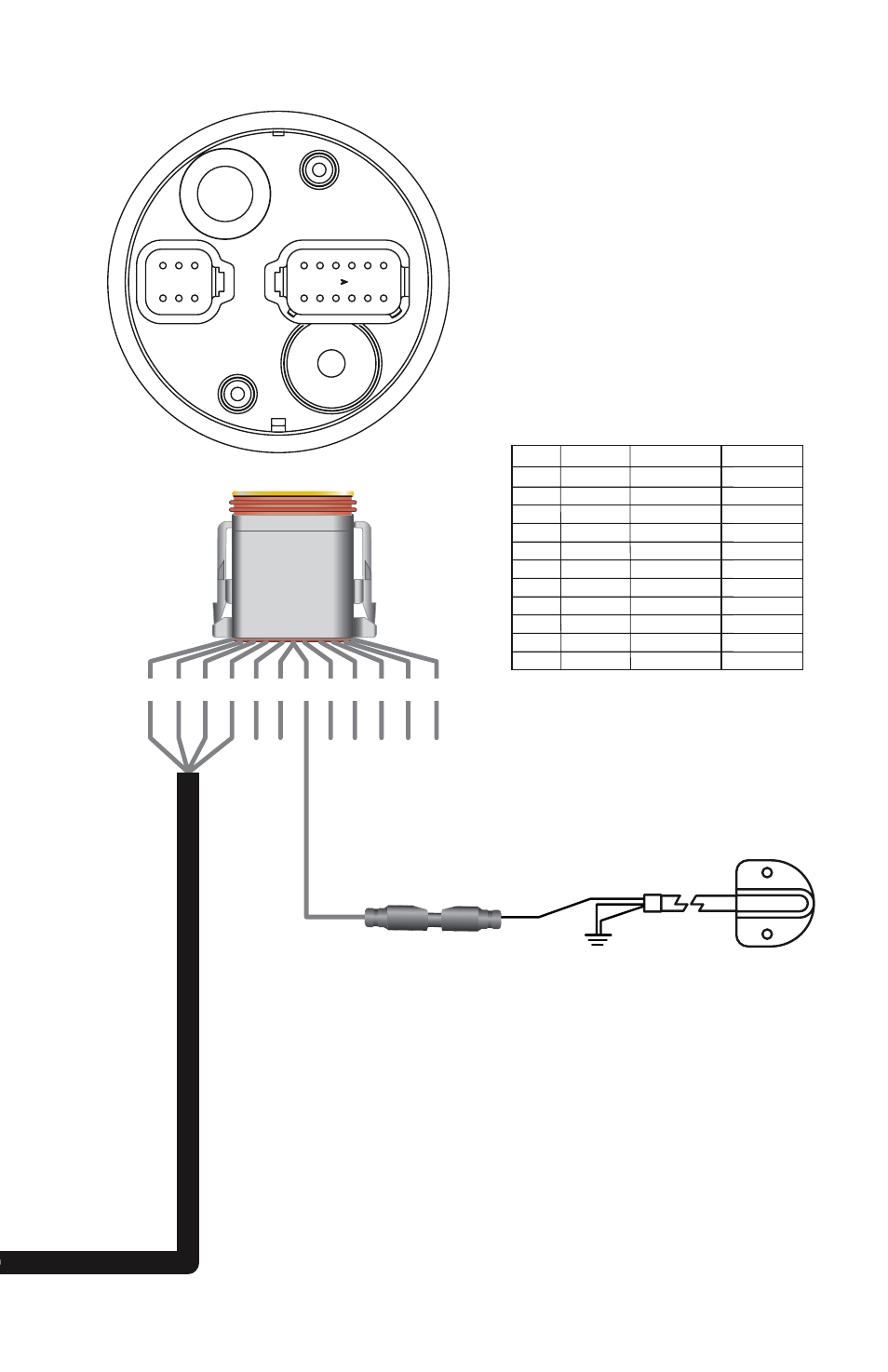

Harness HN0403
SmartCraft
Tachometer Cable
(To connect from the SmartCraft
harness to the junction box.)
4- pin connector
12- pin connector
Pin A Red
Pin B White
Pin C Green
Pin D Black & Sheild
Pin 1 Red
Faria Bus
Pin 2 White
Faria Bus
Pin 3 Green
Faria Bus
Pin 4 Black
Faria Bus
Pin 5 Violet
Ignition(Wake)
Pin 6 Not Used
Pin 7 Not Used
Pin 8 Not Used
Pin 9 Not Used
Pin 10 Black
Not Used
Pin 11 Red
CAN 1 +
Pin 12 White
CAN 1 -
SmartCraft Cable
Pin A Not Used
Pin B Black
Ground
Pin C Not Used
Pin D Not Used
Pin E Not Used
Pin F Violet
(Wake Up)
Pin G Not Used
Pin H Not Used
Pin J Red
CAN 1+
Pin K White
CAN 1 -
1 2 3 4 5 6 7 8 9 10 11 12
Wire Jacket
Heat
Shrink
Tubing
Heat
Shrink
Tubing
V
iolet
Violet
Black
Black
Not Used
Not Used
Not Used
Not Used
HN0403 r.B ecr 5629 8/05
Air Temp Sender
White (Sender Signal)
Black & Shield (Ground)
6
5
4
3
2
1
7
8
9
10
11
12
1
2
3
6
5
4
MG2000 Speedometer
Harness HN0403
Speedometer Cable
1 2 3 4 5 6 7 8 9 10 11 12
Wire Jacket
12- pin connector
Pin 1 Red
Faria Bus
+8.4 VDC
Pin 2 White
Faria Bus
AY
Pin 3 Green
Faria Bus
BZ
Pin 4 Black
Faria Bus
Ground
Pin 5 Not Used
Pin 6 Not Used
Pin 7 Tan
Temp Signal
Pin 8 Not Used
Pin 9 Not Used
Pin 10 Not Used
Pin 11 Not Used
Pin 12 Not Used
Tan
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
