2-11
2.5 USER-1/2 Menu

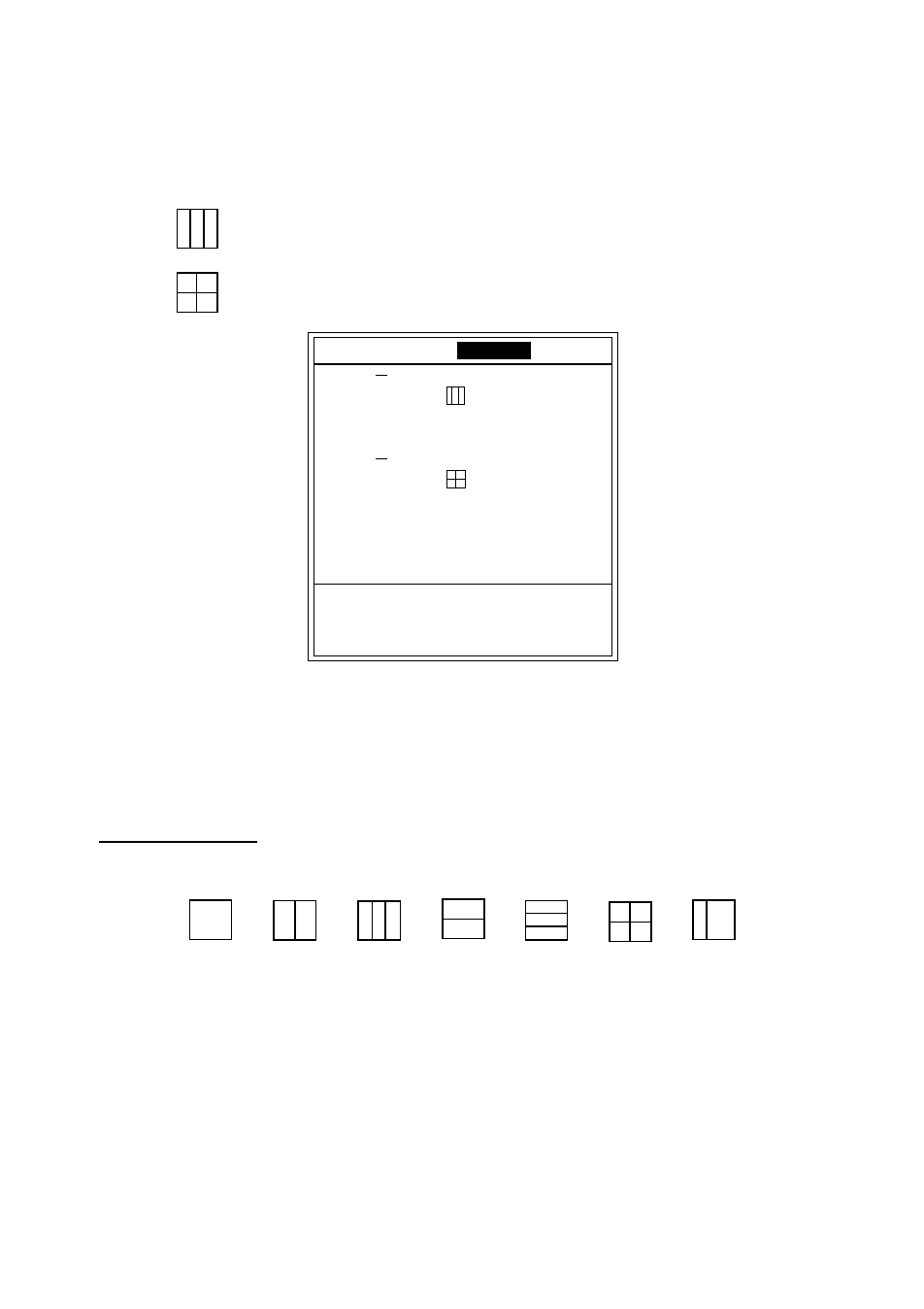

Sets screen division for the dual frequency picture. This setting can be selected with USER-1, 2
of the [FUNCTION] switch. Default settings are as below.
USER-1: ( [LF]+[HF] +[MIX])
USER-2: ([LF]ZM/NOR+[HF]ZM/NOR)
Menu for user-preset mode setting.
[-/+]: Change set, [EXIT (knob)]: Exit
SCREEN LAYOUT :
DISP MODE
: [LF]+[HF]+[MIX]
ZOOM MODE : BOTTOM ZOOM *1
SCREEN LAYOUT :
DISP MODE
: [LF]Zm/Nor+[HF]Zm/Nor
ZOOM MODE : BOTTOM ZOOM
EXT DEVICE : ETR*2
DEFAULT SET : NO
1>
2>
*1: The setting is available when Zm (Zoom)
is selected at the DISP MODE field.
*2: The setting is available when EX is
selected at the DISP MODE field.
DISP ALM TX/RX USER-1/2 SYSTEM
USER-1/2 menu
SCREEN LAYOUT
Selects the screen division layout among the following patterns.
