20
Names and Functions
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
DRIVE
AUTO A.PUNCH
SYNC OUT
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
SETUP
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
SURE ?
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI

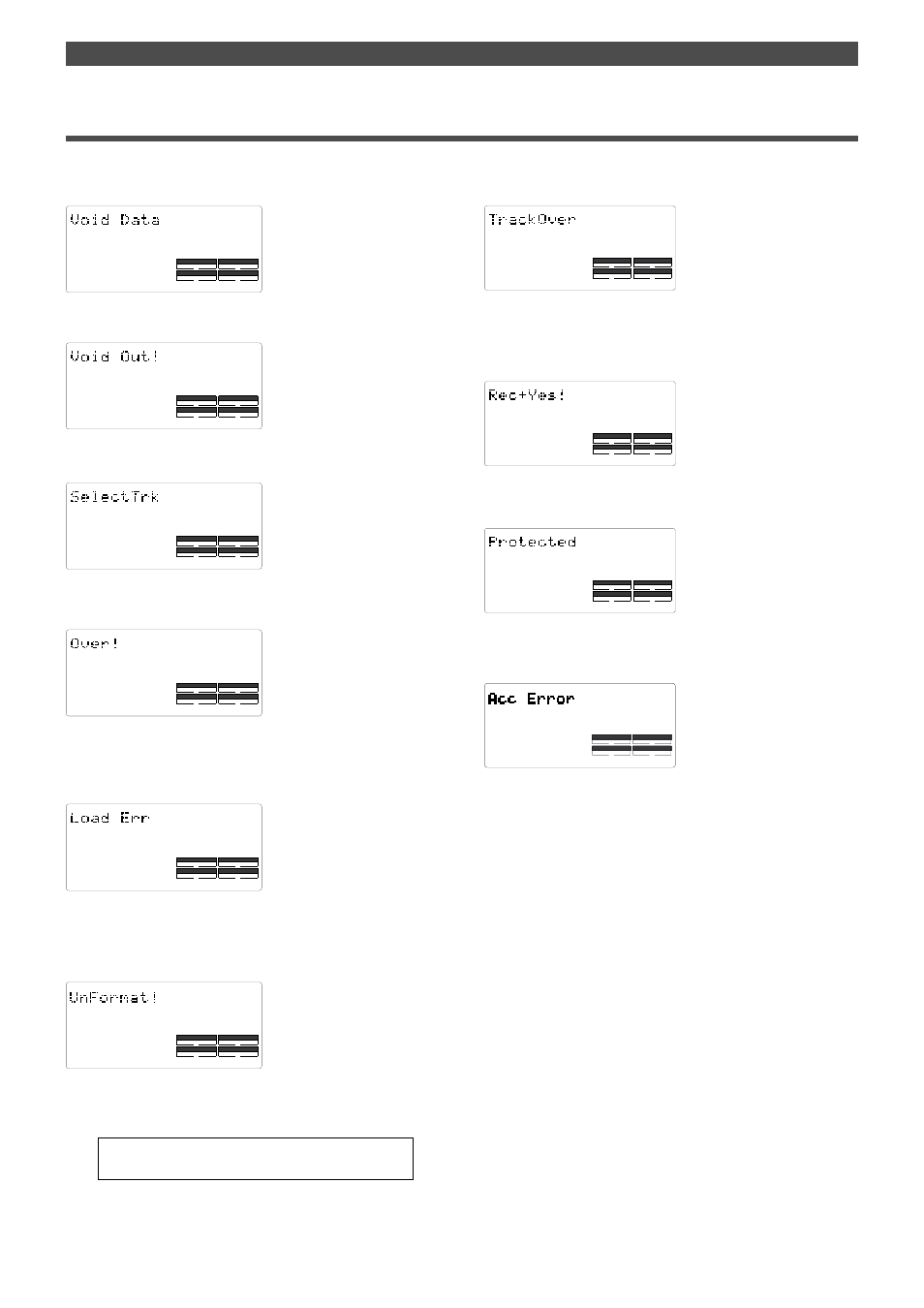

Warning messages
The following warnings are shown operating mistakes are made, an unsuitable editing point (= locate point) is input,
or when errors occur. If any of these warnings appear, refer to information detailed below.
message
This means registered data
necessary for the selected
operation is incorrect.
message
This means the registered in/
out point
is wrong.
messageThis means a track has not
been specified. messageThis means that disk space
necessary for recording and
editing is insufficient. messageThis means that loading is
impossible because there is
an error in data applied to
the DATA IN connector from
the external DAT, or adat. messageAn unformatted or crashed
SCSI disk. After a few
seconds of this display, the
FD-8 automatically enters
the SETUP mode [Format ?]
menu. messageThis means the disk inserted
in the drive cannot be used
because it is write-protected.
The disk will be ejected
automatically. messageThis is displayed when
formatting. This means press
the EXECUTE/YES key while
pressing the RECORD button.Note: Any sound data recorded up to this point on the diskwill be lost.DRIVEAUTOA.PUNCHSYNC OUTCLKSCSI messageThis message appears when
trying to record more than 2
tracks of signals
simultaneously using a MO
drive/disk as a Current Drive.CLKSYNC OUTDRIVESCSIAUTOA.PUNCH messageThis message indicates that
an error occurs when
accessing the disk. With this
message, no keys and buttons
do not function at all.Action to take: If this message appears, please follow thefollowing procedures.1. Leave the disk inside the SCSI drive and turn off the power tothe FD-8 and all connected devices.2. Turn on the power to the SCSI drive.3. Make sure that the orange LED on the SCSI drive lights up ingreen and that the disk is not being accessed, turn on the
power to the FD-8.Action to take: The MO drive only allows to record up to 2tracks at a time. After changing the RECORD TRACK select key
setting, please record signals.Action to take:Press the EXECUTE/YES key while pressing the RECORD button.Action to take:Release the write-protect and re-insert it.Action to take: Re-register the correct data.Action to take: Re-register the correct data.Action to take: Select any one track with the RECORD TRACKselect key.Action to take: Before proceeding to the next operation,temporarily data in order to source empty space necessary for
the next operation.Action to take: Check the external DAT or adat connected tothe DATA IN connector and be sure there is no problem with
the DAT, or adat tape. Then, try loading again.Action to take: Press the EXECUTE/YES key while pressing theRECORD button. Pages: 1 … 18 19 20 21 22 … 121 wrong Brand wrong Model non readable See also other documents in the category Fostex Musical Instruments: MR16 (166 pages) FE SIGMA-SERIES FE208 (1 page) VF08 (20 pages) FE-204 (1 page) DE-10 (22 pages) MR-8 (102 pages) VM08 (30 pages) MR-8CD (148 pages) Manual MN04 (4 pages) FD-4 (100 pages) VF80 (144 pages) VM04 (27 pages) Sitemap
This means a track has not
been specified.
message
This means that disk space
necessary for recording and
editing is insufficient.
message
This means that loading is
impossible because there is
an error in data applied to
the DATA IN connector from
the external DAT, or adat.
message
An unformatted or crashed
SCSI disk. After a few
seconds of this display, the
FD-8 automatically enters
the SETUP mode [Format ?]
menu.
message
This means the disk inserted
in the drive cannot be used
because it is write-protected.
The disk will be ejected
automatically.
message
This is displayed when
formatting. This means press
the EXECUTE/YES key while
pressing the RECORD button.
Note: Any sound data recorded up to this point on the disk
will be lost.
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
message
This message appears when
trying to record more than 2
tracks of signals
simultaneously using a MO
drive/disk as a Current Drive.
CLK
SYNC OUT DRIVE
SCSI
AUTO A.PUNCH
message
This message indicates that
an error occurs when
accessing the disk. With this
message, no keys and buttons
do not function at all.
Action to take: If this message appears, please follow the
following procedures.
1 . Leave the disk inside the SCSI drive and turn off the power to
the FD-8 and all connected devices.
2 . Turn on the power to the SCSI drive.
3 . Make sure that the orange LED on the SCSI drive lights up in
green and that the disk is not being accessed, turn on the
power to the FD-8.
Action to take: The MO drive only allows to record up to 2
tracks at a time. After changing the RECORD TRACK select key
setting, please record signals.
Action to take:
Press the EXECUTE/YES key while pressing the RECORD button.
Action to take:
Release the write-protect and re-insert it.
Action to take: Re-register the correct data.
Action to take: Re-register the correct data.
Action to take: Select any one track with the RECORD TRACK
select key.
Action to take: Before proceeding to the next operation,
temporarily data in order to source empty space necessary for
the next operation.
Action to take: Check the external DAT or adat connected to
the DATA IN connector and be sure there is no problem with
the DAT, or adat tape. Then, try loading again.
Action to take: Press the EXECUTE/YES key while pressing the
RECORD button.
