SYSTEM CONFIGURATION
The FM-8800D/8800S is a highly advanced 25 W VHF transceiver with DSC
terminal. It is designed to satisfy the stringent requirements of marine
communications, and complies with GMDSS carriage requirements for safety
and general communications.
Transceiver Unit
FM-8800D/8800S
Handset
HS-2003
VHF
Antenna CH 70 RX
Antenna
AC/DC
Power Supply
Unit
PR-240 100-115/200-230 VAC
50/60 Hz, 1
φ
Category of units
Antenna
All other units
Exposed to weather
Protected from weather
Category
Radio Battery
24 VDC
24 VDC
Junction
Box*
IF-8810
Printer
PP-510
PP-8800
External
Speaker
SEM-21Q
Wing handset
T/R AF output for VDR
MAX
2 sets
IEC61162-1 input
DSC information output
Unit
: Standard
: Optional
External alarm
Remote station
RB-8800/8810
MAX
4 sets
*: Option for FM-8800D/S-N
Printer
IF+UTP-80FK
VHF console
RC-8800
DMC/IF
IF-8820 RB-8800/8810
RB-8810-W
ALARM UNIT
IC-350
RB-8810-W

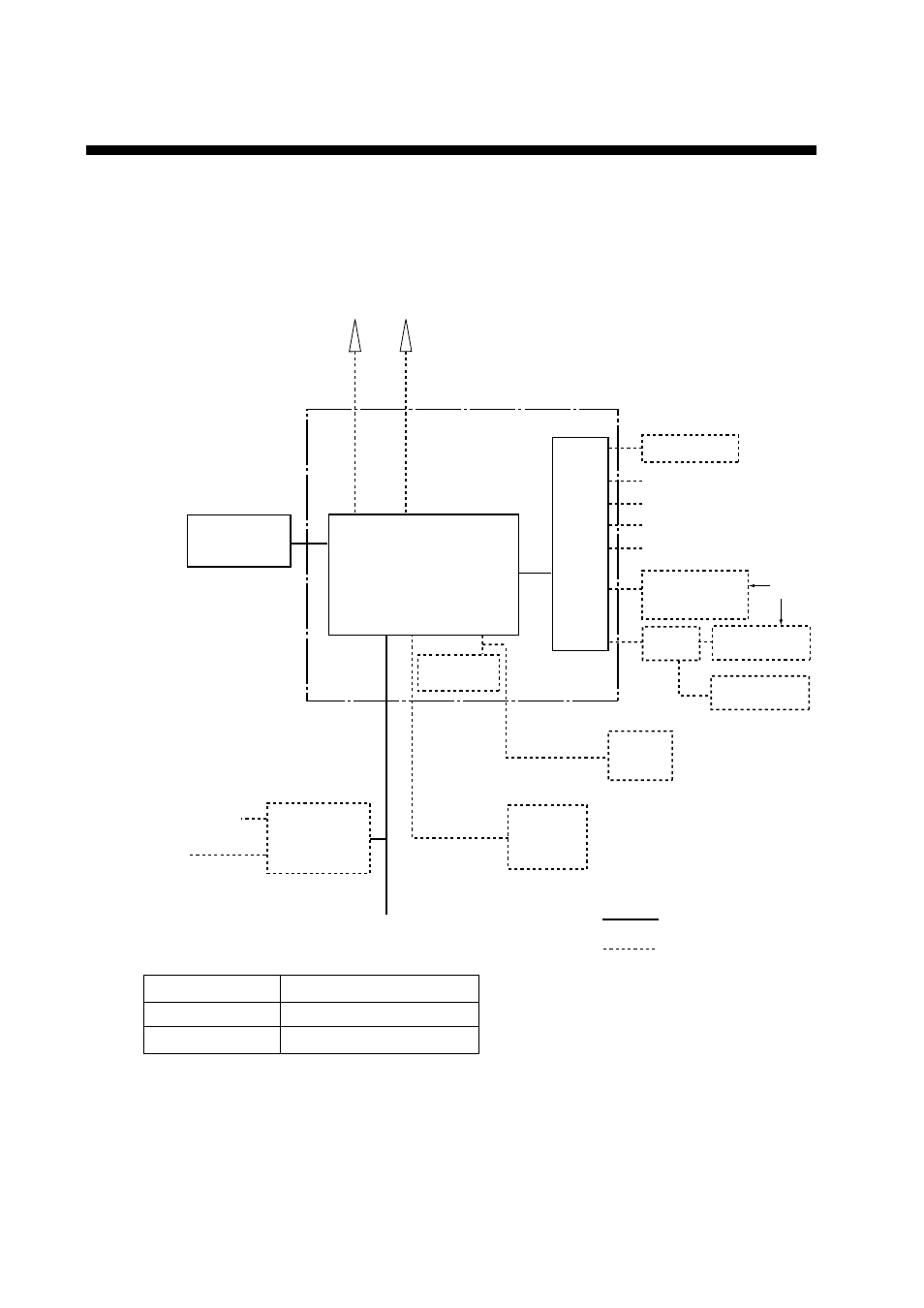

FM-8800D/8800S system configuration
