26
MR-8 Owner’s Manual
BALANCE UNBAL BALANCE UNBAL
MIN MAX
2 1
R L
PHONES
ST OUT INPUT A INPUT B
DRIVE TRIM TRIM
GUITAR GUITAR
PEAK LINE MIC PEAK LINE MIC MIN MAX
DIGITAL MULTITRACKER
Master recorder
or
Monitor Speaker
DC IN
POWER USB FOOT SW
DIGITAL
OUT INPUT A SELECT
GUITAR INT MIC
MIC/LINE
LIGHT
12V
ON
OFF
MIDI device
Personal Computer
AC main outlet
Foot switch
(Model 8051)
Digital master recorder
Headphones
Microphone
Guitar, keyboard etc.
MIDI cable
USB cable
Optical cable

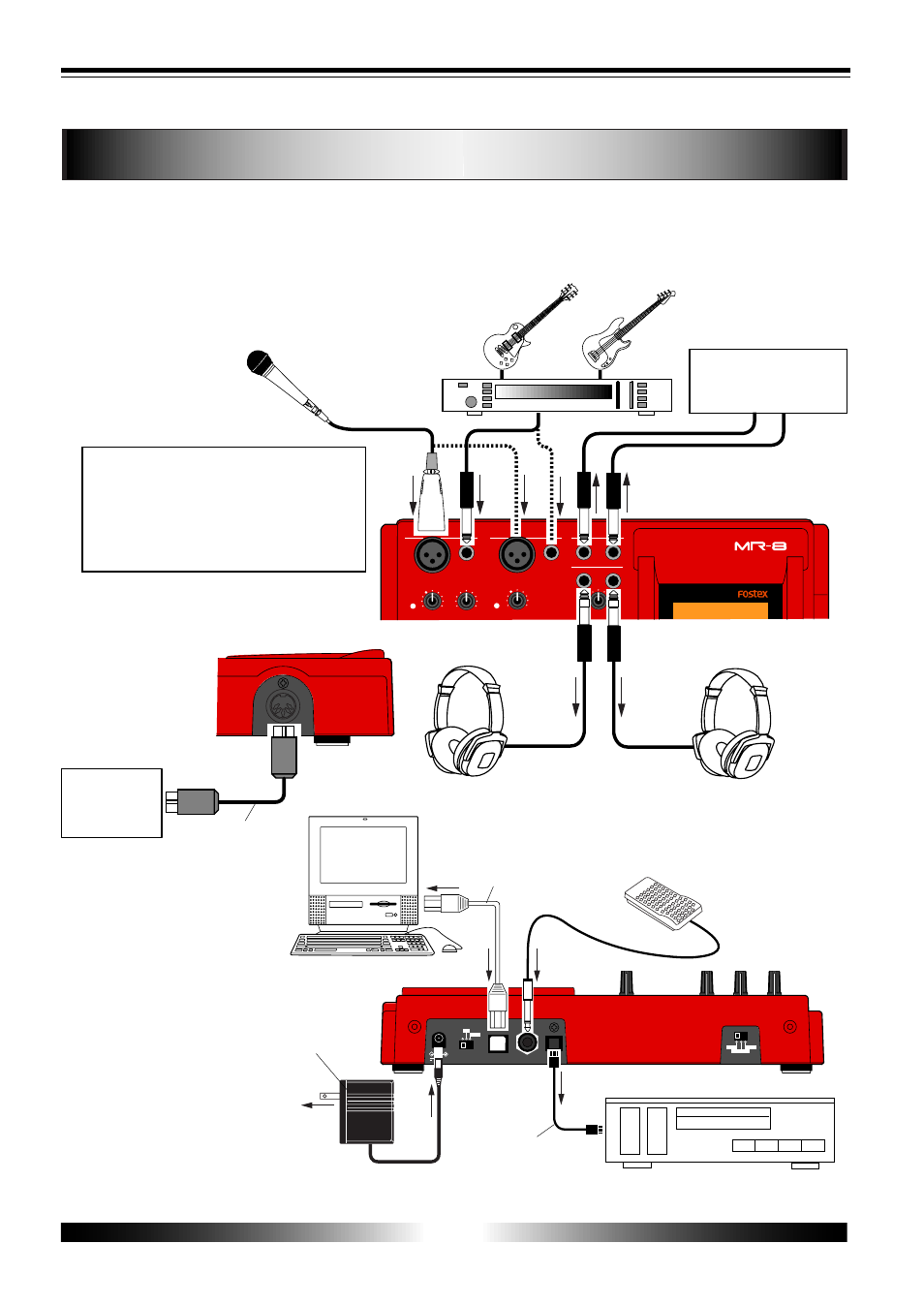

Connections
You can connect sound sources, recorders, a monitor amplifier, headphones, a personal computer, etc.
to the MR-8, as show in the figure below. When making connection or disconnection, make sure that
the [MASTER] fader and [PHONES VOL] control are turned down. Otherwise, the noise generated when
making connection or disconnection may damage external equipment.
On each input section, the [UNBAL]
phone connector takes priority to the
[BAL] XLR connector. You cannot use
both the [UNBAL] and [BAL] connectors
on the same section simultaneously.
Model AD-12A
