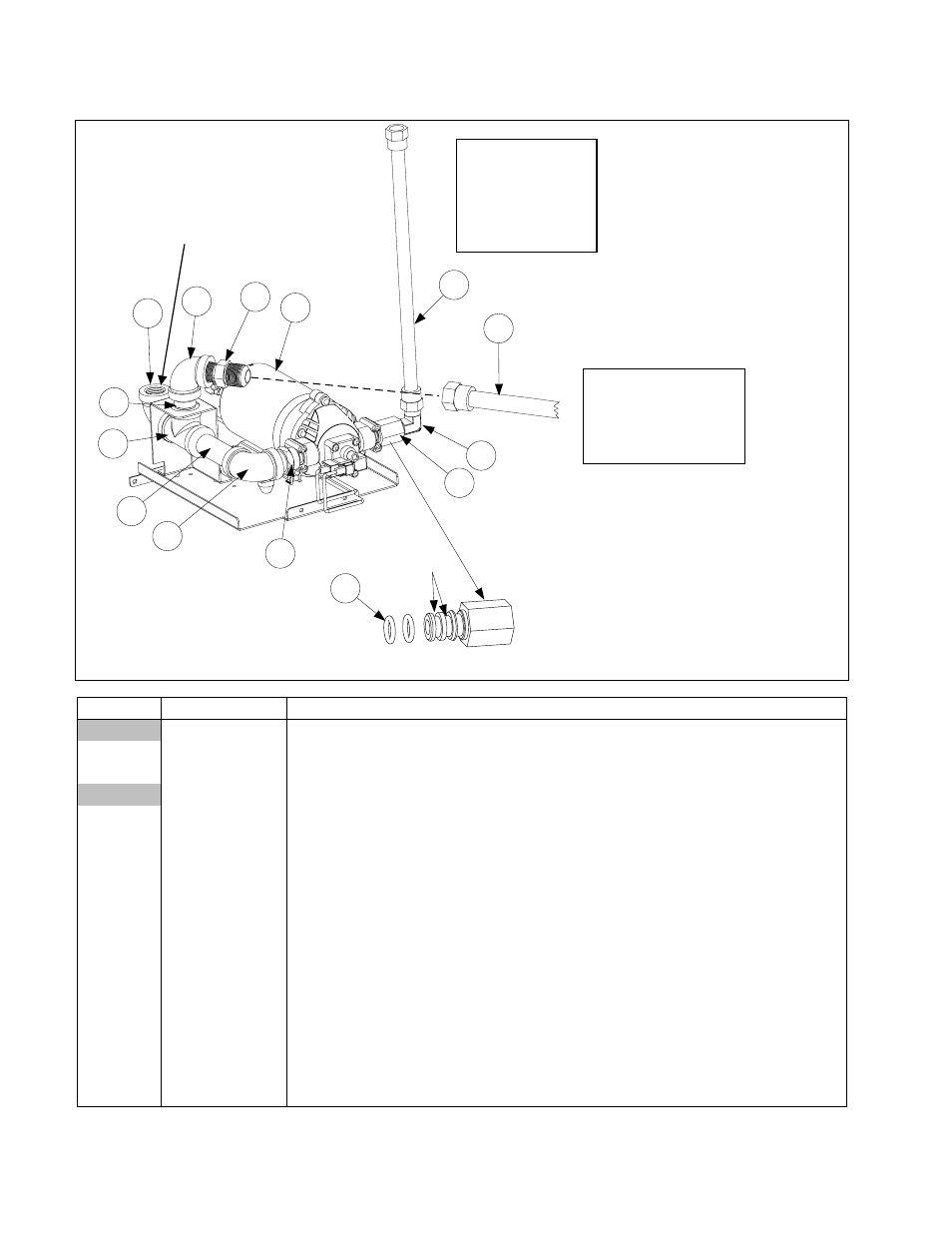

2.9.5 ATO Pump Assembly Service Kit (Larger Top Off Lines)
INSTALL
O-RINGS
HERE
5
4
6
3
2
1
13
7
8
9
10
11
7
12
ITEM PART # COMPONENT
108-3041 Kit, Pump BIELA Topoff Service Kit
√ 1 108-0639 Pump, Shurflo 24VAC
2 810-3265 Flexline, ½” OD x 24-inch (Out to oil return manifold)
810-3591 Flexline, ½” OD x 8-inch (Out to oil return manifold two battery only)
* 810-0667 Check valve, ½ NPT 1 PSI
3 810-1069 Flexline, ⅝” OD x 29.5-inch (In from RTI fresh oil solenoid) Domesti
units only
4 810-3666 Fitting, Shurflow Pump
5 816-0782 O-Ring, Viton #111
6 813-0940 Elbow, ¼” NPT x ⅜ Flare
7 813-0062 Elbow, ½” BLK 90° NPT BM
8 813-0087 Nipple, ½” x 1.50-inch
9 823-8063 JIB Connection Topoff Welded Assy.
10 813-0165 Elbow, Street ½” x ½” NPT 90° BM
11 813-0247 Nipple, ½” x 3.50-inch NPT BM
12 108-2054 Fitting Assy Shurflow
13 810-1668 Adaptor, Male ⅝” OD x ½”
* 813-0907 Cap 15/16”
* Not illustrated.
√ Recommended parts.
Item 2 connects
to a check valve
before going
into the oil
return manifold.
JIB hose
connects here.
Item 3 on this page
and Item 8 on the
following page are
the same part.
