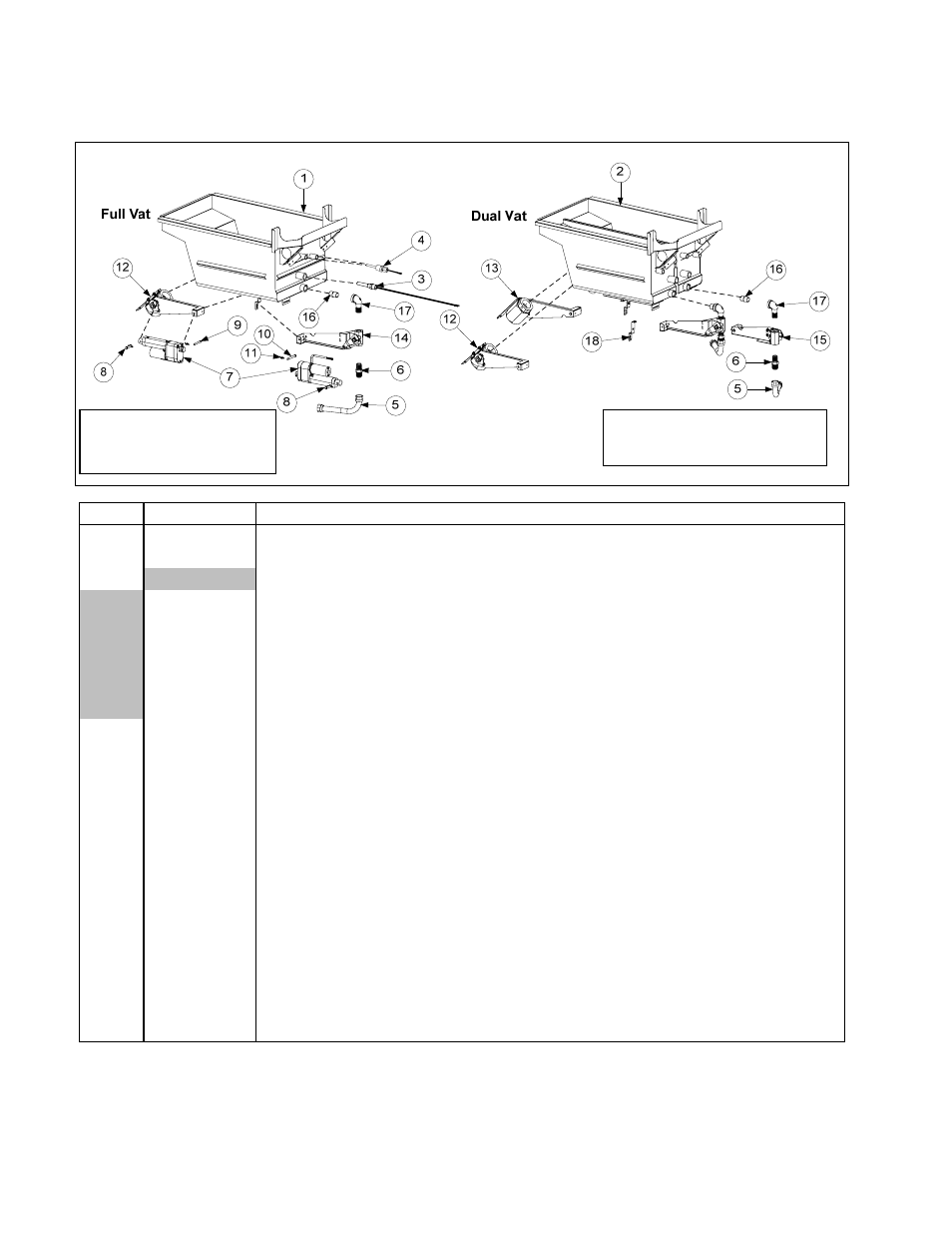

2.6 Frypot Assemblies and Associated Parts
2.6.1 Frypots with Linear Actuators
ITEM PART # COMPONENT
1 823-7436 Frypot, Full-Vat LOV™
2 823-7437 Frypot, Dual-Vat LOV™
√ 3 Thermostat Assembly, High-Limit Long Standard
826-2454 Non-CE Full Vat 425°F (218°C) (17kW FV and 14kW FV) (Color Coded
Black 806-7543)
826-2456 Non-CE Dual Vat 435°F (224°C) (22kW, 17kW DV and 14 kW DV)
(Color Coded Red 806-8035)
826-2455 CE Full and Dual Vat 415°F (213°C) (14kW and 17kW CE) (Color-Coded
Yellow 806-8132)
√ 4 826-2706 Probe, Temperature and Fitting Kit AIF/RTD
5 810-1067 Flexline, ⅝” OD x 8.50” Long
6 810-1668 Adaptor, Male ⅝” OD x ½”
√ 7 826-2587 Actuator, Linear AIF 24VDC Kit includes 810-1776
8 809-1012 Pin, Clevis, ¼” x 1¼” (Drain and return valves)
9 809-1035 Pin, Clevis, ¼” x 2¼” (center pin drain actuator)
10 809-1036 Pin, Clevis, ¼” x 2” (center pin return actuator)
11 810-1776 Clip, Toaster Ring
12 108-0698 Valve, Drain Assy. LOV™ FV or DV Right as viewed from front of frypot.
13 108-0697 Valve, Drain Assy LOV™ DV Left as viewed from front of frypot.
14 108-0700 Valve, Return Assy LOV™ FV or DV Right as viewed from front of frypot.
15 108-0699 Valve, Return Assy LOV™ DV Left as viewed from front of frypot.
16 813-0022 Nipple, ½” x Close NPT BM
17 813-0165 Elbow, St. ½” x ½” NPT 90°
18 220-5960 Strap, Elec LOV™ Actuator
√ Recommended parts.
See Page 2-5 for Drain
Valve Assemblies. See Page 2-24 for Return
Valve Assemblies.
