2-3
2.3 Drain System Components

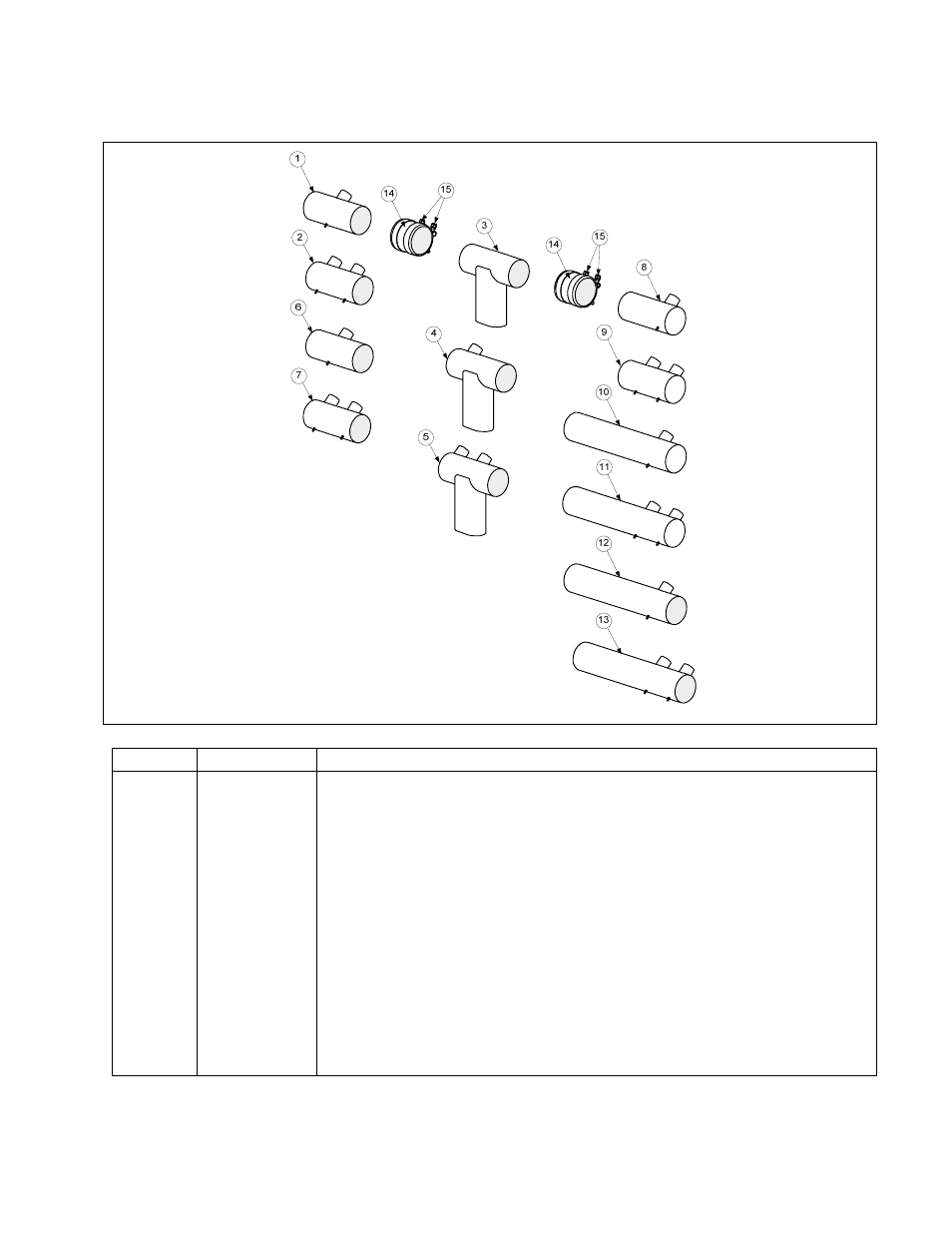

2.3.1 Drain Tube Sections and Associated Parts
ITEM PART# COMPONENT
1 823-6020 Drain Tube, Full-Vat Left Closed/Right End Open
2 823-6112 Drain Tube, Dual-Vat Left Closed/Right End Open
3 108-1874 Drain Tube, Dump (Use 108-1882 for French Unit)
4 108-1876 Drain Tube, Full-Vat 2 Bat. Dump Left Closed/Right End Open
5 108-1878 Drain Tube, Dual-Vat 2 Bat. Dump Left Closed/Right End Open
6 823-6019 Drain Tube, Full-Vat Left and Right Open
7 823-6021 Drain Tube, Dual-Vat Left and Right Open
8 823-6240 Drain Tube, Full-Vat 2 Bat. Left Open/Right End Closed
9 823-6242 Drain Tube, Dual-Vat 2 Bat. Left Open/Right End Closed
10 823-6202 Drain Tube, Full-Vat Left Open/Right End Closed
11 823-6114 Drain Tube, Dual-Vat Left Open/Right End Closed
12 823-6117 Drain Tube, Full-Vat Left and Right Open
13 823-6115 Drain Tube, Dual-Vat Left and Right Open
14 816-0772 Sleeve
15 809-0969 Clamp
* 816-0630 Vinyl Cap
* 810-3531 Valve, Check 20 PSI RTI bypass
* Not illustrated.
See Section 2.3.2 for Drain Valves
