3-1
3. PLOTTER OPERATION
3.1 Plotter Displays
You may show the plotter display over the entire screen, in the overlay screen
with the radar display, or in a combination screen.

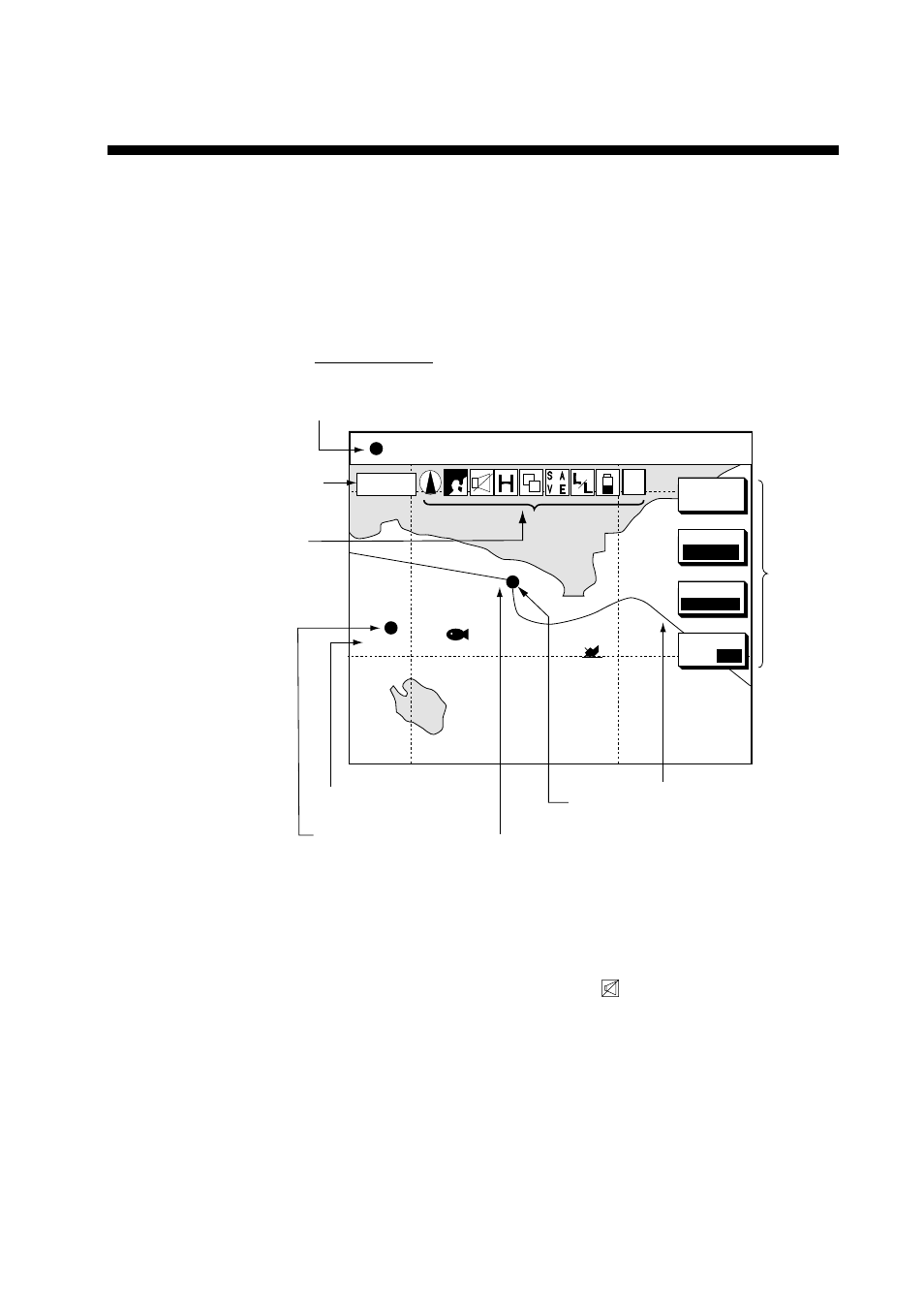

3.1.1 Full-screen plotter display
34
°
22. 3456'N 359.9
°
M
TRIP
NU
080
°
22. 3456'E 19.9 kt 99.9 nm
BRIDGE
FISH
002WPT
MARK
ENTRY
MODE
NTH UP
NAV
POS
D. BOX
ON/ OFF
Nav data window
(Data changes with NAV soft
key setting and cursor
status. For details see next page.)
Course bar
Soft keys
Track
Own ship
marker
Icon (from left)
North Marker
Chart
Alarm
Track Hold
Chart Offset
Save
L/L Offset
Battery
Simulation
(See icon
table on
page A-12
for details.)
Waypoint name
Waypoint marker
Scale 16.0nm
S
I
M
Full-screen plotter display
Note: When GPS signal error is found, the following occurs depending on the
device feeding position data:
GPS Receiver GP-310B/320B: Alarm icon ( ) appears and the aural
alarm sounds. Own ship marker blinks faster.
Other navigator:
The message “NO GPS FIX” appears and is
accompanied by the aural alarm and alarm icon. If the GPS signal is
missing for more than 90 seconds, the message “NO POSITION DATA”
appears.
