1. OPERATIONAL OVERVIEW
1-10
1.5.2
Selecting a display
1. Press the [DISP] key to show the display selection window. The icons of
modes not available are shaded. HOTPAGE 1-HOTPAGE 6 are
user-arrangeable displays called “hot pages,” which you can configure as you
like. For further details, see the paragraph “5.6 Hot Page Setup.”
RADAR PLOTTER SOUNDER NAV DATA OVERLAY EXT VIDEO WX FAX
· TURN KNOB TO SELECT MODE
AND PUSH KNOB TO ENTER.
· PUSH ANY SOFT KEY TO
SELECT IMAGE SOURCE.
Basic display
screens
Hot pages
Selected
item
HOTPAGE 1 HOTPAGE 2 HOTPAGE 3 HOTPAGE 4 HOTPAGE 5 HOTPAGE 6

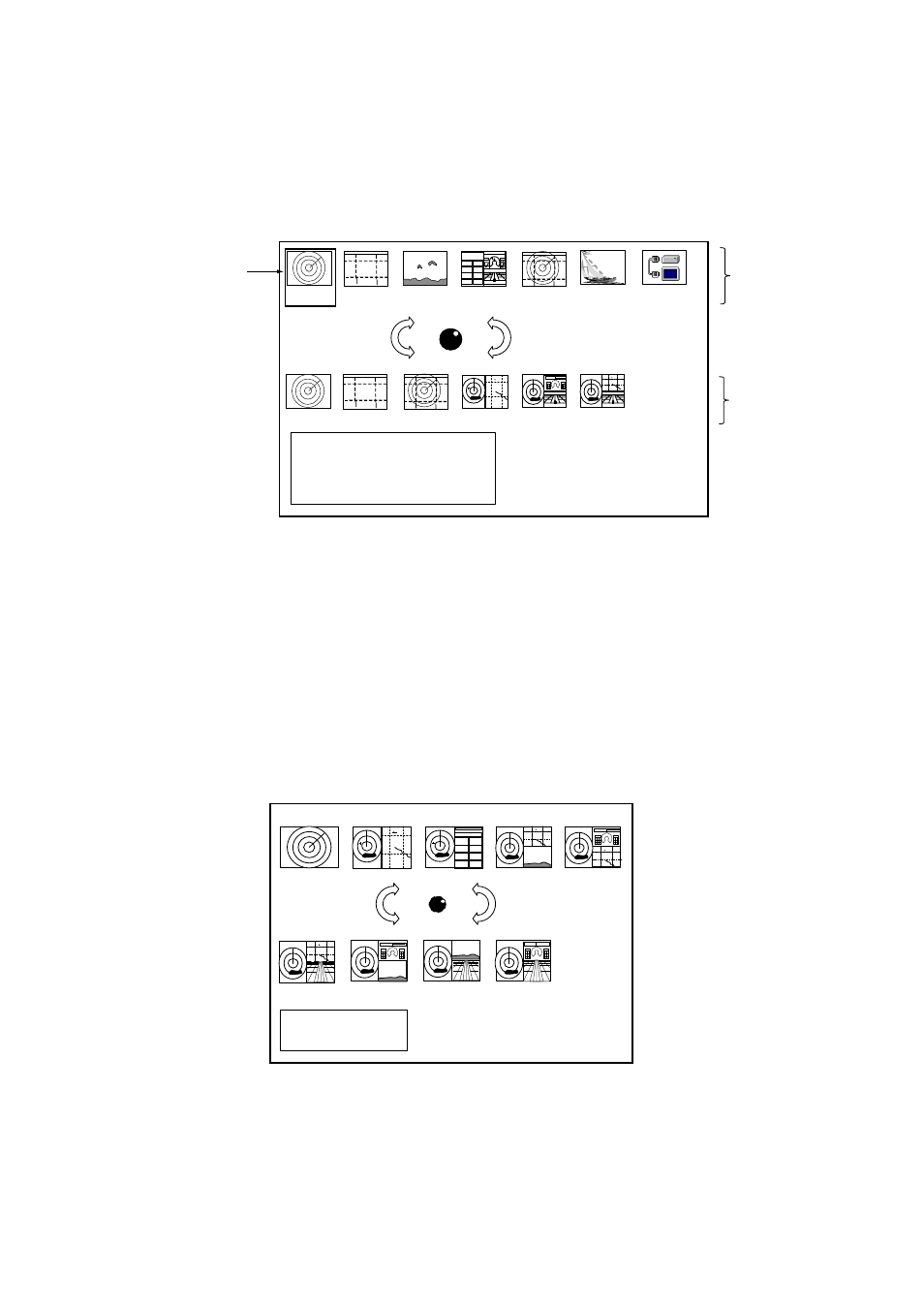

Display screen selection window
Note: “WX FAX” is available only when the facsimile receiver FAX-30 is
connected. If “AUX SOURCE IS DISCONNECTED. PUSH ENT KNOB TO
EXIT.” appears, press the [ENTER] knob and select other item.
2. Rotate the [ENTER] knob to select a basic display screen or a hot page
screen.
3. Push the [ENTER] knob.
4. If you selected a basic display screen, a group of appropriate combination
displays appear. In the example below, the radar combination screens are
shown. When WX FAX is selected at step 2, a combination display does not
appear.
PUSH ENTER KNOB.
Radar combination screen selection window
5. Rotate the [ENTER] knob to select display desired.
6. Push the [ENTER] knob to finish.
