FR-2 Field Memory Recorder (Chapter 3: Names and functions)
37
12V
DC IN
3
2
1
COLD
GND
HOT KEYBOARD PC ONLY
USB
ONLY
DIGITAL
OUT IN
27
28 29 30 31

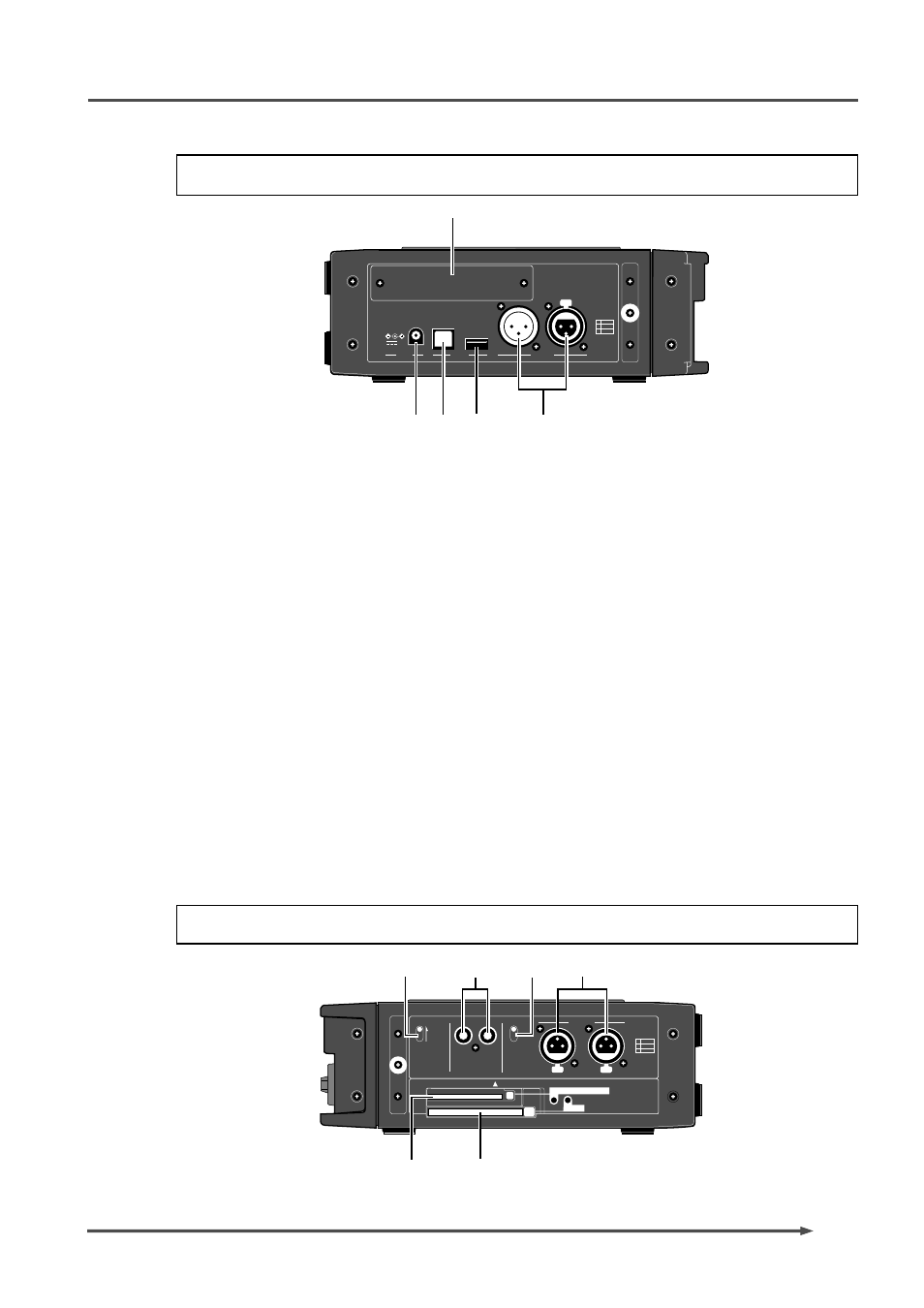

27) Slot (for the optional card)
Prepared for the optional TC IN/OUT card (available soon).
Ask your local Fostex dealer or sale office for installing the optional card.
28) [DIGITAL IN]/[DIGITAL OUT] connectors
Both connectors handle AES/EBU or S/P DIF digital audio signals.
The digital input signal format is automatically detected.
The digital output signal format can be selected using the "DigiOutType" menu item on the
"Setup" menu in the MENU mode. See "Setting the digital output signal format" on page 91
for details.
29) [USB (KEYBOARD ONLY] port
This port is exclusively used for connecting a USB keyboard. By connecting a USB keyboard
to this port, you can edit file and cue point names.
See "Basic connection" on 46 page and the "Selecting the USB keyboard type" on page 93.
30) [USB (PC ONLY)] port
This port is exclusively used for connecting a PC. By connecting a PC to this port, you can
transfer audio files between the unit and PC.
For details about the file transfer, see "Chapter 7: Exporting files to a PC" on page 97.
31) DC IN jack
This port is used to connect the optional AC adaptor (Model AD12-1300).
R L/MONO
ANALOG IN POWER ANALOG OUT
L/MONO
PHANTOM
3
2
1
COLD
GND
HOT
ON
OFF
COMPACTFLASH CARD
PCMCIA
32 33 34 35
36 37
Left side panel
Right side panel
