4-1
4. CONNECTING EXTERNAL
INTERFACE CS-120A
The External Interface CS-120A functions to enable upgrading from a past CSH series sonar.
However, we recommend that you connect external devices directly to the processor unit, to
avoid signal delay. Connect echo sounder and net sonde directly to the processor unit.
Install the following power supply kit (option) in the processor unit to enable use of the
CS-120A.
Name:
Power Supply Kit
Type: FSV-2403
Code No.: 000-067-013
Name Type Code No. Qty Remarks
Power supply pcb LEA50F-24-XFND 000-143-913 1
Spacer SQ-22 000-802-742 4
Protection sheet 10-071-3508 100-290-712 1
Screw M3
×8 C2700W
000-881-404 4
Connector(NJC) NJC-203-PM 000-506-702 1

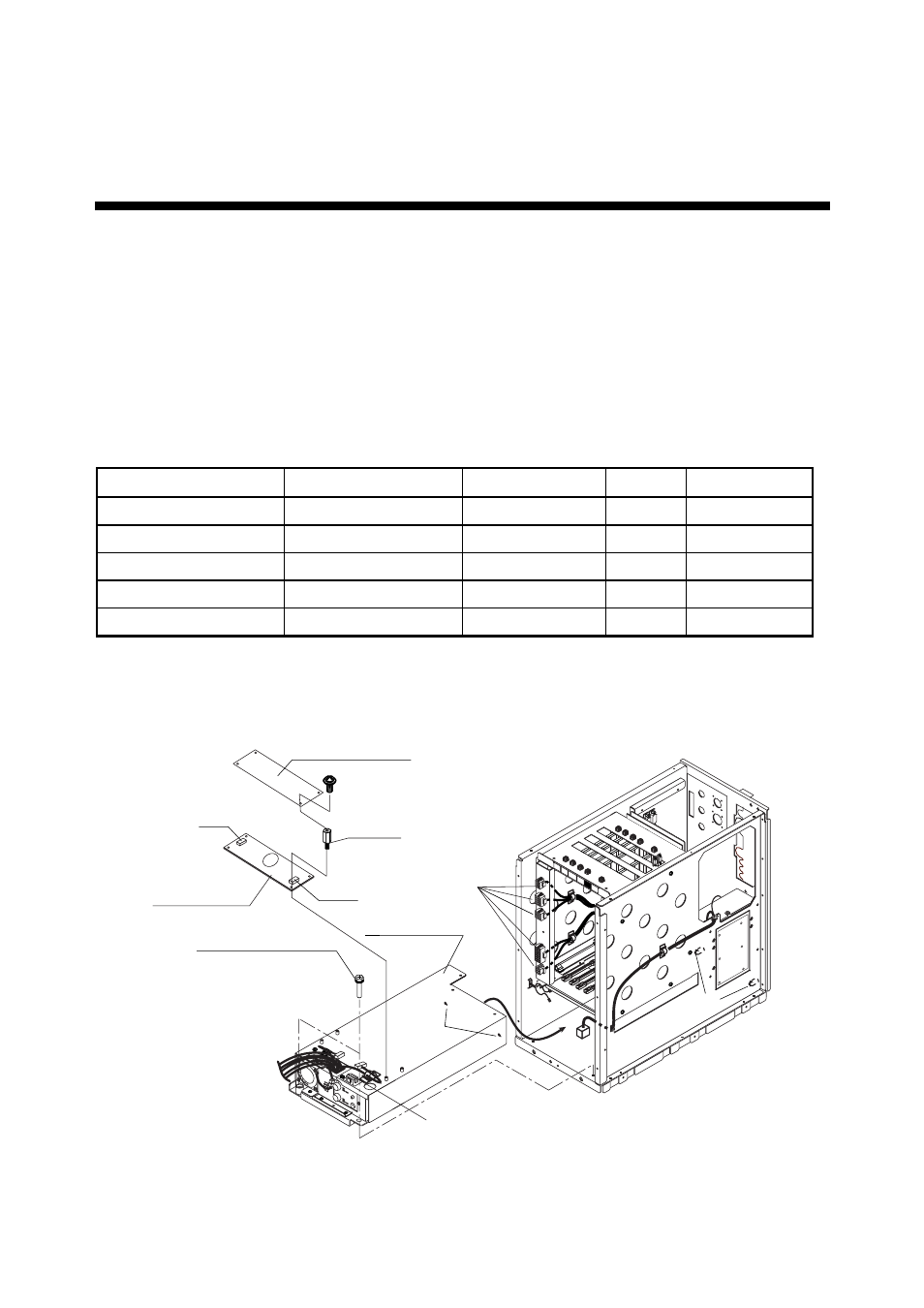

1. Unfasten seven screws to remove the front cover of the processor unit.
2. Unfasten two upset screws, detach the plugs J503, J502, J501, J504, J506 and J507,
and then pull out the power module.
IFE S SC AN SC AN 2D UA L
DC ON
Power Module
VH4P
VH5P
Upset screws
M5x25 SUS 2 pcs.
Protection sheet
Power supply
pcb
Spacer
Detach J503, J502,
J501, J504 and
J506.
Detach J507.
Hole
Pin
Processor unit, front view
