2-9
2.4.1 Cable from transceiver unit
This cable (10S1258) runs between the processor unit and transceiver unit (FSV-841). Pass
it through the cable clamp in the processor unit and connect it to CN-A101 on the CONE
Board.
8 9
10
11
12
13
14 15
16
17
18
19
7
2
3
4
5
6
Armor
Shield
1. BLK
2. BLK/BRN
3. BLK/RED
4. BLK/ORG
5. BLK/YEL
6. BLK/GRN
7. BLK/BLU
8. BLK/PPL 9. BLK/GRY
10. BLK/WHT
11. BRN/RED
12. BRN/ORG
13. BRN/YEL
14. BRN/GRN
15. BRN/BLU
16. BRN/PPL 17. BRN/GRY
18. BRN/WHT
19. RED/ORG
1
Anticorrosive Sheath
1: Coaxial cable
2 to 19: Twisted pair cable

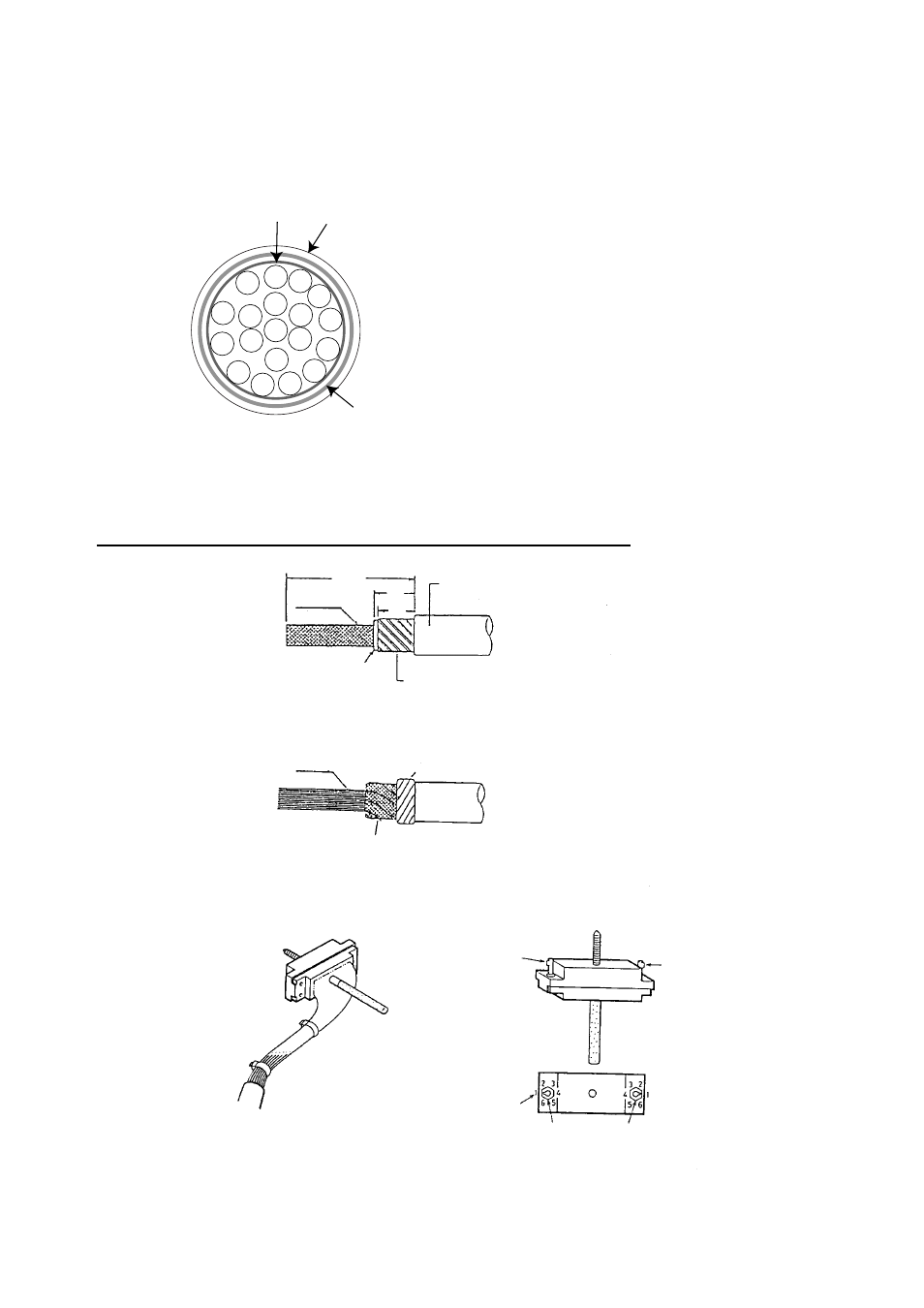

Cable type 10S12581, sectional view
Fabrication of 38P connector 00-8016-038-313761HV (CN-A101)
320
45
40
Shield
Anticorrosive
Sheath
Armor
Vinyl Sheath
Core
Insulating Tape
After exposing cores,
wind shield around the armor.
Fabrication of cable for 38P connector 00-8016-038-313761HV
Guide Pin A
Guide Pin B
Guide Pin B
(Small) Guide Pin A
(Large)
Position No.
Assembling 38P connector
