1-16

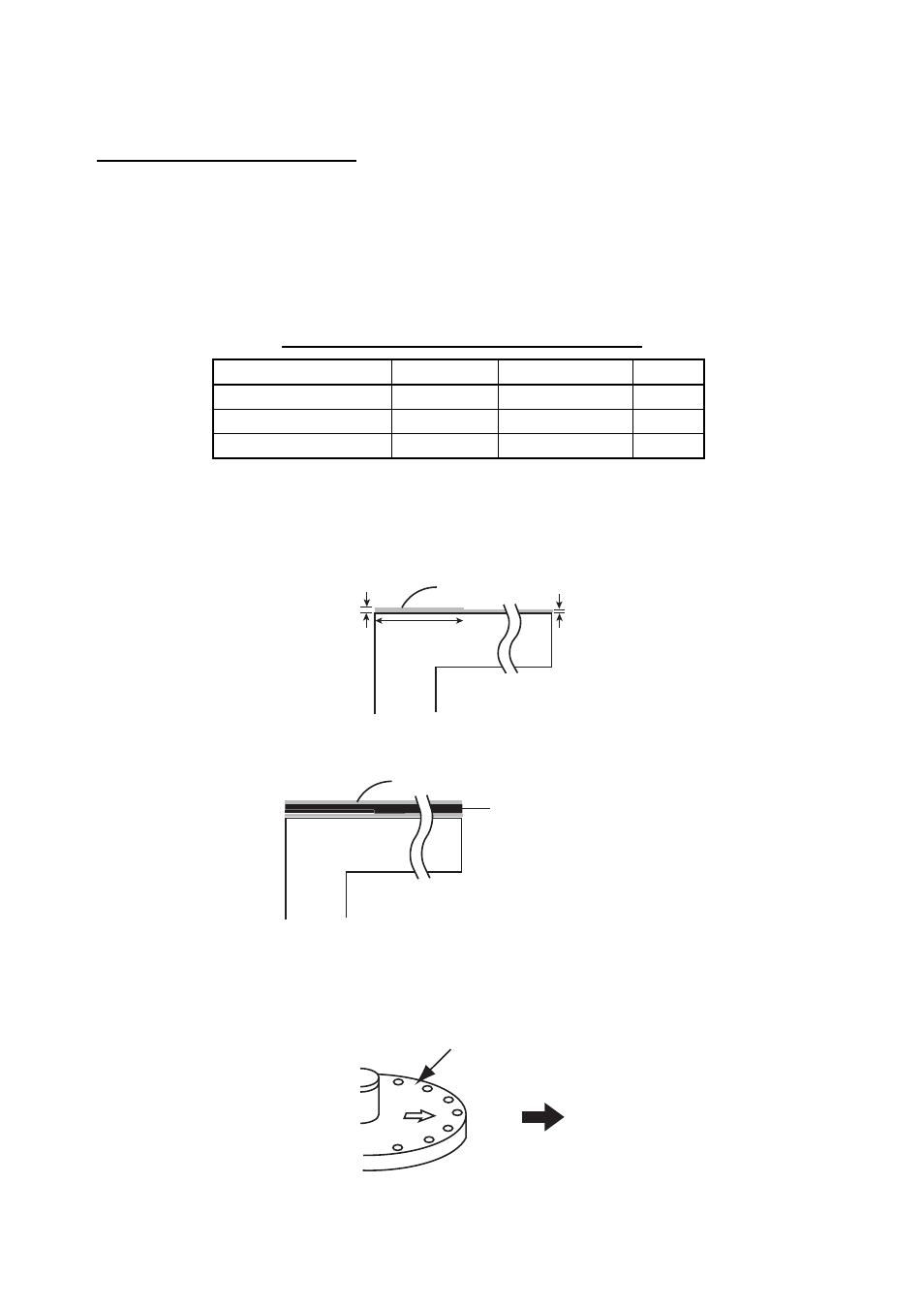

1.7 FRP Tank (option)
Caution for installing FRP tank
Use an FRP tank supplied by FURUNO. Other makes of tank may be used, however
watertightness cannot be guaranteed. A non-FURUNO make of tank should meet the
following requirements:
- The surface of the FRP tank flange must be flush (within 0.5 mm) with tank.
- Use the sealant recommended by shipyard.
Contents of FRP retraction tank installation kit
Name Type Code No. Qty
Retraction Tank (FRP) OP10-29-1 007-022-920 1
Waterproofing Gasket SHH-0003-1 660-800-031 1
Three Bond 1101 200G 000-854-101 1
Fasten the hull unit to the retraction tank (after installing the retraction tank) as follows:
1. Clean the surface of the tank flange. Coat the flange with about 1mm thickness of
sealant (Three Bond, supplied). USE ONLY THE SUPPLIED SEALANT.
Sealant
FRP tank
1 mm
100 mm
2 mm
2. Lay the waterproofing gasket on the tank flange and coat the gasket with about 1 mm
thickness of sealant.
Waterproofing gasket
FRP tank
Sealant
Note: Use only specified waterproofing gasket.
3. Orient the bow mark (arrow) on the hull unit flange toward ship’s bow. (If the mark cannot
be perfectly oriented toward ship’s bow, adjust heading after installation, as shown later
in this manual.
Flange
BOW
