1.5 Transceiver Unit
The length of the cable between the transceiver unit and the hull unit is 5 m, so choose a
mounting location within 5 m of the hull unit. The transceiver unit should be fixed to a
mounting base (shipyard supply) whose dimensions are as shown in the outline drawing at
the back of this manual. Reinforce the transceiver unit against vibration by stays extending
from the eyebolts on the top of the unit. Fasten four bolts (M12, local supply) at the bottom
of the transceiver unit to fix the unit to the mounting location.
GROUND
TERMINAL
CABLE CLAMP
CABLE
ENTRANCE
MOUNTING BASE
(shipyard supply)
CABLE ENTRANCE
(mounting base)
EYE BOLT
(4 pcs.)
CABLE CLAMP
GND TERMINAL

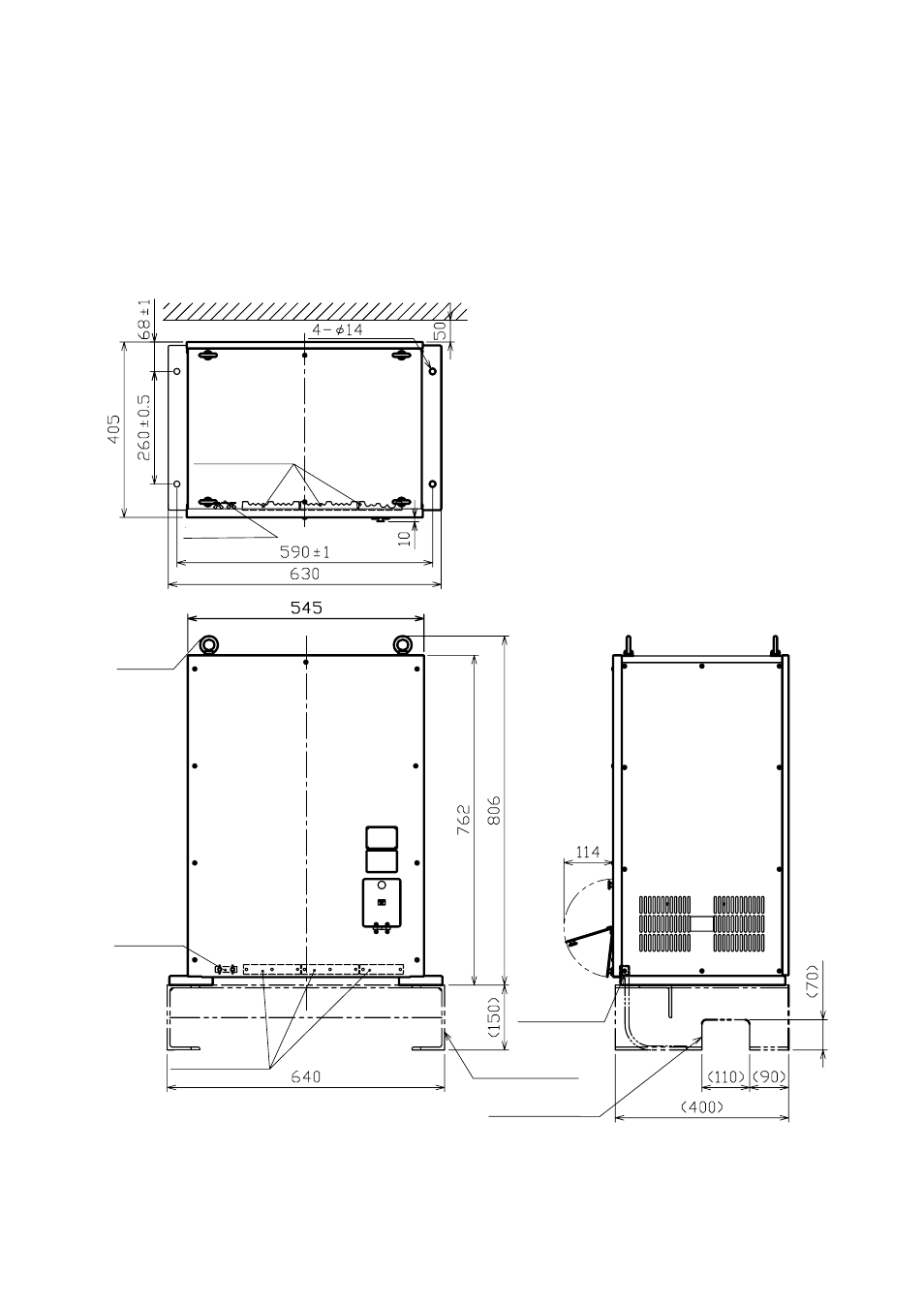

Mounting dimensions for transceiver unit
