2-3
Transducer cable

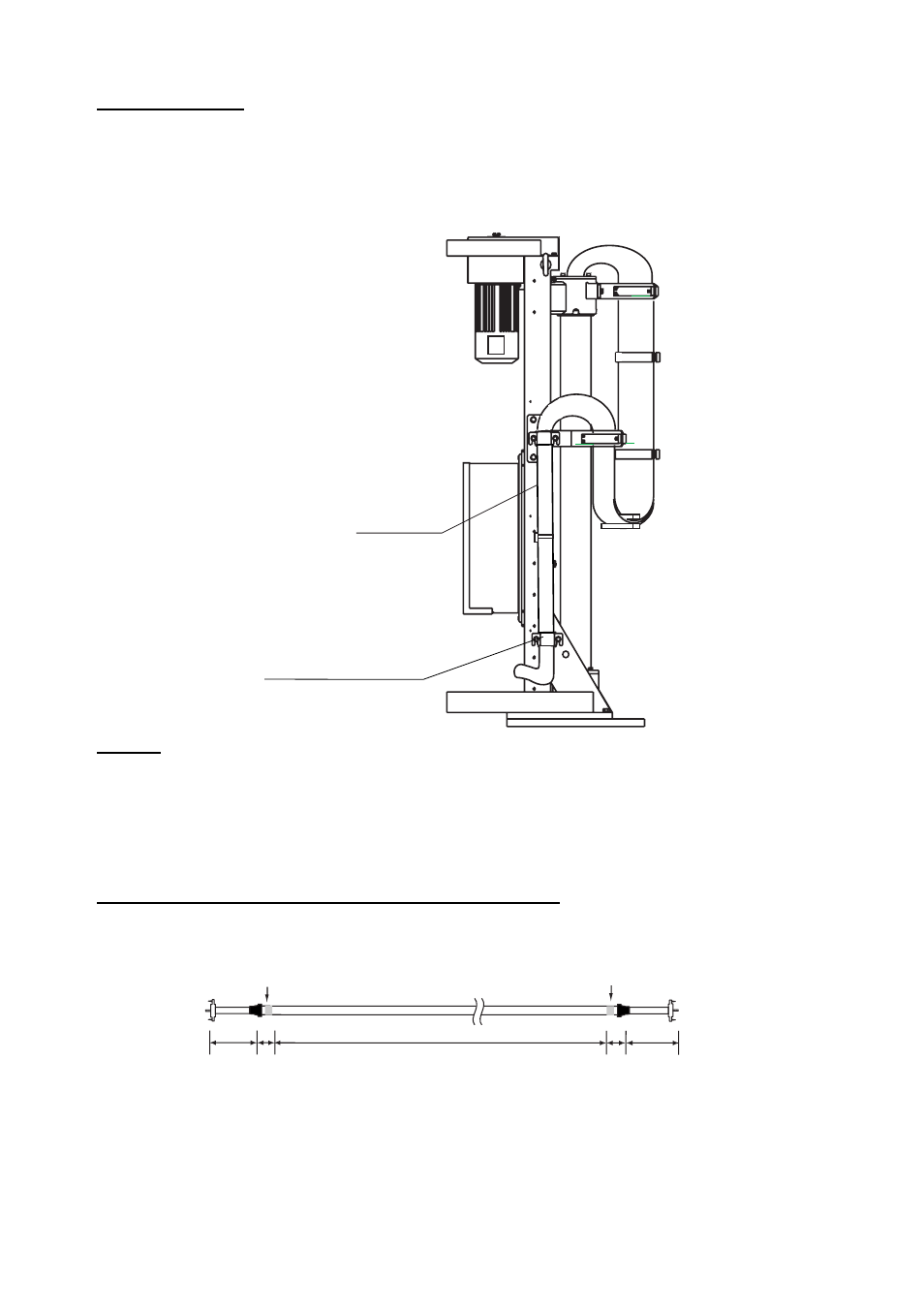

If the transducer cable is not quite long enough, unfasten the cable clamp shown in the
figure below to release the cable. This will allow a separation of 5 m between the hull unit
and transceiver (or junction box). With the cable fastened by the cable clamp, the units may
be separated from each other up to 4.5 m.
Transducer
cable
Unfasten this cable clamp.
Ground
Ground the processor unit and the hull unit, using an IV-8SQ wire or copper strap, to prevent
electrical shock. The monitor unit and transceiver unit also must be grounded, also with an
IV-8SQ wire or copper strap. Both the transceiver unit and the junction box (option) are
supplied with a copper strap.
Cable (10S2078) between hull unit and transceiver unit
The length of the cable between the hull unit and transceiver unit is 8 m. Arrange it as shown
below.
Transceiver unit
side Raise/lower control box
of the hull unit side
Clamp point
10S2078 (8 m)
0.38 m 7.2 m 0.28 m
0.07 m 0.07 m
Clamp point
