PART NAMES AND FUNCTIONS
Front
1 Power indicator lamp
This lamp shows the state of the power supply.
Lit (red): Standby
Lit (green): Power ON
Lit (orange): Power saving (DPMS: Power saving
function) mode ON
Flashing (red): Malfunction (Flashes differently depending
on the type of malfunction. See P. 40 for
more information.)
2 Remote control signal receiver
Receives signals from the remote control.
3 Power button [POWER]
Turns the power ON or OFF.
4 Input mode selector button [MODE]
Switches between picture input modes.
5 Wide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
6 Menu button [MENU]
Displays picture adjustment menus.
7 Adjustment buttons [ / ]
The [ / ] buttons can also be used to scroll through options
when a menu is displayed.
8 Adjustment buttons [ / ]
The [ / ] buttons can also be used to scroll through options
in a menu, or to change values.
9 Set button [ENTER]
Press this button to finalize the selection of a desired option in
a menu.

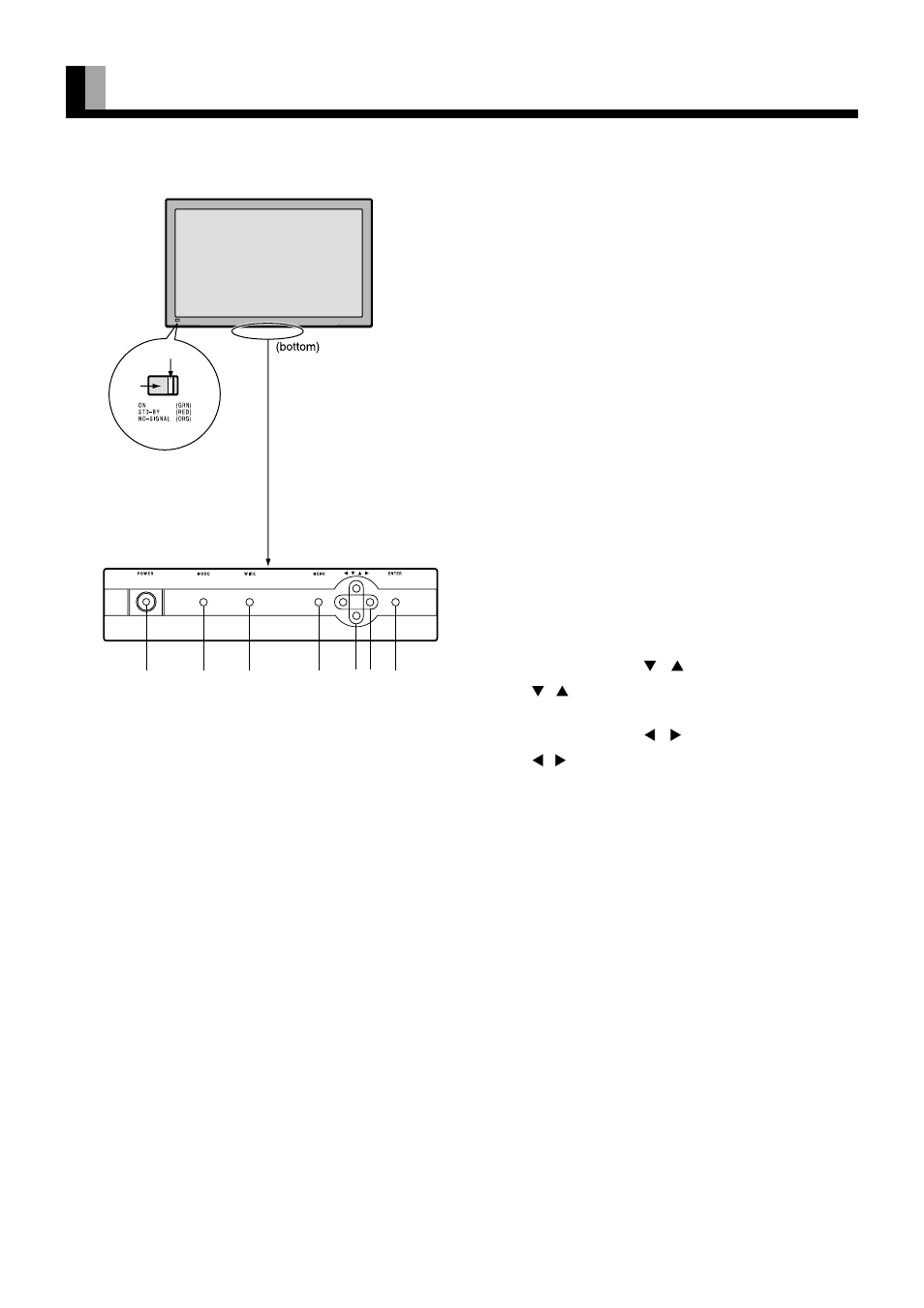

Control Panel (bottom)
Warning
If the power indicator lamp flashes red, this signifies that the display has developed a problem. When this happens, be sure to remove the
power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.
2
1
3 4 5 6 9 78
