Page 32

1234567890123456789012345678901

* On-screen information disappears if you do not take any action for about 60 seconds.

* The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode,

: S-video mode,

: Comp.video mode,

: RGB-PC mode,

: Decoder mode

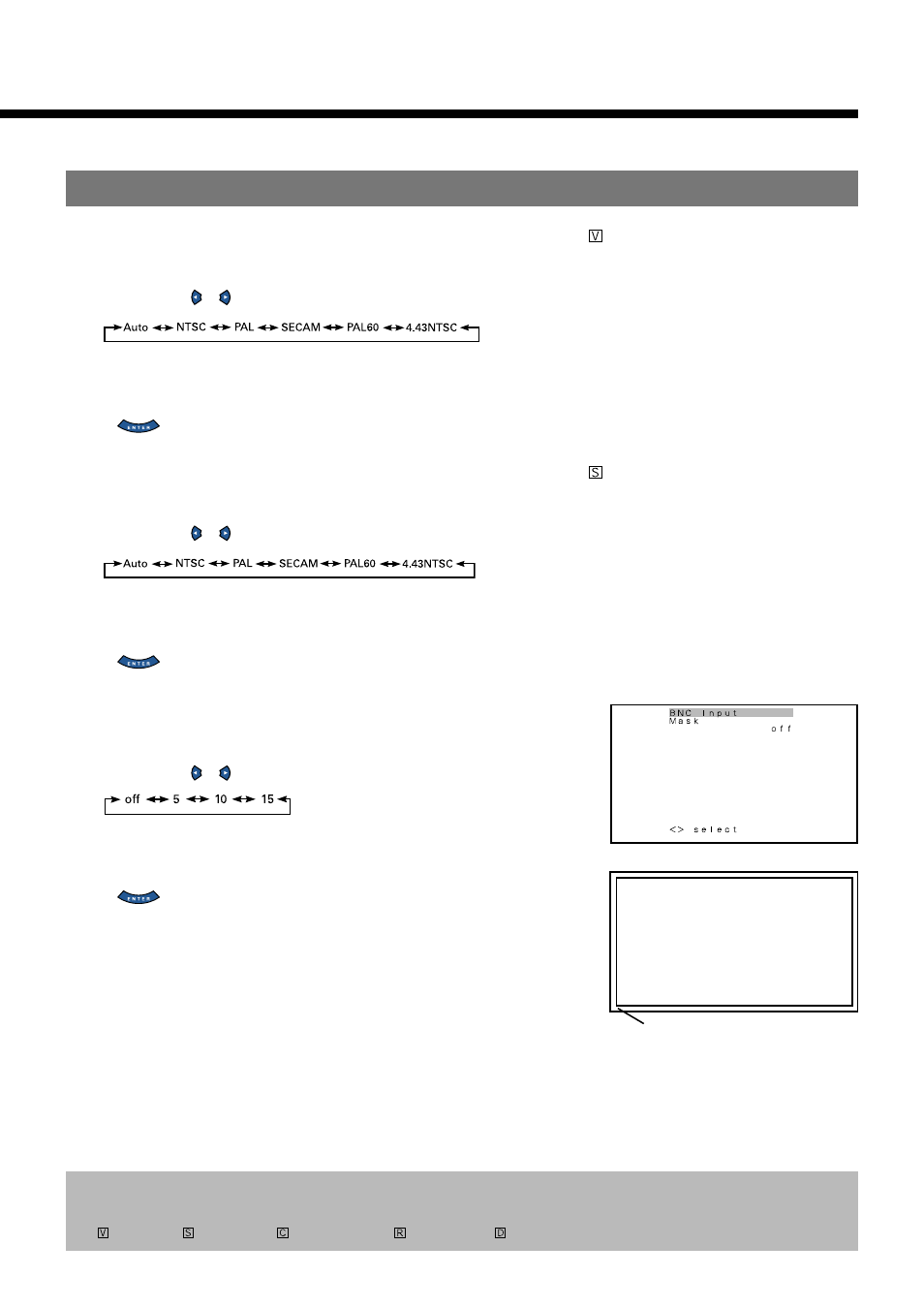

• Selecting Video Mode (Video Input)

You can use this option to select the desired video mode of pictures it will receive to the Video Input

terminal.

Each time you press or

, one of the available modes appears in the following sequence:

Auto: Automatically selects the video system.

(Does not automatically select other signal than NTSC, PAL and SECAM.)

Other than Auto: You need to select a system appropriate to the input signal.

Press

to store.

• Selecting Video Mode (S-Video Input)

You can use this option to select the desired video mode of pictures it will receive to S-Video Input

terminal.

Each time you press or

, one of the available modes appears in the following sequence:

Auto: Automatically selects the video system.

(Does not automatically select other signal than NTSC, PAL and SECAM.)

Other than Auto: You need to select a system appropriate to the input signal.

Press

to store.

• Masking BNC Input (Comp. Video Input) (BNC-Input) All modes

You can use this option to mask the signal it will receive to BNC-Input Terminal(Comp. Video

Input).

Each time you press or

, one of the available choices appears in the following sequence:

Off:

Does not mask.

Number: Masks the fringe (top, bottom, right and left) of the screen by the number of pixels

specified.

Press

to store..

* Depending on the input signal, unnecessary information may be displayed in the fringe of the

screen. Setup mask if you do not want to see such information.

INPUT TERMINAL

"BNC-Input" selection screen

This fringe part is masked.
