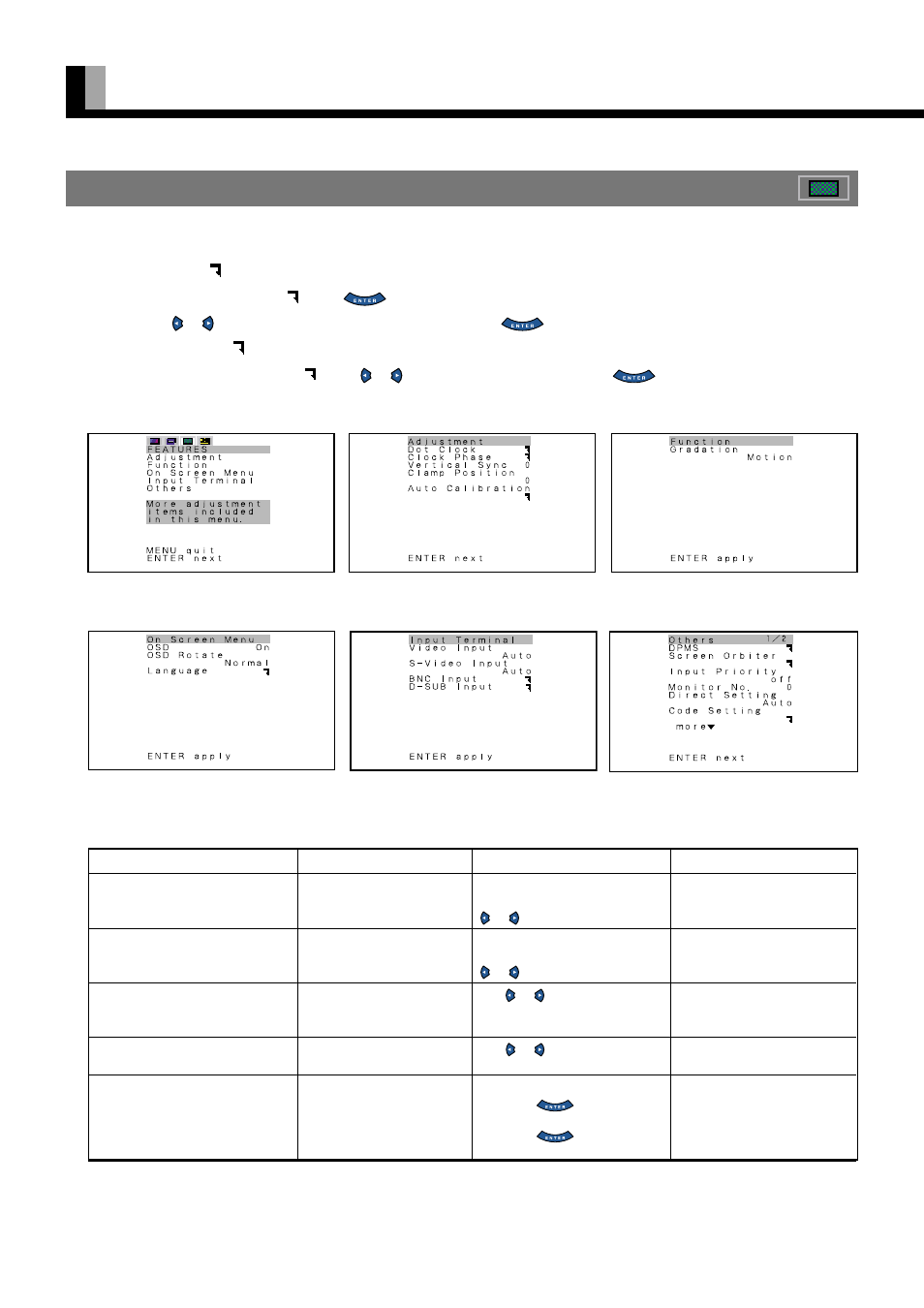

background image

20

USING THE FEATURES MENUS

• FEATURES setup screen has 5 options of Adjustment, Function, On Screen, Input Terminal and Others.

• Options with “ ” on the right

When you select an option with “ ”, press

. The adjustment/setup screen for that option appears.(See P. 28–36.)

You can use or on this screen to make selections or changes.Press

to store.

• Options with no “ ” on the right

When you select an option with no “ ”, press or to make selections or changes. Press

to store. (See P. 28–36.)

FEATURES Menu

FEATURES Menu screen (RGB Input
Mode)

Adjustment Menu screen

Function Menu screen

HOW TO USE MENUS (Continued)

On Screen Menu screen

Input Terminal Menu screen

Others(1/2) Menu screen

Adjustment Menu (See P. 29.)

Option

(1) Dot Clock
(for RGB)

(2) Clock Phase
(for RGB)

(3) Vertical Sync
(for RGB)

(4) Clamp Position
(for Comp.video, RGB)

(5)Auto Calibration
(for RGB)

Function

Adjusts the dot clock.

Adjusts clock phase.

Corrects vertical
synchronization signal.

Adjusts clamp pulse phase.

Selects the optimum
dynamic range of images.

Operation

Eliminates blur when the
optimum value is selected with

or .

Eliminates blur when the
optimum value is selected with

or .

Use or to select the
optimum value for eliminating
flicker.

Use or for switching.

Display Auto Calibration screen
and press

to execute.

Select Execute, and select Yes
and press

to execute

Auto Calibration.

Range

-60 to +60

Auto/Manual
(Can adjust 1 to 32 for

Manual)

-1 to +1

-8 to 8

Execute
Yes/No
