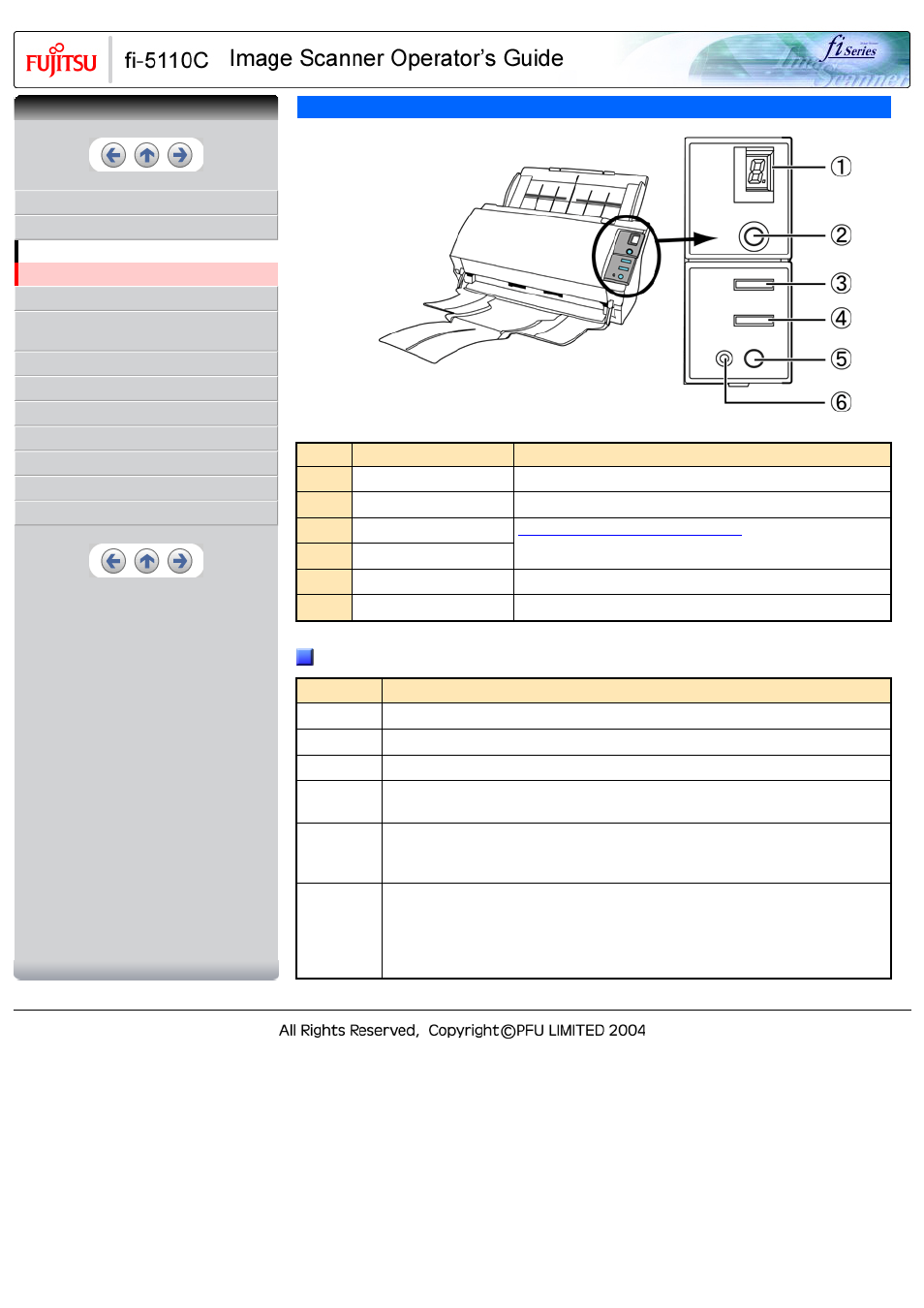

1.2 Functions of the operator panel
No. Name Function
1 Function No. display Indicates the function No. and error status.
2 Function button Changes the Function activated by the Send to button.
3 Send to button Launches the linked application software.
4 Scan button
5 Power button Turns the scanner ON and OFF.
6 LED Lights when the scanner is turned ON.
Indications on the Function Number display
Indication Meaning
8 Blinks only one time upon turning on the scanner.
P Indicates that the scanner has been turned ON and is being initialized.
0 Indicates that initialization will soon end.
1 Indicates that initialization has ended successfully.
The scanner is now in "Ready Status".
U Indicates that a temporary error occurred when documents were being scanned. A number
appearing in alternation following the U (i.e. 1, 2 and 4) refers to the type of error.
To return the scanner to the ready status ("1"), press "Scan" or "Send to" button.
E Indicates that a device (hardware) alarm has occurred during scanning of documents.
"E" and the alarm Number (2 to 9 and c ) will appear alternately.
To return the scanner to the ready status ("1"), press "Scan" or "Send to" button.
If this alarm occurs, turn the power off and on again. If the alarm continues after turning the
power on again, contact your service engineer.
