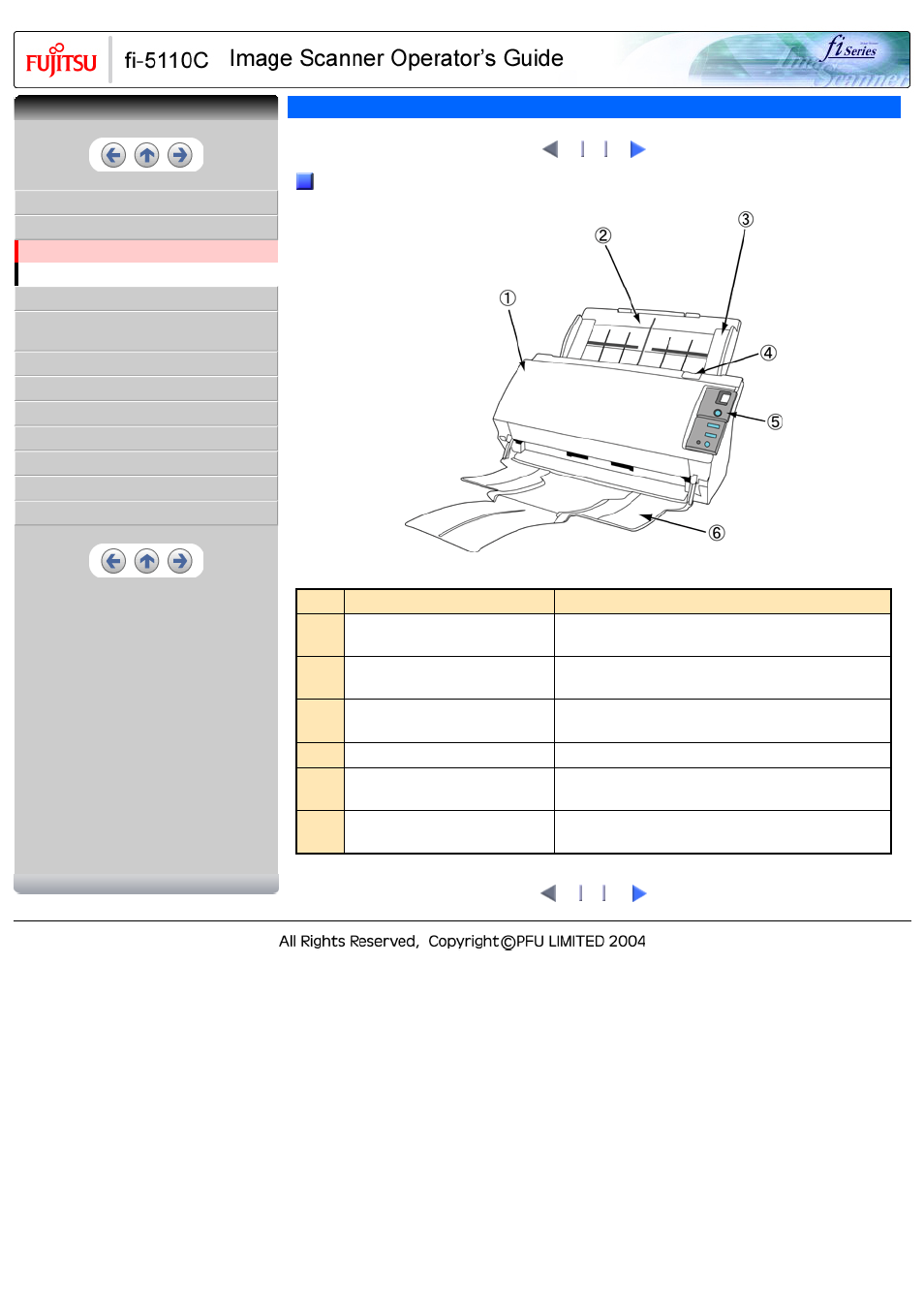

1.1 Names and functions of parts
1 2 3
Front view
No. Name Function
1
Automatic document feeder(ADF) It transports the document to the reading position
automatically.
2
ADF paper chute Holds in place the document pages / sheets that are fed
into the ADF.
3
Side guide It is adjusted to the width of the paper in order not to scan
skewed pages.
4 ADF open lever Pull this lever to open the ADF.
5
Operator panel This panel consists of a Function No. display, four
operating push buttons and a LED.
6
Stacker Scanned documents are ejected from the ADF onto this
tray.
