Furuno NX-300 User Manual
Page 39
3-5
3.
Press the [ENT] key to show the USER DISPLAY menu. The cursor is now on the LARGE
field. LARGE means the center indication on the nav data display.

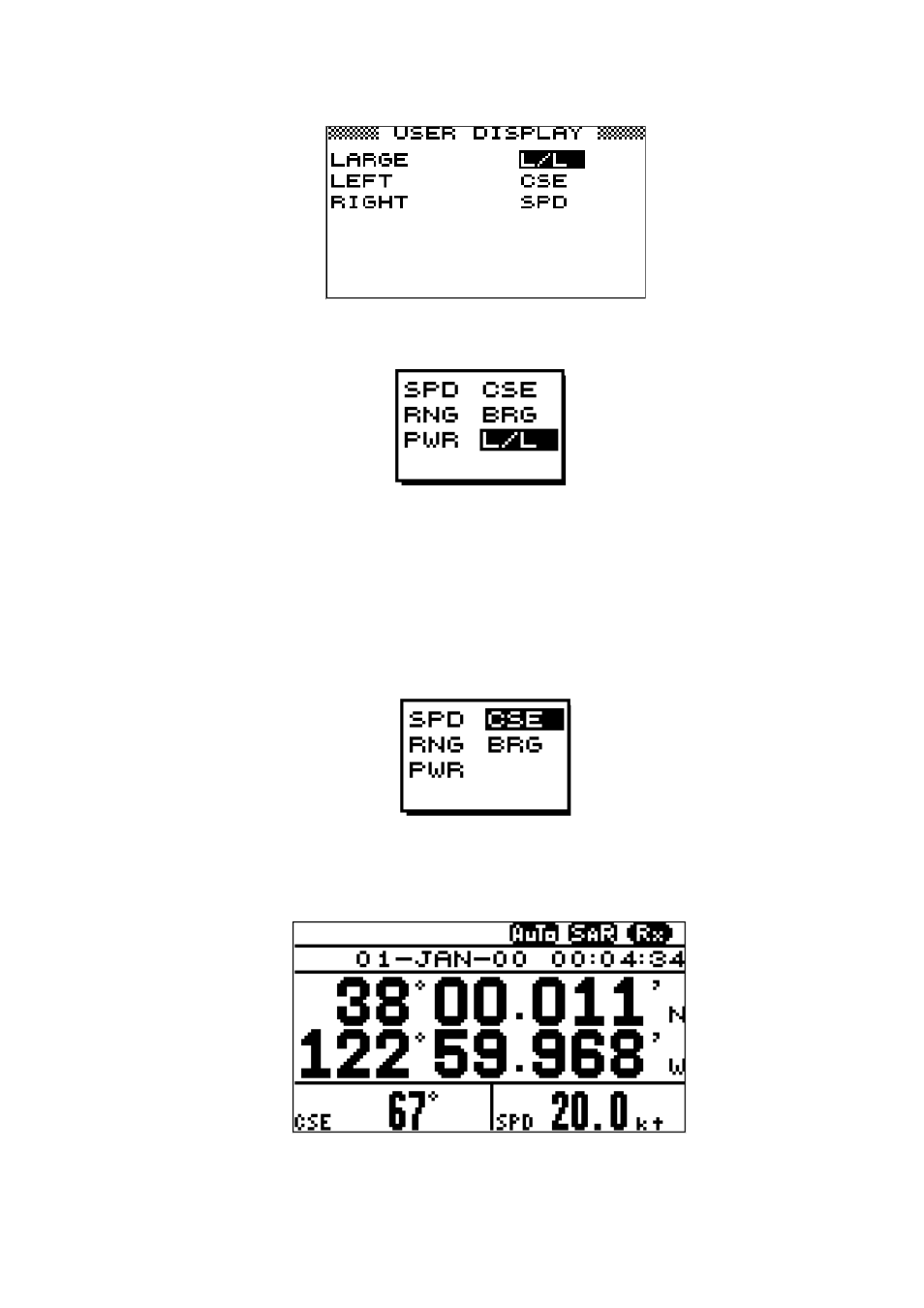

Figure 3-8 USER DISPLAY
4.
Press the [ENT] key. The following window appears.
Figure 3-9 Options for LARGE window
5.
Operate the Omnipad to select item desired. (SPD: Speed, CSE: Course, RNG: Range to
destination, BRG: Bearing to destination, PWR: Power source voltage, L/L: position in
latitude and longitude)
6.
Press the [ENT] key.
7.
Select the items LEFT and RIGHT and set their options like you did for LARGE, referring to
Figure 3-12 for location of indications.
Figure 3-10 Options for LEFT, RIGHT
8.
Press [DISP] key twice to display the navigation data.
The figure below shows display appearance for the setting shown in Figure 3-8.
Figure 3-11 Nav data display
