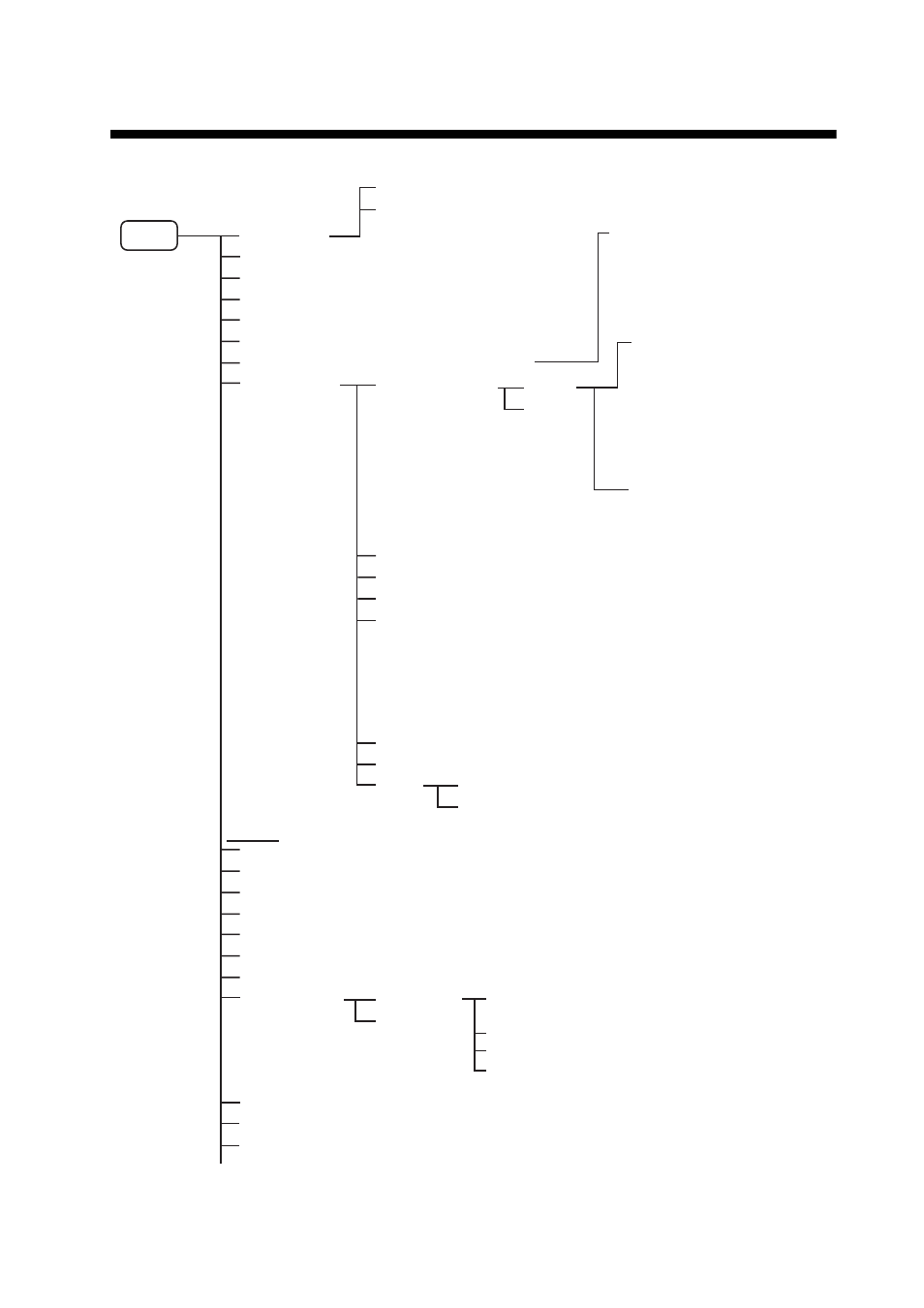

APPENDIX 1 MENU TREE
MENU
key
Ship's Time
Trip DIST*
1
(SET(000000.00 - 999999.99(NM), RESET)
Ship's Track (
Past+Predict, Past, Predict, OFF)
Plot Time (1min, 2min,
5min, 10min, 20min, 30min)
Past Tracks (
ON, OFF)
Vector Time (30s, 1min, 2min,
5min, 10min, 20min)
Display (DISP1 - DISP7, arrange displays)
Scale Set Up
Source (Internal(-13:00 - +13:00),
NAV EQUIP)
Summer Time (ON,
OFF)
Speed Graphic*
2
Depth REF (
EXT DBK, EXT DBT, INT DBT)
Direction SYM (
Arrows, Text)
SYM Location (
Left, Right)
Berthing Range (
50m (0.025NM), 75m (0.040NM),
100m (0.050NM), 150m (0.075NM),
200m (0.100NM), 250m (0.125NM),
300m (0.150NM), 400m (0.200NM),
600m (0.300NM), 800m (0.400NM),
1000m (0.500NM), Save)
Berthing Data Display (
3 axis in NAV, 3 axis and NAV, 3 axis)
CUR Direction (
Flow to, Flow from)
Mode
Wind (
True, Theoretical, Relative)
Time (
UTC, Ship's Time)
Total DIST*
1
(SET(0 - 999,999.99(NM)), RESET)
Speed Limit Alarm*
1
(SET,
40.0kn (0.00 - 40.00(kn)), OFF)
Berthing Line*
1
(
Edit, Share, Delete)
Wind Average (No Averaging,
1min, 2min, 3min, 5min, 10min)
Key Beep (
ON, OFF)
Key BRILL (1,
2, 3, 4, 5, 6, 7, 8)
Speed Select*
2
(
Forward-After, Vector)
Echo Monitor*
1
3 Way Split
12 Way Split
TX Monitor*
1
(Start)
ROT Sensor*
1
(
Internal, External ROT, External HDG)
TESTS (System TEST, Display Unit TEST, LCD TEST)
(Continued on next page)
DISP1
DISP2 -
DISP7
Astern SPD Scale
(
5kn (2.5m/s, 10km/h),
10kn (5.0m/s, 20km/h),
15kn (7.5m/s, 30km/h),
20kn (10.0m/s, 40km/h),
25kn (12.5m/s, 50km/h),
30kn (15.0m/s, 60km/h),
35kn (17.5m/s, 70km/h)
Ahead SPD Scale
(same choices as above,
25kn (12.5m/s, 50km/h)
*
1
Main display unit only
*
2
Sub display unit only
Initialize
Point 1 (
Beam 1, Beam 2, Beam 3, Ch1, Ch2,
Ch3, Ch4, Ch5, Ch6, Ch7, Ch8, Ch9)
Point 2 (Same choices as Point 1.
Beam 2)
Point 3 (Same choices as Point 1.
Beam 3)
Start
DISP 1:
Navigation
DISP 2:
Berthing H Up
DISP 3:
HDG.Speed 3-axis
DISP 4:
Trip DIST + Total DIST
DISP 5:
Main, no display, Sub,
Speed Graphic
DISP 6, DISP7:
No display
