3. BERTHING DISPLAY
3-2
3.2 Display Range
3.2.1 How to select a range
The display range is the distance between grid sides on the berthing display. Use the
RNG key to select a range. The range appears below the 3-axis speed display as
shown below. The system is pre-set with five ranges (nm): 0.025, 0.04, 0.05, 0.075
and 0.1. A total of 11 ranges are available and you can select the ranges to use from
the menu, as shown in the next section.
3.2.2 How to pre-set ranges
The berthing display has a total of 11 ranges. Select the ranges to use, following the
procedure shown below. A minimum of one range must be turned on.
1. Press the MENU/ESC key to open the menu.
2. Select [Set Up Scale] then press the ENT key.
3. Select [Range] then press the ENT key.
4. Select a range then press the ENT key. Show
“X” in a check box to select the range, or remove
the “X” to deselect the range.
5. Press T to show and select [Save] then press
the ENT key.
Note: If all ranges are turned off, the message
"No item be selected" appears. Select at least
one range.
6. Press the DISP key to close the menu.

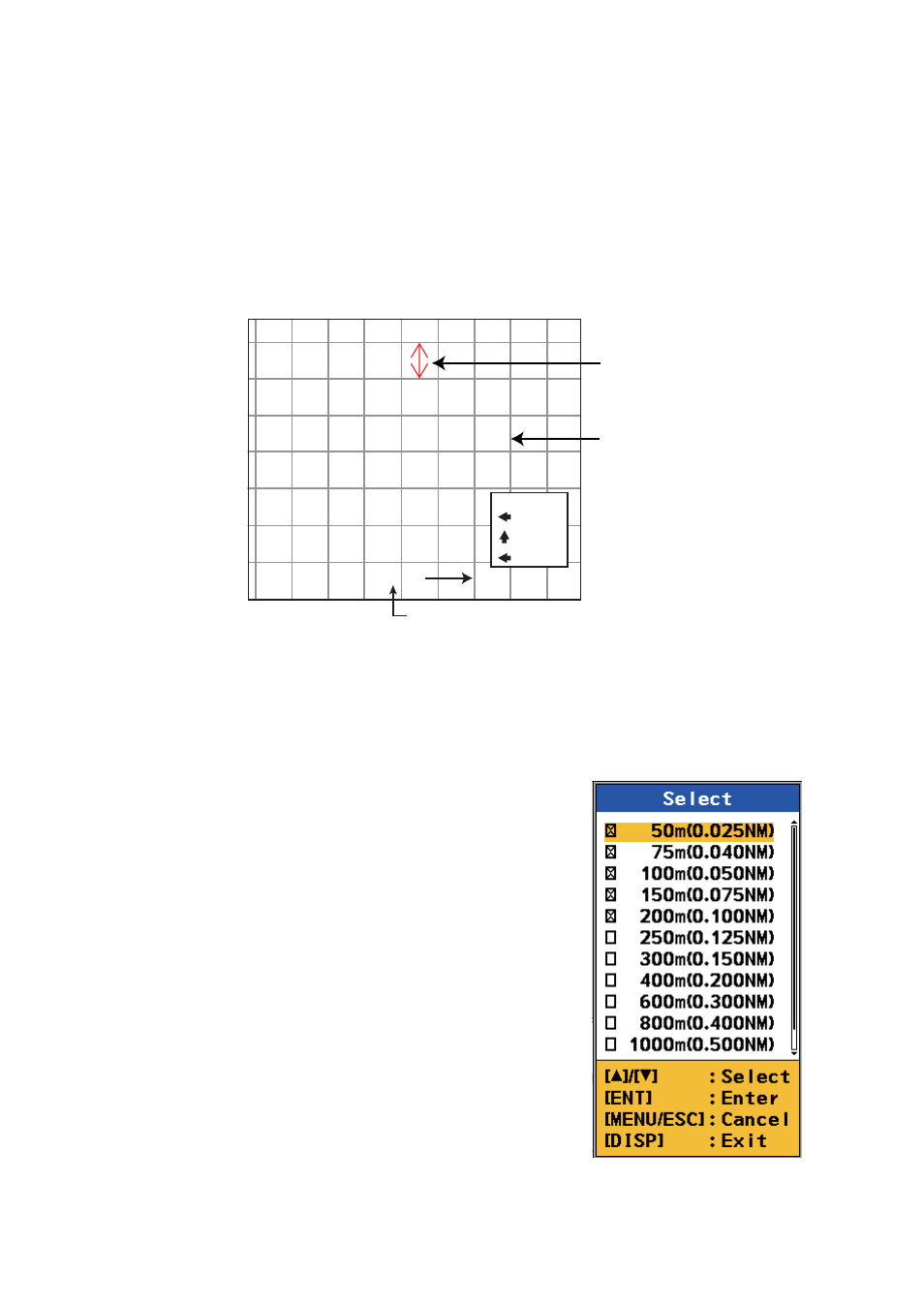

Display
range
0.050 NM/DIV H UP
0.01
12.45
0.31
SOG m/s
Grid
Set with RNG key
Range
