6. MAINTENANCE, TROUBLESHOOTING

6-6

• "REMOTE" shows the results of the connection test with the Remote Controller

and Dimmer Controller. Operate the Remote Controller and Dimmer Controller.
OK appears if an operation is completed successfully. If the results location is
blank, there is no connection or there is no operation from the remote device.

• "LCD Time" shows how many hours the LCD has been on, up to a maximum of

999,999 hours.

• "BRILL" shows the current LCD brilliance setting. Press S, T. Check that the

indication and brilliance level agree.

• "+5V" shows the voltage of the +5V circuit.
• The program number of the starter program, booter program, main program, re-

mote program and dimmer program are shown. (The program no. indication is
blank where no equipment is not connected.)

The rectangles on the screen are for testing the controls of the Display Unit,
Remote Controller and Dimmer Controller. Press any key except the PWR and
DISP keys. The key’s on-screen rectangle fills in red if the key is normal. Press
the key again and the red fill is removed.

5. Press the DISP key to test the Distributor Unit DS-610.

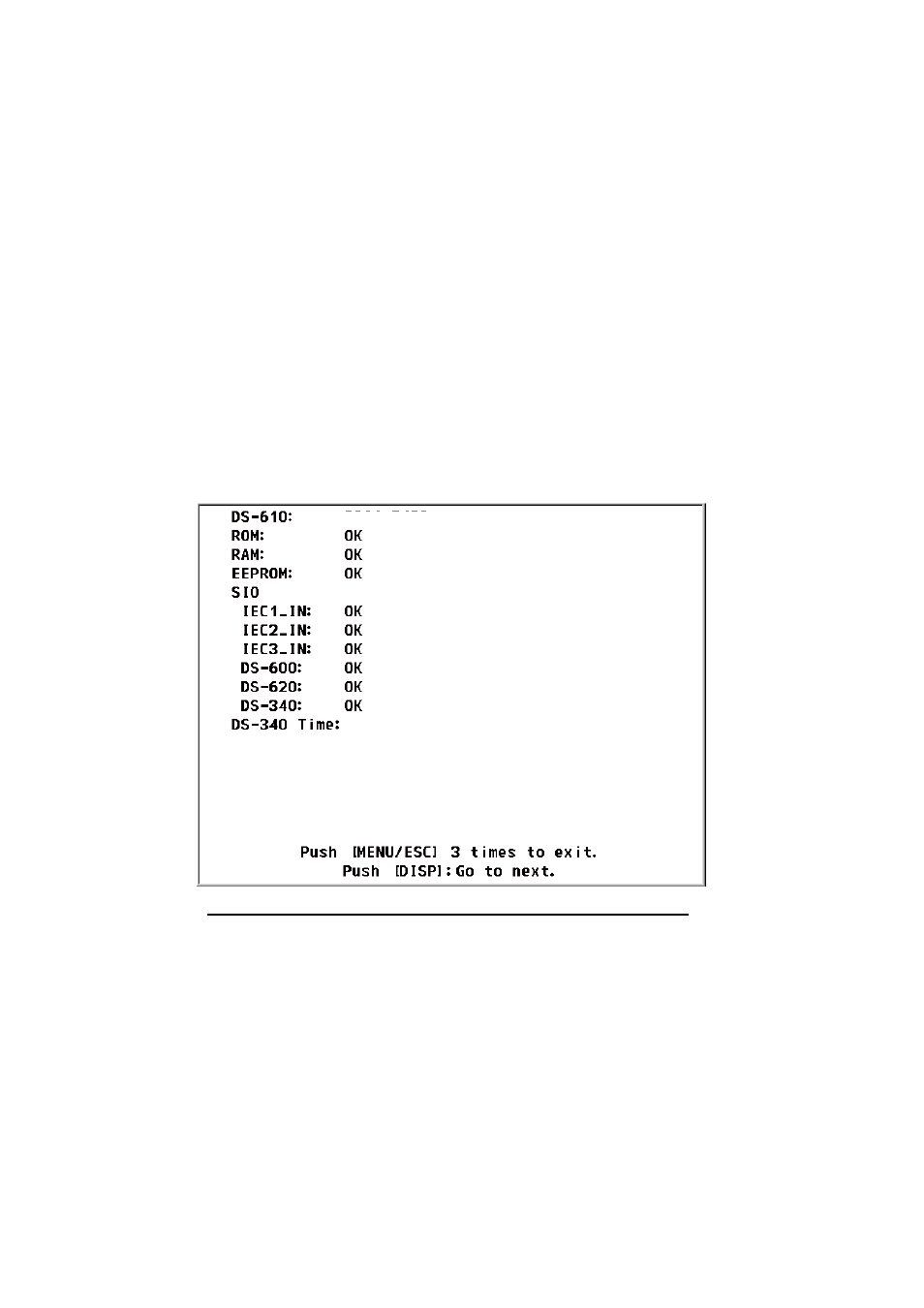

Description of test results for the Distributor Unit DS-610

• The results of the ROM, RAM and EEPROM check are shown as OK or NG.

For any NG, reset the power and try the test again. If the NG condition contin-
ues, contact your dealer for instruction.

• The input signals connected to the input ports IEC1 - IEC3 are checked and the

results are shown as OK for normal, or no indication if there is no connection.

• The items DS-600, DS-620 and DS-340 show the results of the connection tests

between those units and the DS-610. OK for normal, or no indication for error.

• "DS-340 Time" shows the number of hours that the Rate-of-Turn Gyro DS-340

has been powered. The maximum time is 999,999 hours. No indication if there
is no connection.

• The program number of the starter program, booter program, main program

and FPGA program are shown.

7hr

STARTER PROG No. 6652100-xx.xx

BOOTER PROG No. 6652101-xx.xx

MAIN PROG No.

6652102-xx.xx

FPGA PROG No.

6652103-xx.xx
