4.1 Mounting Requirements
C141-E234 4-7
(6) Service clearance area

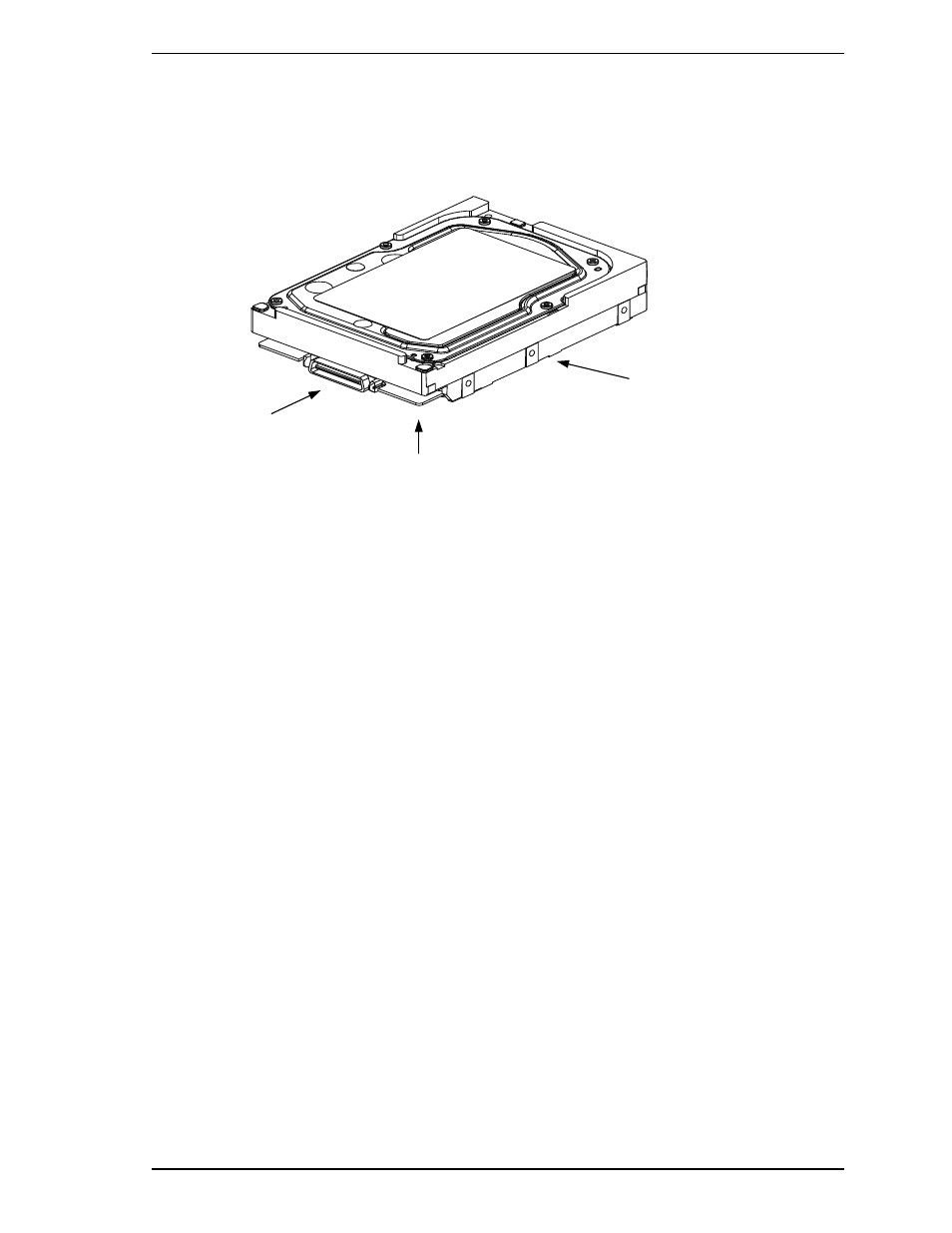

The service clearance area, or the sides which must allow access to the HDD for installation or
maintenance, is shown in Figure 4.6.
[Surface Q]
• Hole for mounting screw
[Surface R]
• Hole for mounting screw
[Surface P]
• Cable connection
Figure 4.6 Service clearance area
(7)
Environmental magnetic field
Do not install the HDD in the vicinity of equipment giving off strong magnetic fields, such as
monitors, televisions, or loudspeakers.
(8)
Leakage magnetic flux
The HDD uses a high performance magnet to achieve a high speed seek. Therefore, a leak magnetic
flux at surface of the HDD is large. Mount the HDD so that the leak magnetic flux does not affect to
near equipment.
