Installation Requirements
4-4
C141-E234
(1) Mounting
screw
Use
#6-32UNC.
(2)
Mounting frame structure
Special attention must be given to mount the HDD disk enclosure (DE) as follows.
a)
Use the frame with an embossed structure, or the like. Mount the HDD with making a gap
of 2.5 mm or more between the HDD and the frame of the system.
b)
As shown in Figure 4.3, the inward projection of the screw from the HDD frame wall at the
corner must be 5.0 mm or less.
c) Tightening torque of screw must be secured with 0.59N·m (6kgf·cm)
±12%.
d)
Impact caused by the electric screwdriver must be within the device specifications.
e)
Must be handled on an anti-static mat.
5.0 or less
5.0 or less

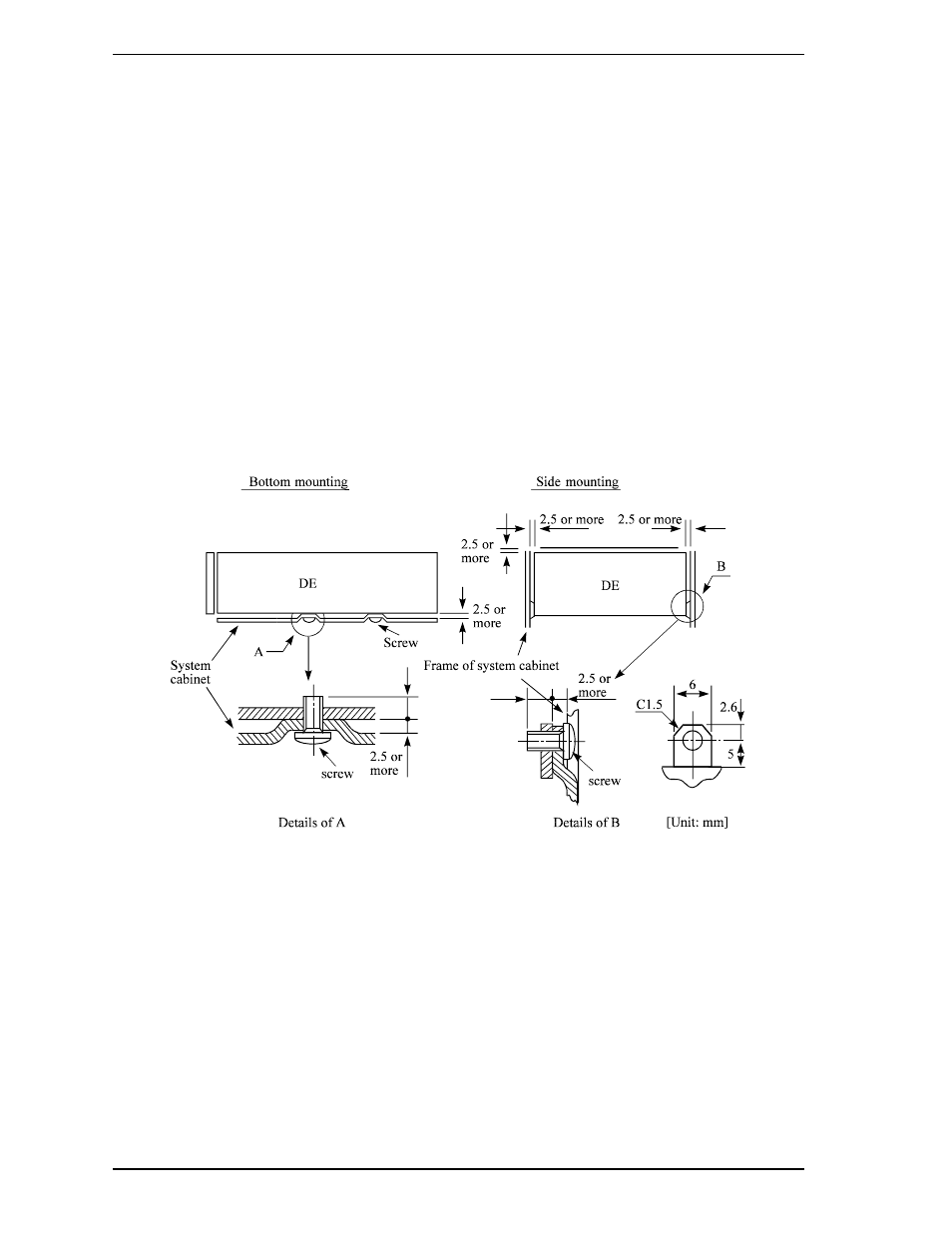

Figure 4.3
Mounting frame structure
