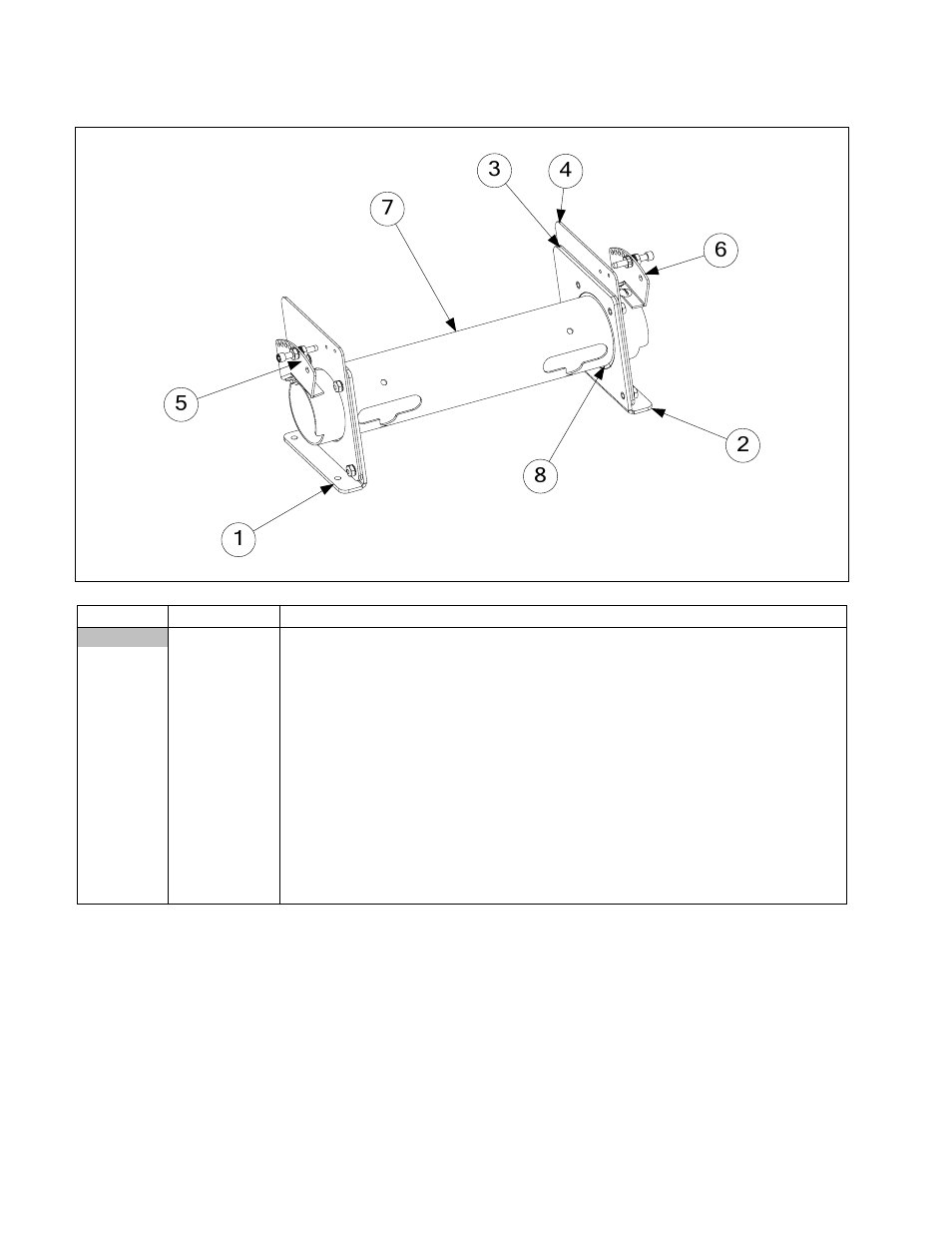

2.6.2 Element Tube Assemblies
ITEM PART # COMPONENT
106-7653SP
Tube Assembly RE Element, Full-Vat
1 106-5329 Bracket Assembly, LH Element Tube Support
2 106-5330 Bracket Assembly, RH Element Tube Support
3 220-0122 Plate, Element Tube Support Inner
4 220-0123 Plate, Element Tube Support Outer
5 106-7651 Bracket Assembly, LH Upper Spring (use 106-6569 for 17kW)
6 106-7652 Bracket Assembly, RH Upper Spring (use 106-6570 for 17kW)
7 810-2992 Tube, FV Element Mounting
8 810-2993 Bushing, Tube End Teflon
9 809-0766 Nut, 10-32 Hex HD SS
* 106-6587 Magnetic Position Sensor Assembly
* 106-6588 Magnetic Position Sensor Assembly with Bracket
* 810-3007 Magnet
* 230-0794 Bracket, Magnetic Position Sensor Wire
* Not illustrated.
