● 1 - 3

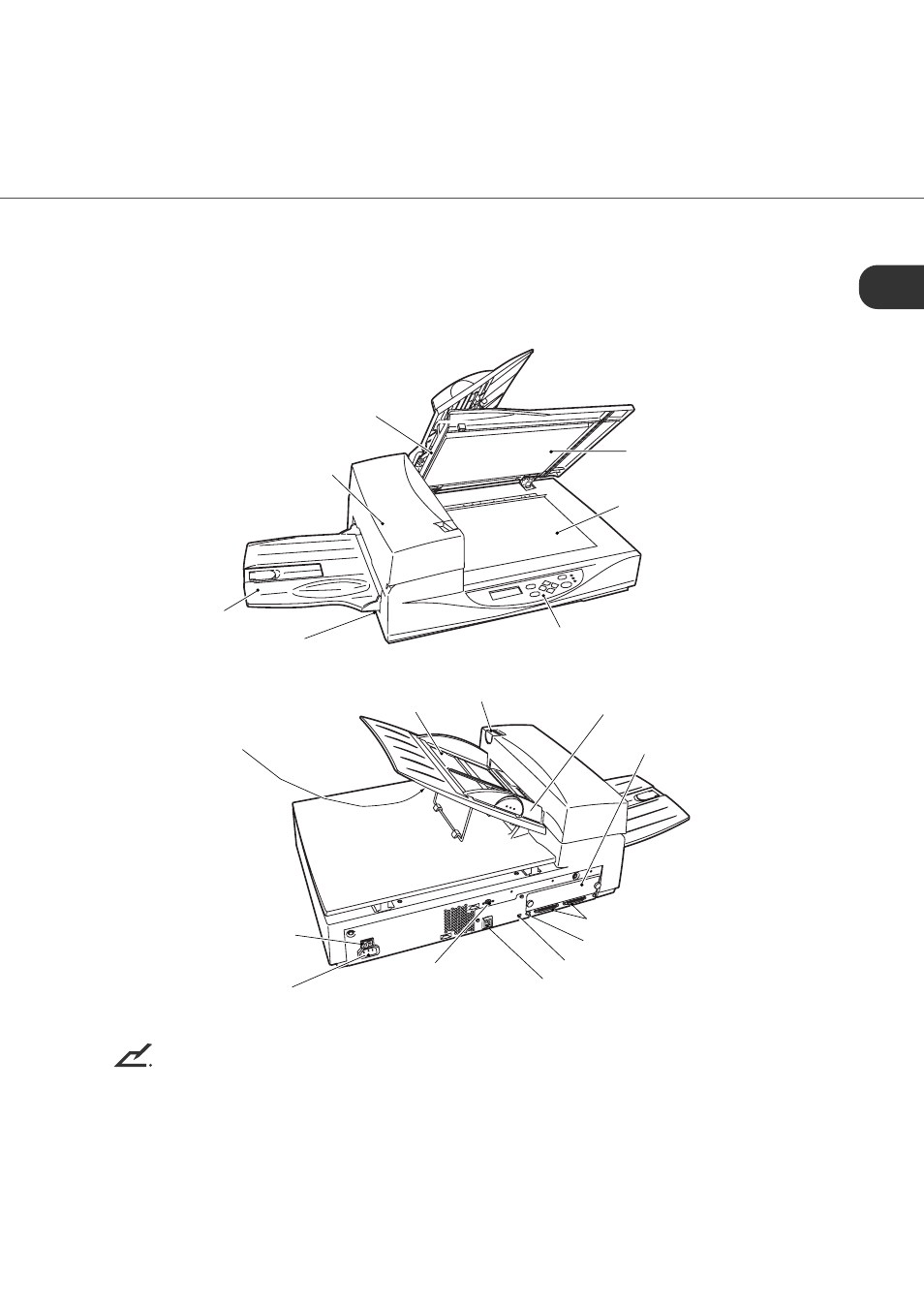

This section shows the exterior view and assemblies of the scanner. This section also provides the name
of each part and describes its functions.

■ Units

NOTICE

The Shipping lock should be switched to the operating position when the scanner is to be used. Refer to
Chapter2 "Placing the Shipping lock (page 2-3)" for details.

(3)Document holding pad

(2)Document bed

(1)Document cover

(4)Automatic document

feeder(ADF)

(6)Operator panel

(5)Stacker

(7)Shipping lock

(9)ADF lever

(18)Side guide

(16)Third party slot

(Option board Slot)

(8)ADF paper chute

(10)Power switch

(11)Power Inlet

(15)SCSI Interface connector

(12)EXT connector

(17)Spare Pad ASSY

(14)SCSI ID switch

(13)SCSI terminator switch

(19)USB Interface connector

Units and Assemblies
