25
Installation instructions
3-wire connections
For use where local codes permit grounding through the Neutral wire.
Use approved 3-wire Power Supply Cord or a 3-wire Cable for Direct Wiring as described on
page 23.

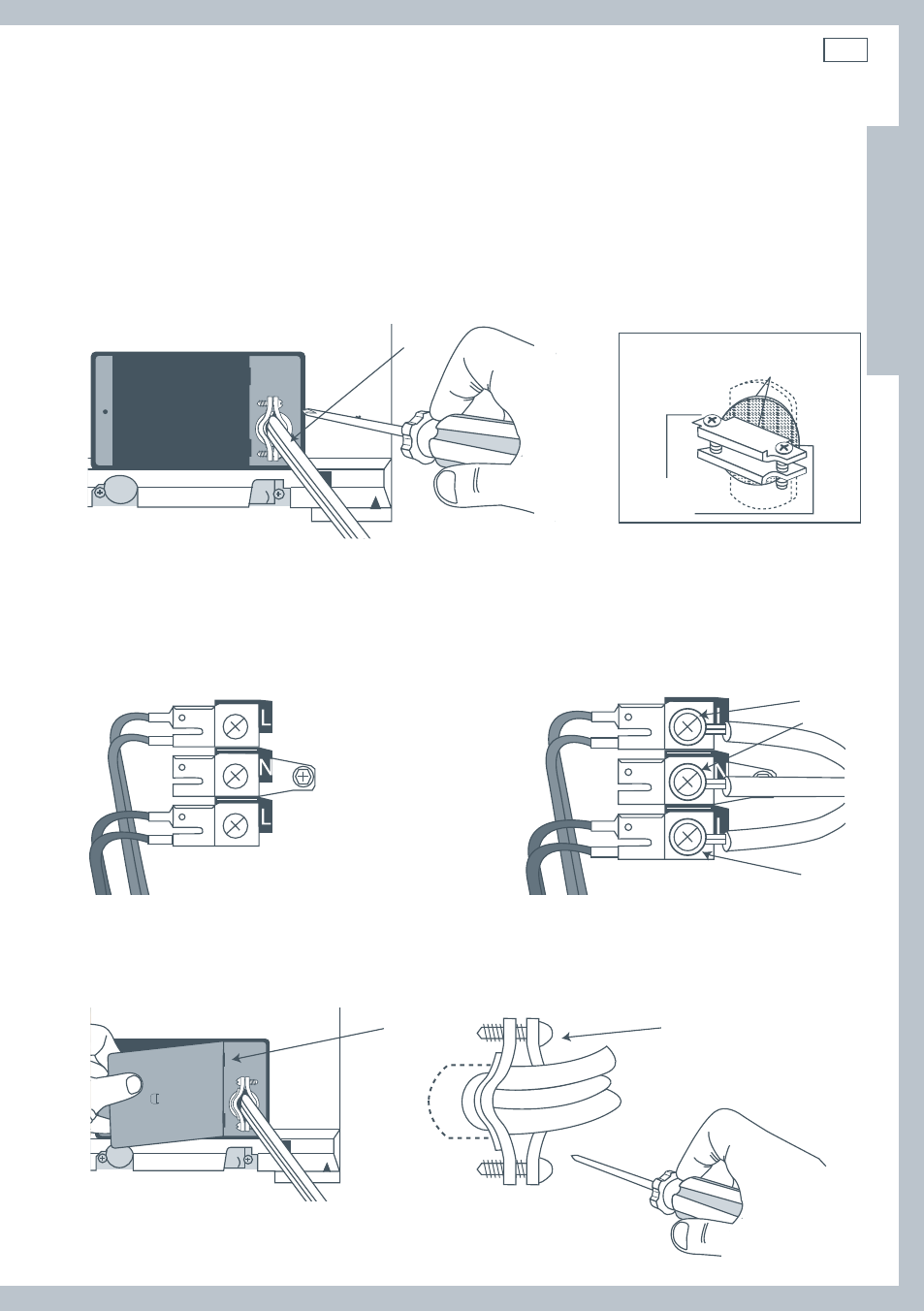

1 Remove the terminal block cover plate.
2 Insert the power cord with a UL listed strain relief through the hole provided in the cabinet near
the terminal block. Do not tighten strain relief screw until wiring connections are complete.
Note: a strain relief must be used.
2
strain relief
clamp sections
strain relief
screws
Fig.23 Inserting the power cord
3 Loosen or remove the center terminal block screw. Connect the neutral wire (center) of the
power supply cord to the center terminal screw of the terminal block. Tighten screw.
4 Connect the other wires to the upper and lower terminal block screws marked with the letter L.
Tighten screws.
4
3
4
Fig.24 Connecting the wires
5 Refit terminal block cover by inserting the two tabs first on the rear panel of the dryer. Secure
cover with securing screw.
6 Tighten strain relief screws.
5 6
Fig.26 Tightening strain relief screws Fig.25 Refitting terminal block cover
EN
