PARTS LISTS 6-4 Manual 0-2871

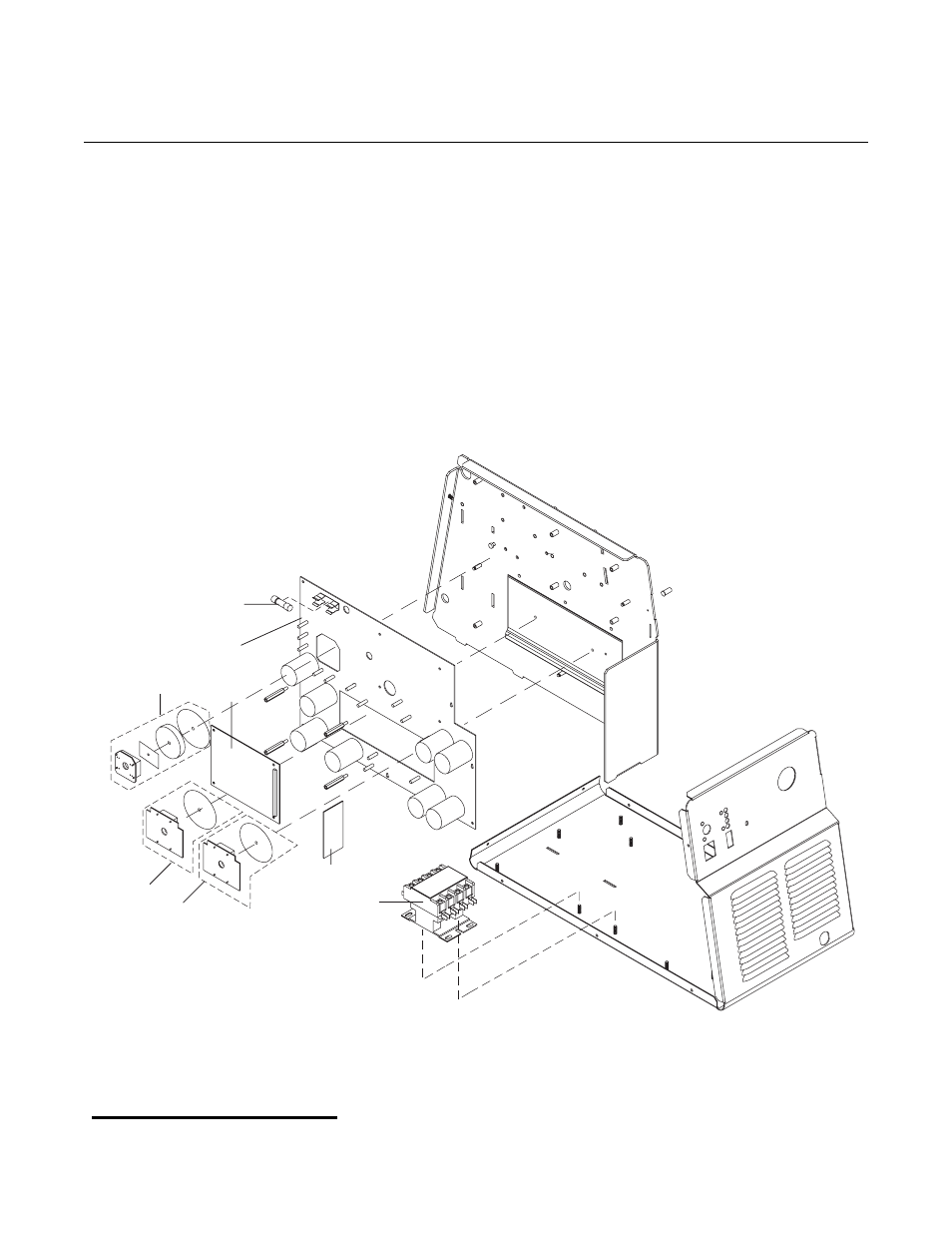

6.05 Left Side Internal Replacement Parts
Item # Qty Description Ref Catalog #
1 1 Fuse F1 9-8588
2 Main Input Contactor W1 9-8587
3 1 Connector PCB 9-8576
4 1 PCB Assembly, Logic 9-8597
5 1 PCB Assembly Kit, IGBT Circuit 9-8578
Round Thermal Pad
6 1 PCB Assembly Kit, Input Diode 9-8579
Rectangular Thermal Pad
Solid Disk
Round Thermal Pad
7 1 PCB Assembly, Main Power 9-8594
NOTE
Illustration may vary slightly from unit.
