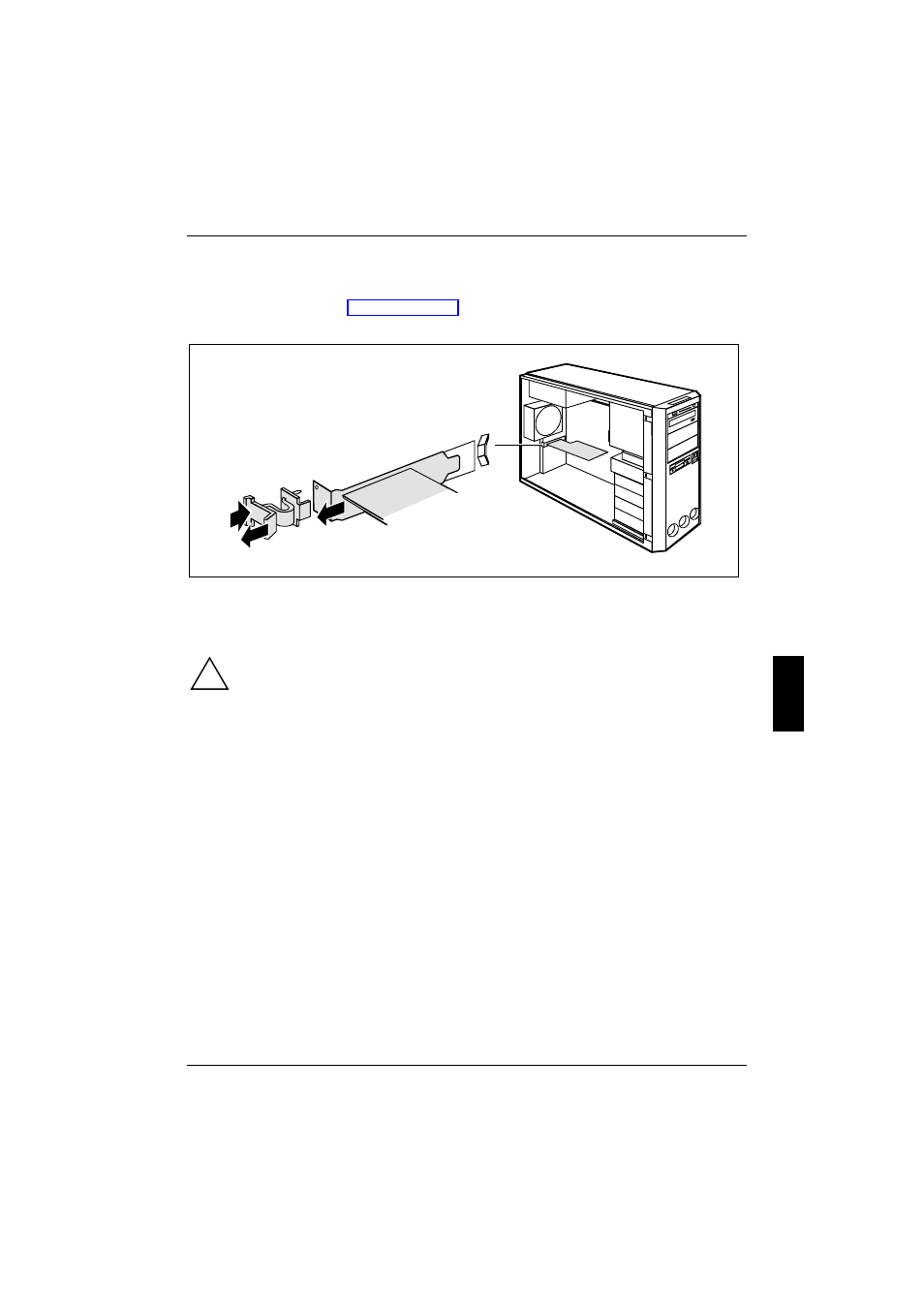

Removing board with clips

►

Open the casing (see "Opening the casing" chapter).

►

Disconnect the cables connected to the board.

3

1

2

►

Press the clip in the direction of the arrow (1) and unhook it.

►

Pull off the clip (2).

►

Remove the board from the casing (3).

!

For cooling, protection against fire, and in order to comply with EMC (electromagnetic

compatibility) regulations, you must refit the cover plate.
