System expansions
A26361-K680-Z122-1-7619, Edition 1
53
►
Insert the appropriate ports frame for the USB or USB audio ports into the front panel.
i
The USB interface and the USB-audio interface each have a separate interface frame.
►
Attach the front panel (see "Attaching the front panel" chapter).
►
Close the casing (see "Closing the casing" chapter).
Removing front USB or USB audio ports
►
Open the casing (see "Opening the casing" chapter).
►
Remove the front (see "Removing the front panel" chapter).
►
Detach the USB data cable and, if present, the audio data cable from the mainboard (see the
technical manual for the mainboard).
►
Pull the cables from the floppy disk drive.
1
2
►

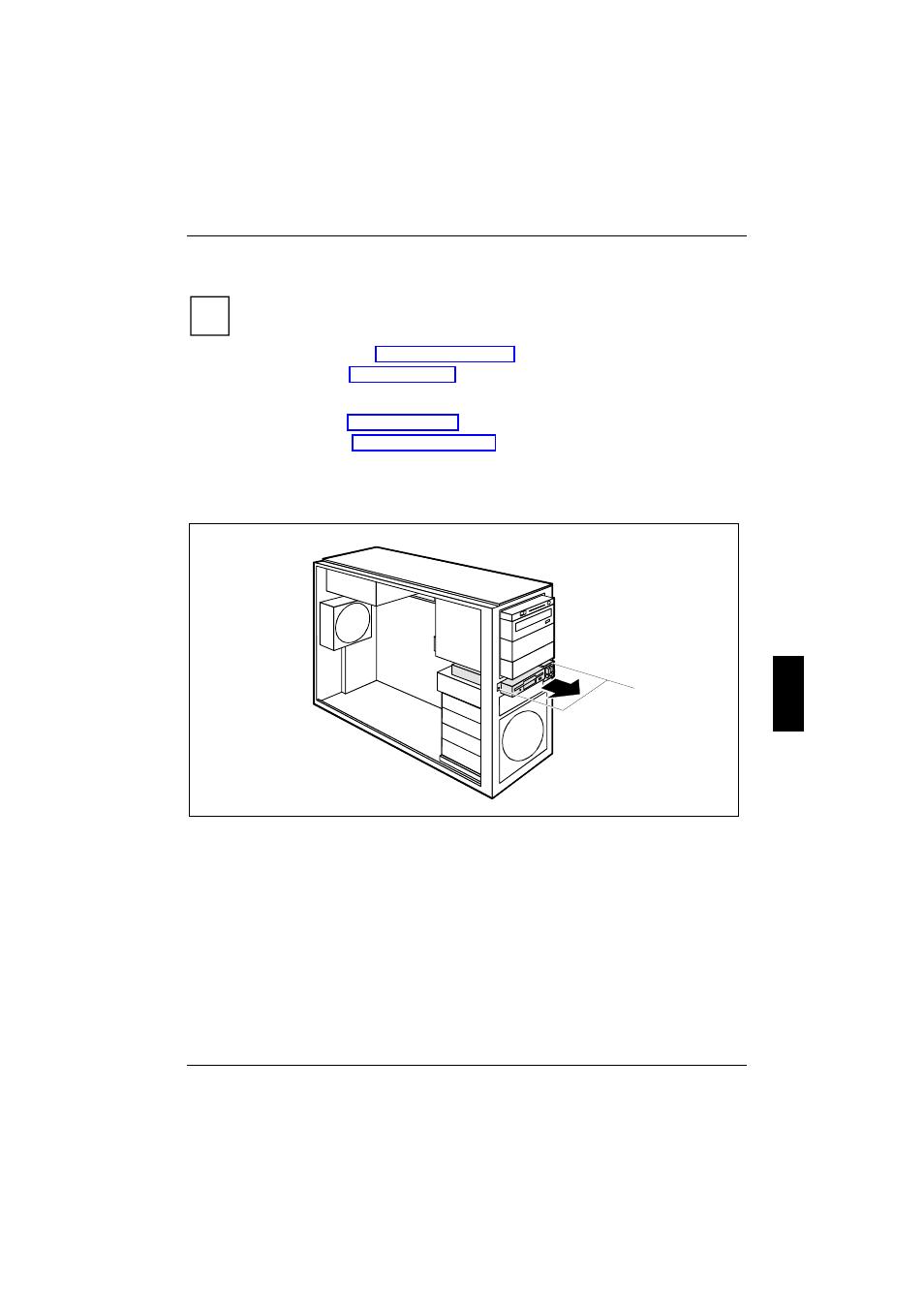

Loosen the screws (1).
►
Pull the slide-in module out of the casing (2).
