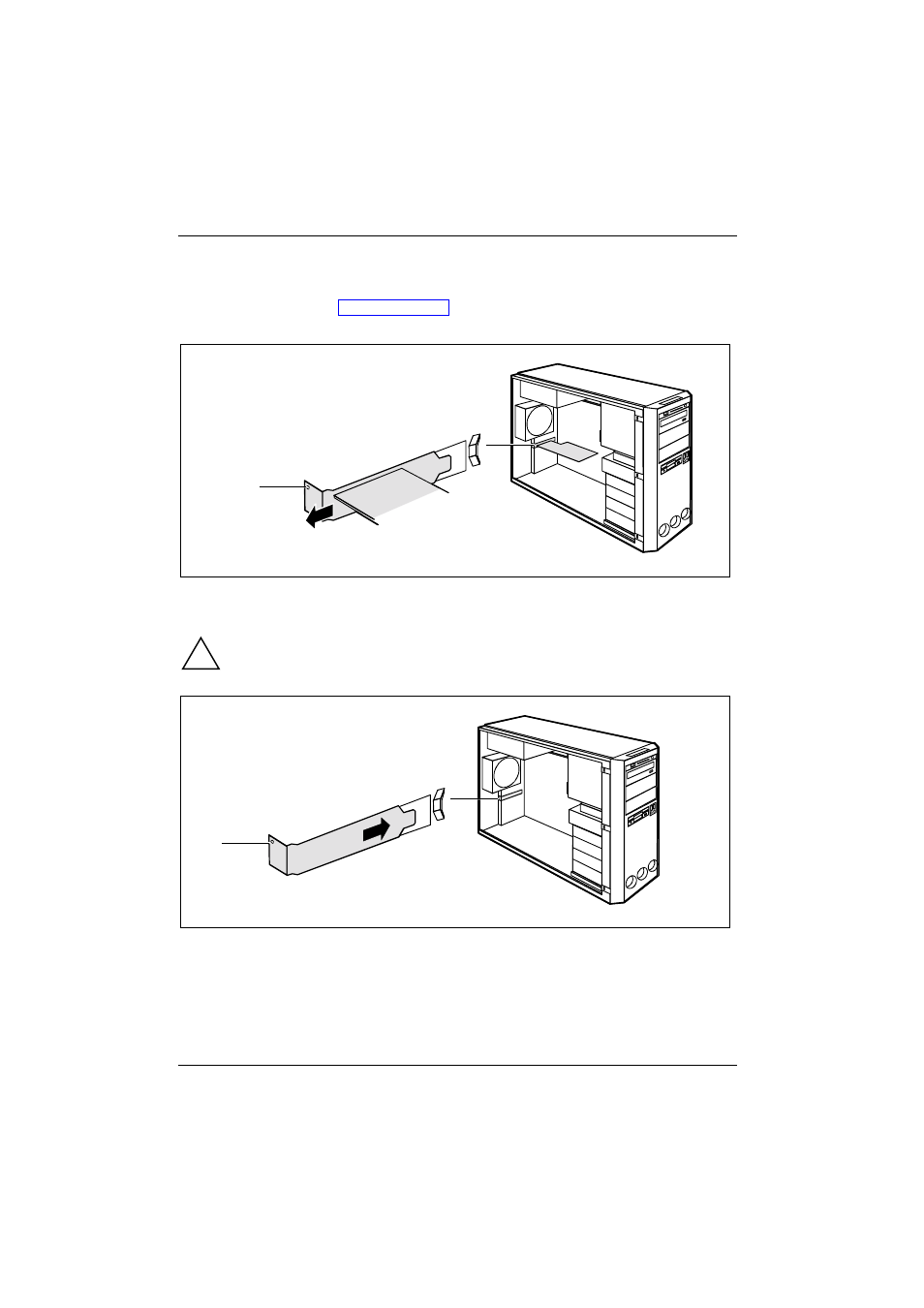

Removing board with screw

►

Open the casing (see "Opening the casing" chapter).

►

Disconnect the cables connected to the board.

►

Loosen the screw (1).

►

Remove the board from the casing (2).

For cooling, protection against fire, and in order to comply with EMC (electromagnetic

compatibility) regulations, you must refit the cover plate.

►

Push the rear slot cover plate into the slot (1). Ensure that the point of the cover engages on

the outside of the casing.

►

Fasten the rear slot cover plate with the screw (2).
